Servo Motor Liquid Silicone Rubber Injection Molding Machine For Pacifier

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : Standard plywood case or based on the detailed request of our client Delivery Time : 60 work days
Payment Terms : T/T, L/C, Western Union Supply Ability : 10000sets/year
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: W4545

Detail Information

Injection Pressure: 700kg/cm2 Ejection Force: 4.3T
Injection Rate: 30g/s Ejection Stroke: 150mm
Pump Pressure: 21Mpa Motor Power: 12.1KW
Clamping Force: 130T
High Light:

lsr injection molding

,

precision injection molding

Product Description

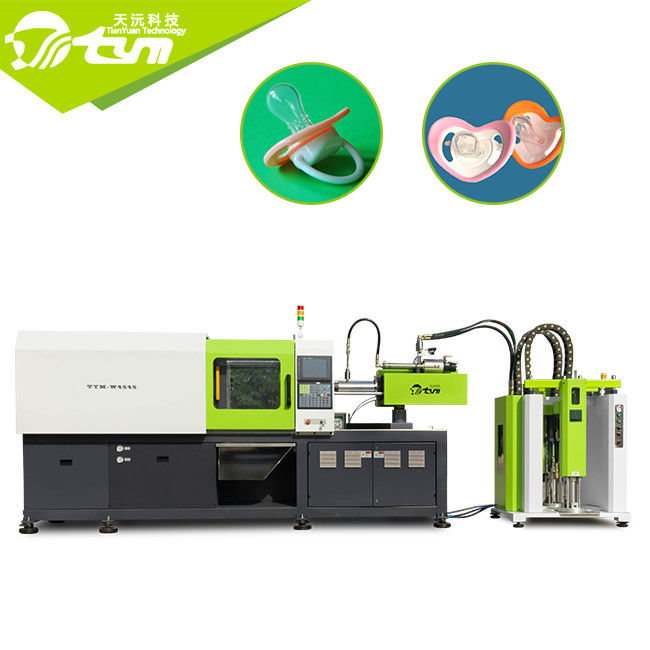

Liquid Silicone Rubber Injection Molding Machine For Pacifier



TYM Liquid Silicone Rubber Injection Molding machine made of servo motor, power saving and high level of automation.It can achieve the automatic production for baby pacifier.



Servo Motor Liquid Silicone Rubber Injection Molding Machine For Pacifier 0









Product Features



A. Newly-optimized integrated all-in-one design.

B. Meet multiple requirements on the automatic manufacturing technique for LSR products.

C. Shorter the mould closing and opening time, improve the production efficiency.

D. Remote control function.

E. Multi-section mould closing and opening and injection, speed adjusting stepless.



Machine Model Shot Volume

Injection

Rate

Injection

Pressure

Clamping

Force

Opening Stroke Tie-Bars Space Ejection Force Machine Weight Motor Power
TYM-L5058 165g 30g/s 700kg/cm2 130T 250-550MM 500*580MM 4.3T 5.3T 12.1kw
TYM-L6068 300g 30g/s 700kg/cm2 130T 250-550MM 600*680MM 4.3T 5.5T 12.1kw
TYM-W4545 165g 30g/s 700kg/cm2 130T 200-700MM 450*450MM 4.3T 5.2T 12.1kw
TYM-W5050 300g 30g/s 700kg/cm2 130T 200-700MM 500*500MM 4.3T 5.3T 12.1kw



Servo Motor Liquid Silicone Rubber Injection Molding Machine For Pacifier 1

About TYM

Guangzhou Tianyuan Silicone Machine Technology Co., Ltd. is established in 2002, which specializes in designing and manufacturing the LSR automatic injection molding machine as well as the LSR mold, we mastered the core technology, the quality is excellent! Our production technology is in the leading level in China; we adopt the advanced integration design on our LSR machine, and can supply personalized solutions for the customer. It is more energy-efficient, easy to operate, the production speed is high. TYM LSR machine is your best choice for saving the production cost when you choose a machine.





Servo Motor Liquid Silicone Rubber Injection Molding Machine For Pacifier 2



Applications

Our LSR injection molding machine is widely used in medical industry, food industry, infant industry, diving industry, insulator industry and other LSR production field. Furthermore, with abundant technical strength,Tianyuan can design the LSR injection molding equipment exactly based on the customer's requirements, and can provide the turn-key solutions, such as the LSR feeding machine, LSR injection molding machine, LSR mixing system, color adding system, LSR mould and so on.

Servo Motor Liquid Silicone Rubber Injection Molding Machine For Pacifier 3











Certificate



TYM have More than 60 patents , 12 invention patents, it is rated as a national high-tech enterprise in 2013 .

Servo Motor Liquid Silicone Rubber Injection Molding Machine For Pacifier 4





Our Services



Pre-sale service

According to customer's investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving and provide matched mold scheme and recommend suitable machine according to customer's product.



On-purchase service

Enable the relevant personnel to be familiar with the operation of the TYM's machinery and understanding the machine maintenance.

1) Installation of LSR machine and new machine commissioning service

2) Machine operator training

3) Training of relevant technicians



After-sales service

1) Free training till relevant personnel is able to operate and maintain independently

2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for site instruction

3) TYM will provide technical guidance for free if customer need new equipment or expand(rebuild)

4) TYM will give priority to customer according to customer's upgraded demand when TYM's equipment is upgraded.
