Liquid Rubber Silicone Injection Molding Machine Clamping Force 130 T

Minimum Order Quantity : >1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 50 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE/ISO Model Number: TYM-5058

Detail Information

Type: Vertical Certification: CE/ISO
Product Name: Liquid Silicone Rubber Injection Molding Material: Liquid Silicone Rubber
Warranty: 1 Year Power(w): 12.1kw
Color: Green
High Light:

high speed injection molding

,

precision injection molding

Product Description

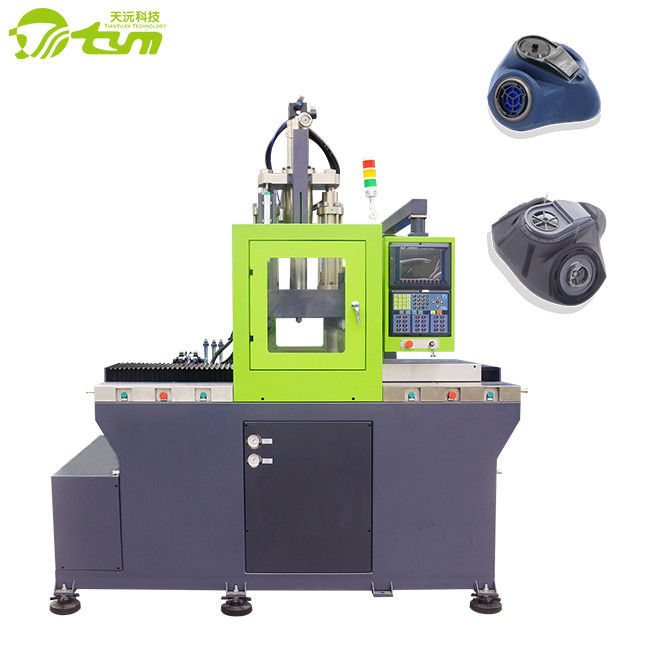

Liquid Rubber Silicone Injection Molding Machine Clamping Force 130 T







Machine Model Parameter

TYM-L5058 Vertical LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 130 T
Opening Stroke 250-550 mm
Tie-Bars Pace 500*580 mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 12.1 KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 6 T
Machine Dimension 2.5*1.6*3.6 m





Liquid Rubber Silicone Injection Molding Machine Clamping Force 130 T 0
