Energy Saving Liquid Silicone Rubber Injection Moulding For Protective S / M / L Sizes

Minimum Order Quantity : 1 set Price : USD49999-47999 per set
Packaging Details : Plastic Film Delivery Time : 30 days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 10 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L6068

Detail Information

Products Name: TYM Liquid Silicone Rubber Injection Molding For Protective S/M/L Sizes Tie-bar Space: 600x680mm
Clamping Force: 130T Machine Weight: 3.9T
High Light:

high speed injection molding


precision injection molding

Product Description

     TYM Liquid Silicone Rubber Injection Molding For Protective S/M/L Sizes


 LSR 2-Shot technology allows manufacturers to incorporate multiple functions, materials, and components into a single permanently fused part. LSR 2-Shot Injection Molding appeals to businesses that are seeking the following advantages:

     Lower initial investment because it requires one tool to produce the component
     Reduced inspection and quality control processes for both tool and product

     The ability to take advantage of the best qualities of each material

     Reduction or elimination of the need for post-molding assembly.
The two shot process works well for parts with complicated geometry, thickness consistency requirements, and tight tolerances. Manufacturers that need to execute complex designs, part weight optimization, or integrate multiple materials or multiple functions into one component will find this technique appealin

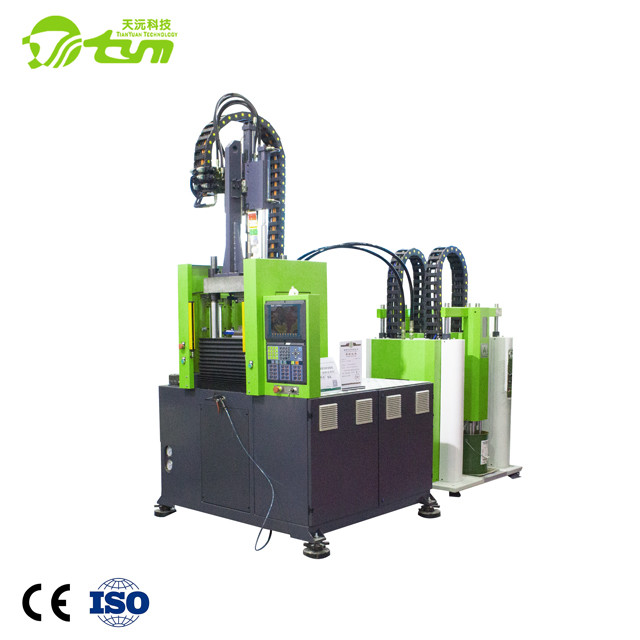

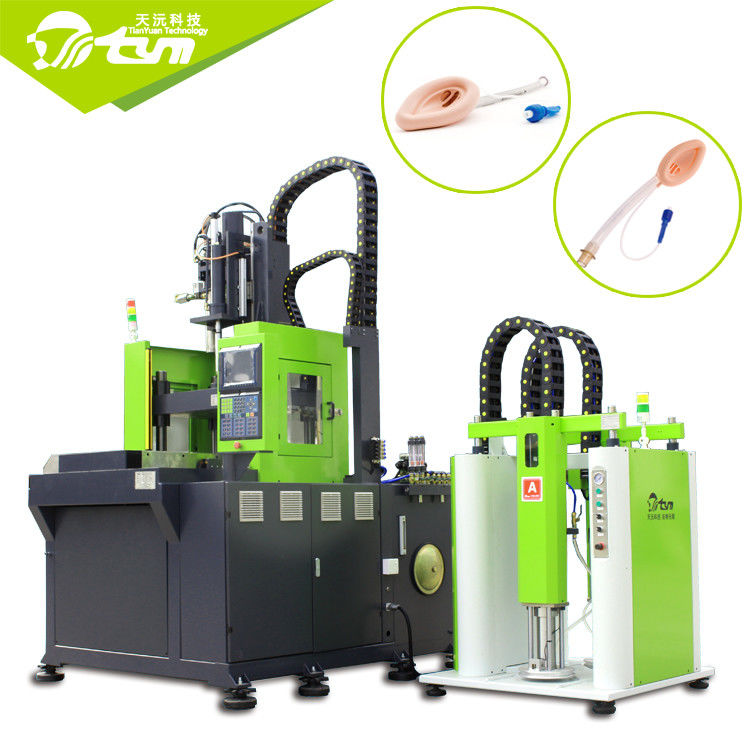

The main feature of the vertical LSR molding machine:

A. Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster

and steadier.

B. Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.

C. Meet the requirements on multi-station production.

D. High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.

Injection Unit Shot Volume g 6 165 165 300
Injection Rate g/s 30 30 30 30
Injection Pressure Kg/cm2 700 700 700 700
Clamping Unit Clamping Force T 50 95 130 150
Opening Stroke mm 100-400 250-550 250-550 250-550
Tie-Bars Space mm 240*280 400*480 500*580 600*680
Ejection Force T 4.3 4.3 4.3 4.3
Ejection Stroke mm 150 150 150 150
Pump Pressure Mpa 21 21 21 21
Others Motor Power KW 12.1 12.1 12.1 21
Machine Weight T 2.2 4.7 5.3 5.5
Machine Dimension m 1.4*1.5*3.15 2.2*1.5*3.4 2.5*1.6*3.4 2.7*1.7*3.4


    The Double-Sliding Board vertical LSR machine for the applicable scope:

1) The LSR product is volume-produce, difficult to demould, and will use two moulds to work which will improve productivity.

2) Liquid silicone products, which can with the insert, as like the plastic part, steel part etc. As sample:  electric silicone drum Stick, silicone handle, silicone vibrators etc..

3) Liquid silicone medical part, as like the capsule,  protective mast, catheter, balloon, medical belt etc.

4) Silicone high-voltage cable accessories,

5) Electronics and industrial product, such as the watchband, mobile phone case, silicone earplug ,valve, O-ring, sealing part, auto parts more.

6) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.


Our service

Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the

production process!


The professional service from TYM
Pre -sale service

* Provide investment budget and plant planning;

* Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

* Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

* After product upgrading, the upgrading work of previous users shall be given priority as required;
