Liquid Silicone Rubber Injection Molding Machine for silicone baby products

Minimum Order Quantity : »1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 100 set year
Place of Origin: China Brand Name: TYM
Certification: CE/ISO9001 Model Number: TYM4545

Detail Information

Product Name: Liquid Silicone Rubber Injection Molding Machine For Silicone Baby Products Tie-Bars Space: 450*450mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support Clamping Force: 130T
Opening Stroke: 200-700mm Injection Pressure: 700kg/cm2
High Light:

baby milk bottle making machine

,

hi tech injection moulding machine

Product Description

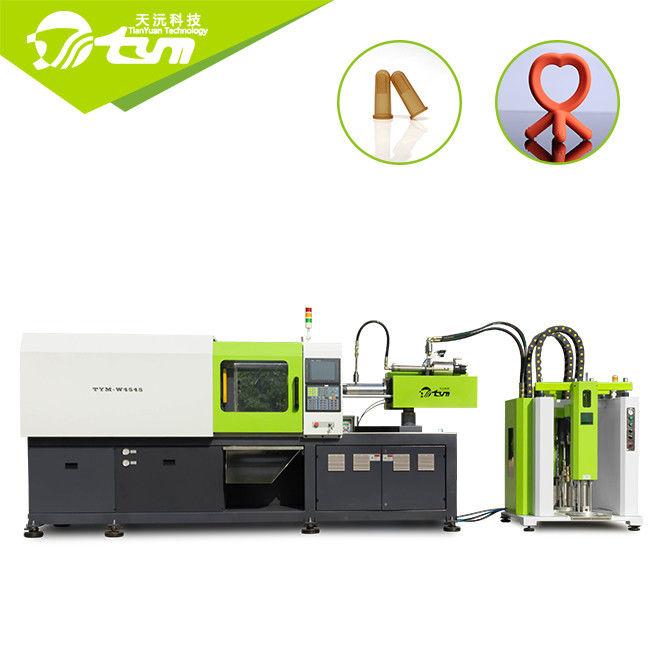

Liquid Silicone Rubber Injection Molding Machine For Silicone Baby Products

The liquid silica gel is the injection molding of runner type, the transparency and tear strength of the product will be better; the product flash is less.

Besides, Product of solid silicone would not have better about the transparency and tear resistance.

Machine Model Parameter


Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-W4545 148g 30g/s 700kg/cm2 130T 200-700mm 450*450mm 4.3T 150mm 21Mpa 5.2T 12.1KW 4.0*1.2*1.9m
TYM-W5050 270g 30g/s 700kg/cm2 150T 200-700mm 500*500mm 4.3T 150mm 21Mpa 5.3T 12.1KW 4.2*1.4*1.9m
TYM-W5555 270g 30g/s 700kg/cm2 160T 200-700mm 550*550mm 4.3T 150mm 21Mpa 5.6T 12.1KW 4.5*1.6*2.0m


Liquid Silicone Rubber  Injection Molding Machine for silicone baby products 0
Liquid Silicone Rubber  Injection Molding Machine for silicone baby products 1

The main feature of the horizontal Liquid Injection Molding Machine :
1,Direct pressure injection barrel-high precision,portable, easy to change and clean.
2,1:1 quantitative cylinder, The output ratio error of glue A and B is within 1%.
3,Static+dynamic mixer to mix the material and color more thoroughly.
4,Digital control slurry pump,accuracy up to 0.01g
5,The servo system-is 12.1KW, energy-saving 60%



Pre -sale service *Provide investment budget and plant planning;
*Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service *Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service *Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
*After product upgrading, the upgrading work of previous users shall be given priority as required;

Our Service & Advantages:
1. Reply your enquiry in 24 working hours.
2. More than 17 years experience to LSR injection molding machine in China.
3. Tianyuan can design the LSR injection molding equipment according to the customer's requirements, provide a whole set of solutions for the LSR equipments.
4. Our LSR injection molding machine is widely used in medical industry, food industry, infant industry , diving industry, insulator industry and other LSR production field.
5. According to the high quality, precise and reliable of the LSR injection molding machine, we help the customer to produce the refined LSR products and price ratio is in high performance in the LSR industry.
6. Welcome OEM and ODM.
