500 X 580mm Liquid Silicone Injection Molding Machine Stable Foley Catheter Equipment

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Plastic Film Delivery Time : 30 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union Supply Ability : 20 Sets per Month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L5058

Detail Information

Opening Stroke: 250-550mm Product Name: 500 X 580mm Liquid Silicone Injection Molding Machine Stable Foley Catheter Equipment
Clamping Force: 130T Injection Rate: 30gls
Tie-bar Space: 500x580mm Shot Volume: 165g
High Light:

foley catheter equipment

,

catheterization equipment

Product Description

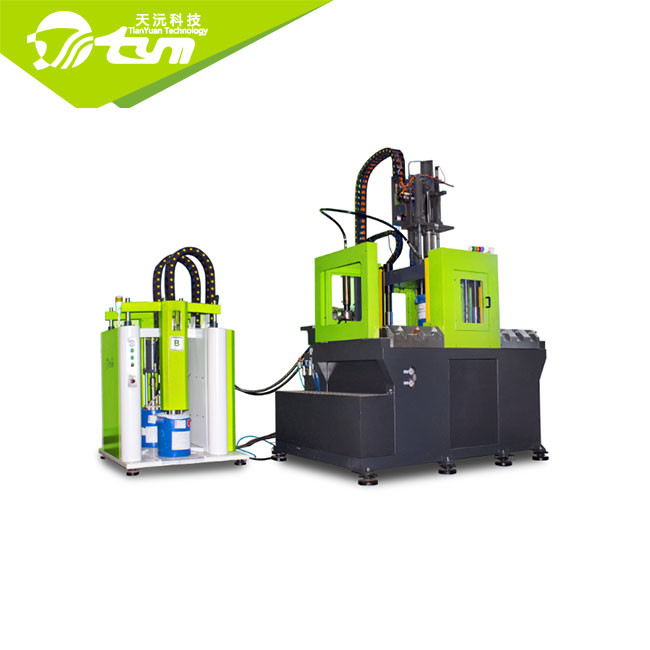

500 X 580mm Liquid Silicone Injection Molding Machine Stable Foley Catheter Equipment



TYM adopt the advanced integration design on our LSR Catheter Manufacturing Equipment and can supply personalized solutions for the customer. It is more energy-efficient, easy to operate, the production speed is high. TYM LSR machine is your best choice for saving the production cost when you choose a machine.



Vertical Liquid Silicone Rubber (LSR) injection molding machine
Closing the mould downward, two kinds of models can be chose – single sliding board and double sliding board. For double sliding board LSR machine, one upper moldboard and two lower moldboards are installed, which improves the production efficiency. The sliding out structure on the machine makes the production more conveniently and more safely. Also the vertical mould opening and closing is more suitable for producing the overmold (inmold) LSR parts which has inserts.



About Service

Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the

production process!



The professional service from TYM
Pre -sale service

*Provide investment budget and plant planning;

*Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

*Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

*After product upgrading, the upgrading work of previous users shall be given priority as required;

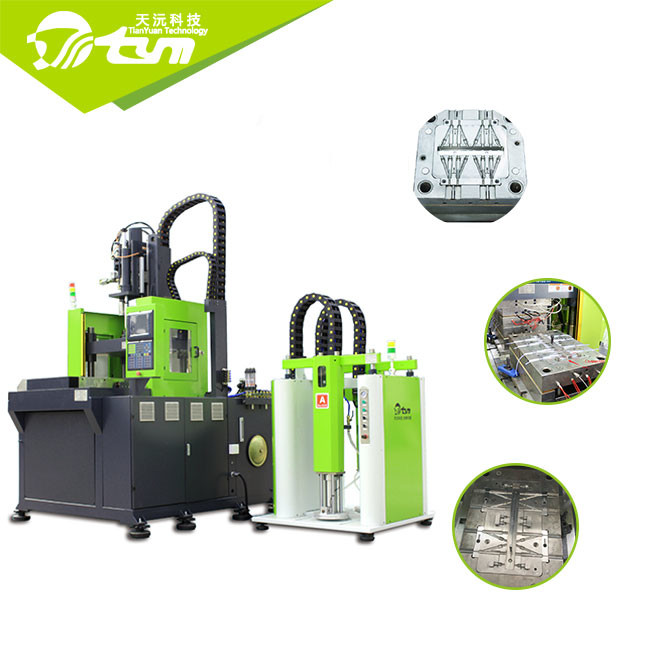

500 X 580mm Liquid Silicone Injection Molding Machine Stable Foley Catheter Equipment 0

About TYM

Guangzhou Tianyuan Silicone Machine Technology Co., Ltd. is established in 2002, which specializes in designing and manufacturing the LSR automatic injection molding machine as well as the LSR mold, we mastered the core technology, the quality is excellent! Our production technology is in the leading level in China;





The main feature of the vertical LSR molding machine:
A. Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster
and steadier.
B. Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.
C. Meet the requirements on multi-station production.
D. High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.

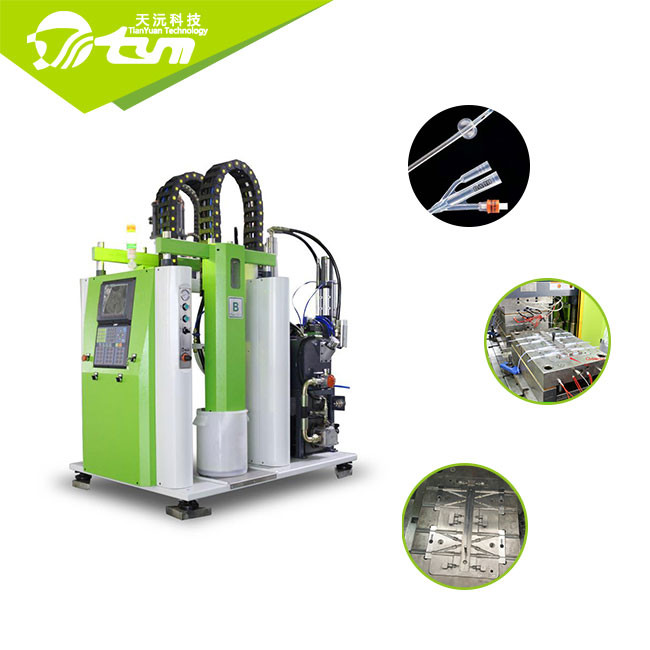

500 X 580mm Liquid Silicone Injection Molding Machine Stable Foley Catheter Equipment 1



About Machine

The parameter of horizontal lsr injection molding machine

TYM-L5058

Tie-bar space Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
500*580mm 4.3T 150mm 21Mpa 5.3T 12.1KW 2.4*1.6*3.4m

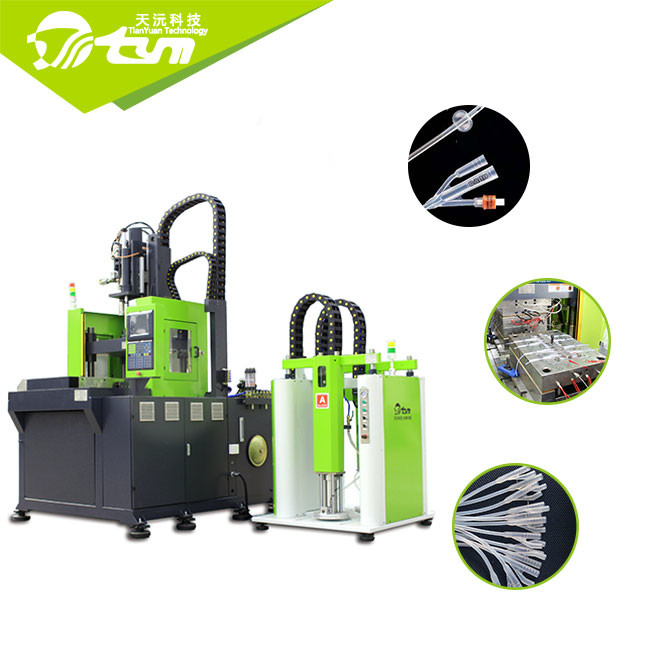

500 X 580mm Liquid Silicone Injection Molding Machine Stable Foley Catheter Equipment 2





Other machine style:





ITEM DESCRIPTION UNIT TYM-L2428 TYM-L4048 TYM-L5058 TYM-L6068
Injection Unit Shot Volume g 6 165 165 300
Injection Rate g/s 30 30 30 30
Injection Pressure Kg/cm2 700 700 700 700
Clamping Unit Clamping Force T 50 95 130 150
Opening Stroke mm 100-400 250-550 250-550 250-550
Tie-Bars Space mm 240*280 400*480 500*580 600*680
Ejection Force T 4.3 4.3 4.3 4.3
Ejection Stroke mm 150 150 150 150
Pump Pressure Mpa 21 21 21 21
Others Motor Power KW 12.1 12.1 12.1 21
Machine Weight T 2.2 4.7 5.3 5.5
Machine Dimension m 1.4*1.5*3.15 2.2*1.5*3.4 2.5*1.6*3.4 2.7*1.7*3.4
