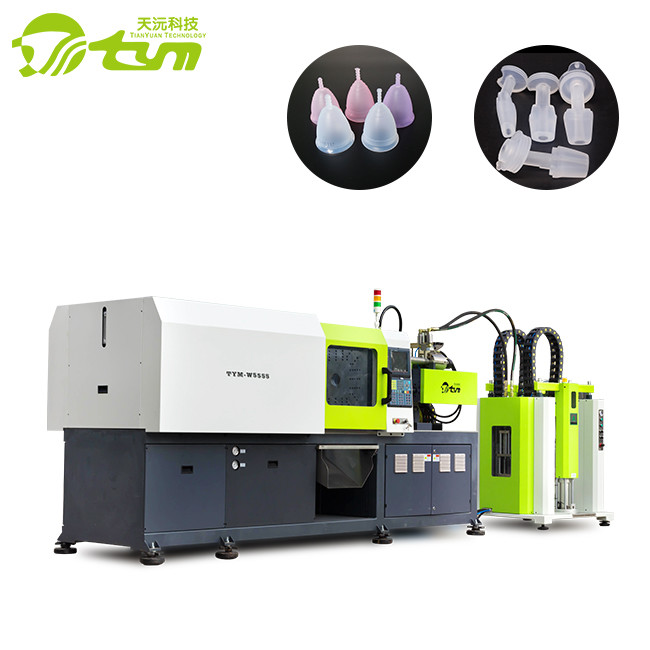

ISO Horizontal Liquid Silicone Injection Molding Machine For Making Baby Nipple Pacifiers

Minimum Order Quantity : >1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 50 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE/ISO Model Number: TYM-4545

Detail Information

Type: Horizontal Materials: Liquid Silicone
Certification: CE/ISO Product Name: ISO Horizontal Liquid Silicone Injection Molding Machine For Making Baby Nipple Pacifiers
Warranty: 1 Year Ejection Force: 4.3T
High Light:

horizontal molding machine


hydraulic rubber moulding machine

Product Description

ISO Horizontal Liquid Silicone Injection Molding Machine For Making Baby Nipple Pacifiers

Liquid silica gel (LSR) is a kind of product favored by consumers and manufacturers. Liquid silica gel is made of silica gel products. It has good elasticity, water and moisture resistance, and is resistant to acid, alkali and other chemical substances, so it is generally used to replace living plastic products.


Liquid silicone rubber is divided into a-gel and b-gel. The ratio of a-gel and b-gel is controlled by a quantitative device to be 1:1, and then they are fully mixed through a static mixer, injected into the injection tube, and then produced by injection molding.


The liquid silica gel is injected into the hot runner mold to make silica gel products, which can achieve the advantages of one-time molding, no waste and automation.

 Machine Model Parameter

Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-W4545 148g 30g/s 700kg/cm2 130T 200-700mm 450*450mm 4.3T 150mm 21Mpa 5.2T 12.1KW 4.0*1.2*1.9m
TYM-W5050 270g 30g/s 700kg/cm2 150T 200-700mm 500*500mm 4.3T 150mm 21Mpa 5.3T 12.1KW 4.2*1.4*1.9m
TYM-W5555 270g 30g/s 700kg/cm2 160T 200-700mm 550*550mm 4.3T 150mm 21Mpa 5.6T 12.1KW 4.5*1.6*2.0m

Six problems and solutions often appear in the production process of silicone nipple production machine:
1: Poor adhesion
Solution: change from manual bonding to transfer gluing and automatic gluing
2: It is difficult to remove the edge
Solution: LSR engineers participate in the early stage of the glue injection groove design, provide feasible suggestions, frozen edge removal, stamping edge removal, manual edge removal and other ways of edge removal.
3: Overflow and lack of glue
Solution: select the precise feeding control system to control the rubber in the cavity within 10g
4: Tolerance deviation
Solution: the scientific design of the early mold, mold material selection, through the mold temperature control management system, mold temperature control. Strictly control the integrated forming process of various materials + LSR.
5: Appearance damage of mating parts
Optimization of locating points, shielding irrelevant parts and key protection parts
6: Low overall yield
Select experienced, high professional and large-scale manufacturers

Pre -sale service * Provide investment budget and plant planning;
* Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service * Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service * Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
* After product upgrading, the upgrading work of previous users shall be given priority as required;
