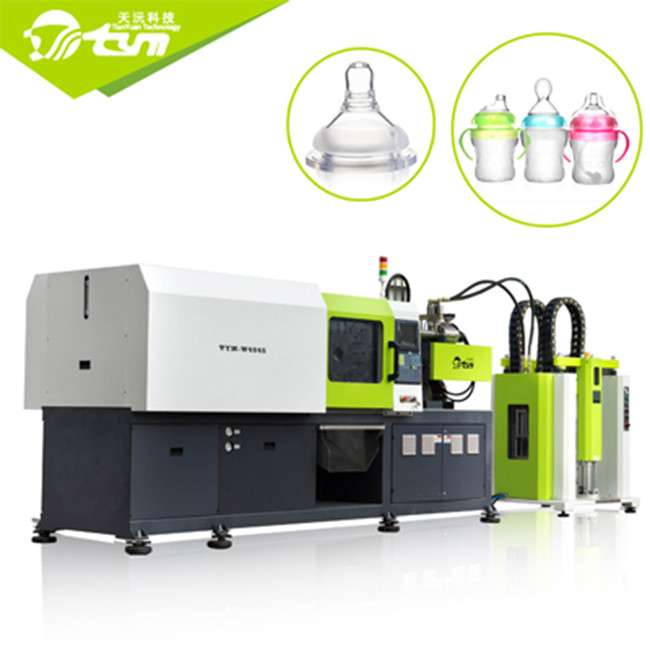

New Horizontal LSR Injection Moulding Machine Producing Baby Feeding Bottle Nipple And Pacifier

Minimum Order Quantity : 1 SET Price : USD43,000~USD50,000
Packaging Details : International shipping standard packing Delivery Time : 45 working days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 10 SETS per month
Place of Origin: China Brand Name: TYM
Certification: ISO, CE Model Number: W4545

Detail Information

High Light:

700mm Horizontal LSR Injection Moulding Machine

,

Pacifier LSR Injection Moulding Machine

Product Description





Hydraulic High Speed Injection Molding Machine For Baby Products



How to improve the production quality and efficiency of liquid silicone nipple mold.

1. Point to point cold runner

According to the size of the liquid silicone nipple, the liquid silicone nipple mold generally has one out of four points, one out of six points, one out of eight points, one out of sixteen points, each point adopts a one-to-one cold runner way to enter the rubber.

2. Rubber inlet

Liquid silicone nipple mold can achieve zero water inlet, but in the production of standard mouth and wide mouth nipple, in order to increase the production efficiency and product quality, the rubber inlet is generally 5mm long, one is to shorten the curing time of liquid silicone nipple, the other is to facilitate the consistency of subsequent punching positions.

3. No flash

The liquid silicone nipple mold adds a vacuum pumping system, and actively vacuumizes and exhausts air, so as to realize the production of liquid silicone nipple products without flash and reduce the manual work of secondary tearing.

4. Automatic demoulding

The liquid silicone nipple mould is designed to have no excess nozzle, overflow glue and flash residue. The air blowing and mechanical arm are used for automatic demoulding.

Automatic Hydraulic System Injection Moulding Machine For Making Baby Feeding Products 0



The main feature of the horizontal Liquid Injection Molding Machine :
1,Direct pressure injection barrel-high precision,portable, easy to change and clean.
2,1:1 quantitative cylinder, The output ratio error of glue A and B is within 1%.
3,Static+dynamic mixer to mix the material and color more thoroughly.
4,Digital control slurry pump,accuracy up to 0.01g
5,The servo system-is 12.1KW, energy-saving 60%



Horizontal 130T direct pressure LSR injection molding machine parameter



Injection Unit
Shot Volume 165g (can be adjusted)
Injection Rate 30 g/s
Injection Pressure 700kg/cm³
Clamping Unit
Clamping Force 130 T
Opening Stroke 200-700 mm
Tie-Bars Pace 450*450 mm
Ejection Force 4.3 T
Ejection Stroke 150 mm
Others
Motor Power 12.1 KW
Pump Pressure 21 Mpa
Machine Weight 4 T
Machine Dimension 4100*1600*2000mm




Automatic Hydraulic System Injection Moulding Machine For Making Baby Feeding Products 1Automatic Hydraulic System Injection Moulding Machine For Making Baby Feeding Products 2

TYM factory:

Automatic Hydraulic System Injection Moulding Machine For Making Baby Feeding Products 3Automatic Hydraulic System Injection Moulding Machine For Making Baby Feeding Products 4

Our service:

Pre-sale service
According to the customer’s investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving, will provide matched mold and select suitable machine according to customer’s requirement.



On-purchase service
Enable to be familiar with the operation and maintenance of the TYM's machine.
1) Installation of LSR machine and new machine debugging service.
2) Machine operator training.
3) Training of technicians.


After-sales service
1) Free training for the operation and maintenance independently.
2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for the instruction and will provide the technical guidance for free.
3) TYM will give priority to customer when the system on the LSR machine need to be upgraded.
