Double Slide Mold Silicone Injection Molding Machine For Silicone Medical Device

Minimum Order Quantity : 1 set Price : USD49999-47999 per set
Packaging Details : Plastic film Delivery Time : 30 days
Payment Terms : L/C, D/P, T/T Supply Ability : 10 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L5058

Detail Information

Product Name: Double Slide Mold Silicone Injection Molding Machine For Silicone Medical Device Tie-bar Space: 500x580mm
Clamping Force: 130T Machine Weight: 3.9T
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Field Installation
High Light:

thermoset injection moulding machine

,

auto injection molding machine

Product Description

Double Slide Mold Silicone Injection Molding Machine For Silicone Medical Device

1: Integrated, vertical design, small floor area, beautiful and environmental protection!

2: Injection of upper and lower mold closing, good sealing of mold closing, more accurate glue injection, more beneficial to the production of products with rubber package,

3: Double slide design, front and back sliding, can implement double station operation, the latch ejects the demoulding upward, is more advantageous to take and place the product!

4: Turntable design, 360 degree rotation without dead angle, can be equipped with two front molds and four back molds, while taking products, while producing,Save the waiting time for the product to form, and the production efficiency is higher!

5: It can be used with manipulator to produce automatically, save labor and save more cost for the company!

 The data of Vertical Injection Moulding Machine

ITEM DESCRIPTION UNIT TYM-L2428 TYM-L4048 TYM-L5058 TYM-L6068
Injection Unit Shot Volume g 6 165 165 300
Injection Rate g/s 30 30 30 30
Injection Pressure Kg/cm2 700 700 700 700
Clamping Unit Clamping Force T 50 95 130 150
Opening Stroke mm 100-400 250-550 250-550 250-550
Tie-Bars Space mm 240*280 400*480 500*580 600*680
Ejection Force T 4.3 4.3 4.3 4.3
Ejection Stroke mm 150 150 150 150
Pump Pressure Mpa 21 21 21 21
Others Motor Power KW 12.1 12.1 12.1 21
Machine Weight T 2.2 4.7 5.3 5.5
Machine Dimension m 1.4*1.5*3.15 2.2*1.5*3.4 2.5*1.6*3.4 2.7*1.7*3.4



      Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the

production process!



The professional service from TYM
Pre -sale service

*Provide investment budget and plant planning;

*Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

*Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

*After product upgrading, the upgrading work of previous users shall be given priority as required;

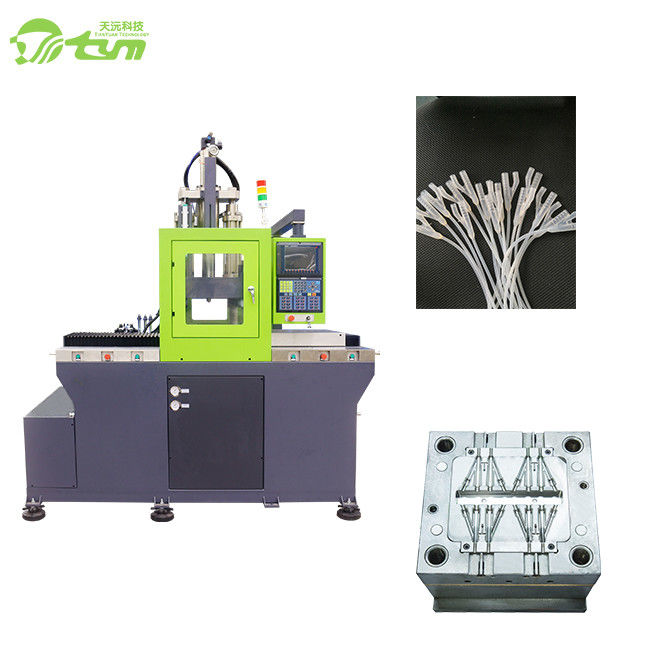

Double Slide Mold  Silicone Injection Molding Machine For Silicone Medical Device 0
