Two - Stage 130T 700 Kg/Cm2 Vertical Injection Moulding Machine

Minimum Order Quantity : 1 set Price : USD49999-47999 per set
Packaging Details : Plastic film Delivery Time : 30 days
Payment Terms : L/C, D/P, T/T Supply Ability : 10 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L5058

Detail Information

Product Name: TYM 130T Vertical Injection Moulding Machine Tie-bar Space: 500x580mm
Clamping Force: 130T Machine Weight: 3.9T
High Light:

low pressure overmolding machine

,

cable overmolding machine

Product Description

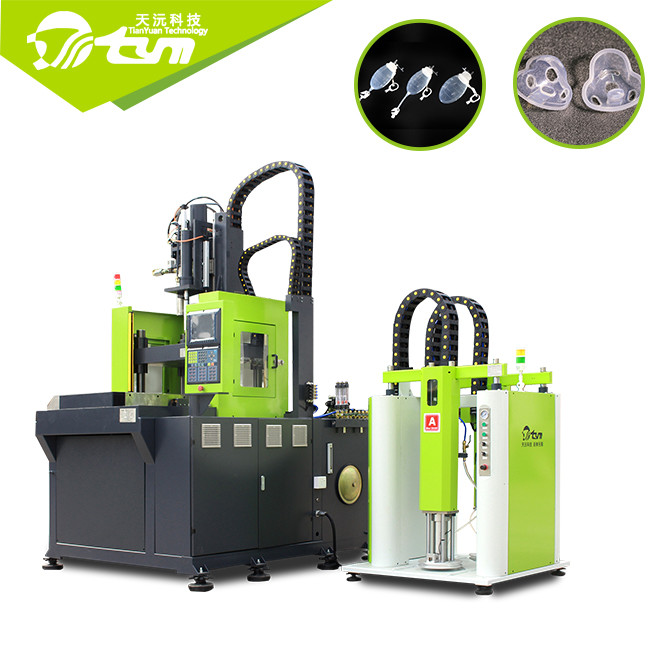

   TYM 130T Vertical Injection Moulding Machine



The high tolerances and strict quality control standards required for the over-molding process make it an ideal technique for parts and products that require precision. For example, 130T Vertical Injection Moulding Machine

    Manufacturers across a variety of industries use over-molding for a diverse number of applications. This two-stage process consists of a finished metal or plastic component placed into an LSR mold, followed by molding the LSR component directly to the part. Over-molding is the only way to incorporate materials (aside from other thermoplastics materials and LSRs processes) into the injection molding process.



Our service

Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the

production process!



The professional service from TYM
Pre -sale service

*Provide investment budget and plant planning;

*Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

*Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

*After product upgrading, the upgrading work of previous users shall be given priority as required;





    TYM machine features

1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.

2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.

3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.

4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.

5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.

6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.

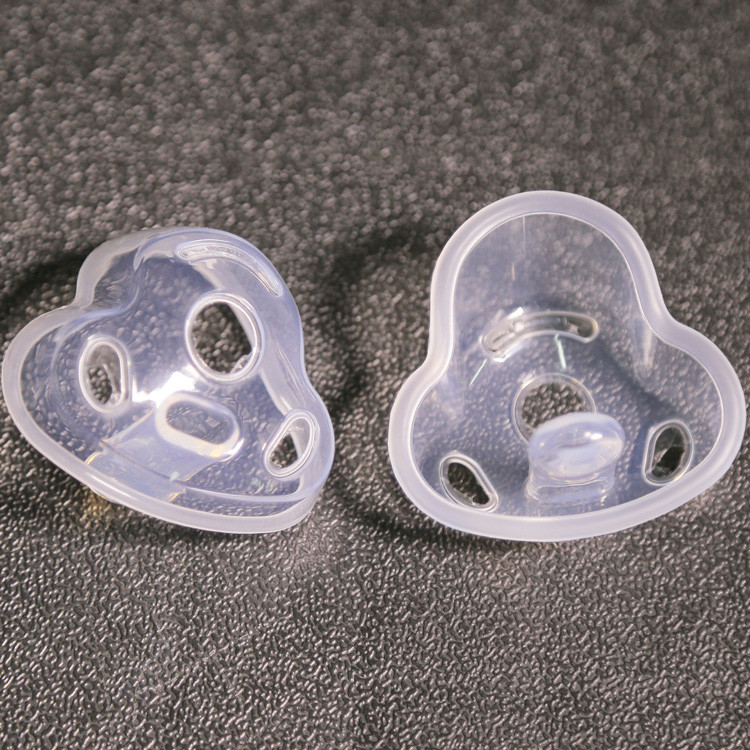

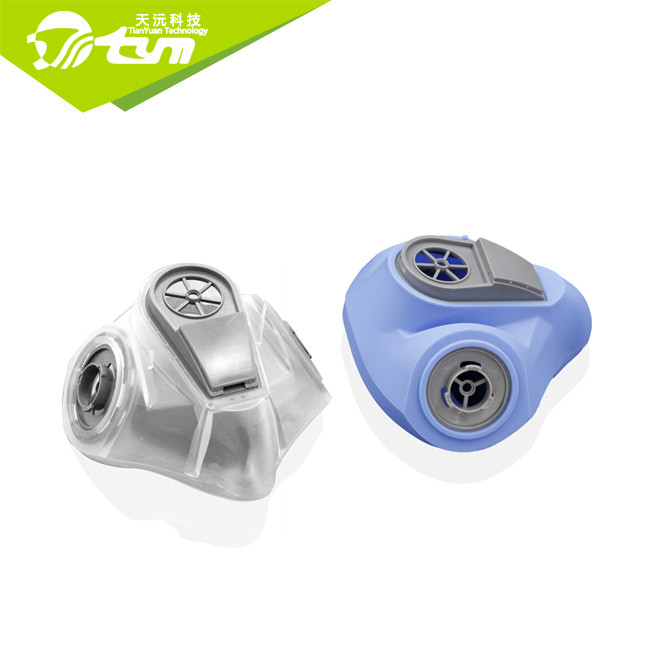

  The data of LIM Vertical Injection Moulding Machine For Making Protective Face Guard

ITEM DESCRIPTION UNIT TYM-L2428 TYM-L4048 TYM-L5058 TYM-L6068
Injection Unit Shot Volume g 6 165 165 300
Injection Rate g/s 30 30 30 30
Injection Pressure Kg/cm2 700 700 700 700
Clamping Unit Clamping Force T 50 95 130 150
Opening Stroke mm 100-400 250-550 250-550 250-550
Tie-Bars Space mm 240*280 400*480 500*580 600*680
Ejection Force T 4.3 4.3 4.3 4.3
Ejection Stroke mm 150 150 150 150
Pump Pressure Mpa 21 21 21 21
Others Motor Power KW 12.1 12.1 12.1 21
Machine Weight T 2.2 4.7 5.3 5.5
Machine Dimension m 1.4*1.5*3.15 2.2*1.5*3.4 2.5*1.6*3.4 2.7*1.7*3.4
