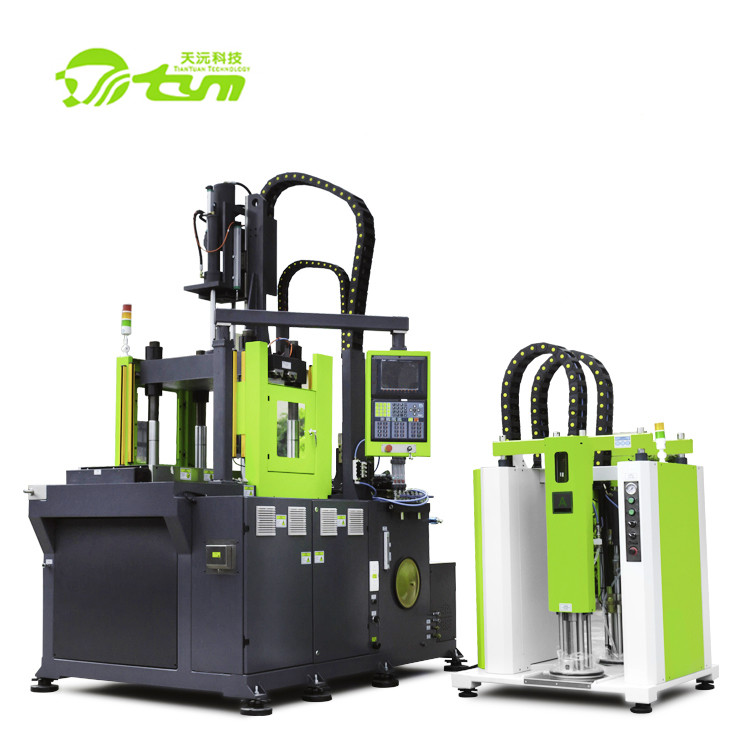

Vertical Rubber Silicone Injection Moulding Machine Wear Resistance

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Plastic Film Delivery Time : 30 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union Supply Ability : 20 Sets per Month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L5058

Detail Information

Opening Stroke: 250-550mm For Rubber Injection Moulding Machine Vertical Silicone Injection Molding Machine Product Name: Rubber Injection Moulding Machine Vertical Silicone Injection Molding Machine
Clamping Force: 130T About Rubber Injection Moulding Machine Vertical Silicone Injection Molding Machine Products: Rubber Injection Moulding Machine Vertical Silicone Injection Molding Machine
Injection Rate: 30g/s About Rubber Injection Moulding Machine Vertical Silicone Injection Molding Machine Condition: New
High Light:

injection rubber moulding machine

,

injection molding system

Product Description

Rubber Injection Moulding Machine Vertical Silicone Injection Molding Machine



You need to pay attention to a few problems in the processing of silicone products customized!

First development and design, product structure of the core of a product is copy number on the drawing design need after the completion of the multiple audits, if the design of the product is very uncertain as to prevent change mould structure of the premise, can open a sample mold to reduce risk, make hand after validation confirmation in open mold production big goods, for mold processing according to the demand of products to choose mold size, the number of delivery can't satisfy the can choose to develop more holes.

In addition to the structure of product customization for hard degree of softness with standard products, whether can achieve the result that you want is important, the different hard softness can achieve the use of different effect, and for appearance that is one of the market investigation and research on the choice of the color, in addition to product selection of raw materials is very important, can choose different tensile resilience and high purity raw materials!

Of course, on the other hand, you also need a set of their own budget cost method, for the silicone products manufacturers can calculate the unit price of different products, and you also estimate the approximate price of the product!To calculate the price, you need to understand the market price of raw materials and your product weight, in the knowledge of the actual production of silicone products manufacturers combined with the raw material price of the product to calculate the cost of the product price!

In addition to the above problems, in the customized processing of silicone products also need to understand the product defect and the reason for the defect, such as the product is not ripe and explosion edge and other factors, and find the product defect and product standards in a controllable range to the supplier requirements, can greatly reduce the loss of both sides!



Machine Model Parameter

TYM-L5058 Vertical LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 130 T
Opening Stroke 250-550 mm
Tie-Bars Pace 500*580 mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 12.1 KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 6 T
Machine Dimension 2.5*1.6*3.6 m






How to judge the quality of silicone products



01. Wear resistance



Wear resistance is the production of silicone products molding has, the surface of silica gel products can suffer from wear and tear ability, good silica gel products general surface rarely due to external factors friction off the product surface, do not affect the appearance of the performance, text, color.But the quality inferior silica gel product surface character is easy to drop.



02, elastic



Silica gel products have good elasticity, because the high elasticity is mainly from the movement of the silica gel molecular chain segment, so in the purchase of silica gel products first look at the elasticity of the silica gel products to judge the quality.



03. Tear strength and tensile strength



Silica gel products with high tearing strength have outstanding anti-damage ability, long life, and are not easily disturbed by the external environment. Silica gel products with poor tearing strength are generally prone to cracks in the process of tearing, which leads to the phenomenon of damage caused by rapid expansion and cracking under stress.



Resistance to fatigue



When silica gel products are subjected to alternating stress (or strain), the phenomenon of material structure and performance changes is called fatigue.With the process of fatigue, the phenomenon that leads to the destruction of silicone products is called fatigue damage.



05. Hardness and tensile stress



An important indicator of the rigidity (stiffness) of rubber materials, both of which are the forces needed to produce a certain deformation of silicone products.



So in the purchase of silicone products, the most important is to look at wear resistance, elasticity, tear strength.If it conforms to the specification is a good quality silicone products, if not satisfied to give up, so as not to cause financial losses.



About Service

The professional service from TYM
Pre -sale service

* Provide investment budget and plant planning;

* Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine * Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

* Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

* After product upgrading, the upgrading work of previous users shall be given priority as required;
