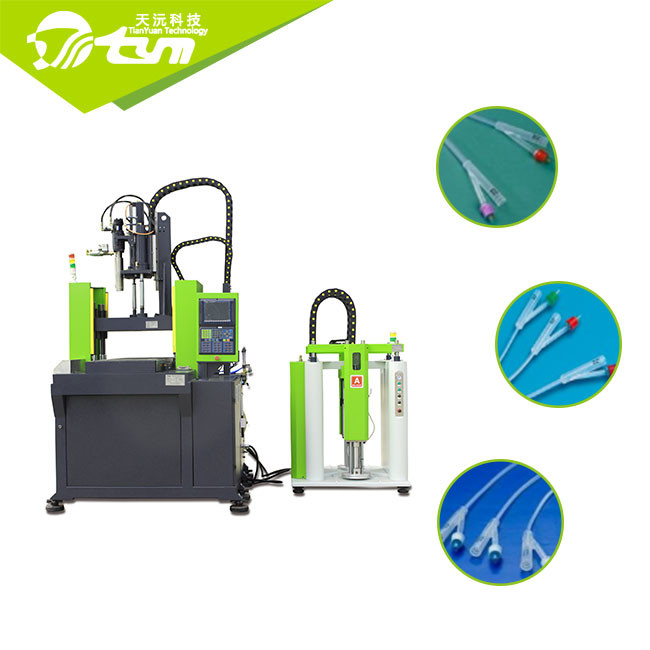

Tie - Bar 500x580mm Vertical Injection Moulding Machine For Lsr Catheter Production Line

Minimum Order Quantity : 1 set Price : USD48999-51999 per set
Packaging Details : Plastic film package Delivery Time : 30 days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 100 set per month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L5058

Detail Information

Product Name: Vertical Injection Moulding Machine For Lsr Catheter Production Line Shot Volume: 135g
Clamping Force: 130T Opening Strike: 250-550mm
Tie-bar Space: 500x580mm Motor Power: 12.1kw
Machine Weight: 3.9T Machine Dimension: 2.5x1.6x3.6m
High Light:

low pressure overmolding machine

,

cable overmolding machine

Product Description

Vertical Injection Moulding Machine For Lsr Catheter Production Line



The vertical lsr machine business scope:

The vertical lsr machine is suitable for silicone parts which need to be removed by manual when the mold opened. The bottom moldboard will slide out and you can remove finished part manually which is easy and safe.

Tie - Bar 500x580mm Vertical Injection Moulding Machine For Lsr Catheter Production Line 0

The main feature of the vertical LSR molding machine:
A. Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster
and steadier.
B. Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.
C. Meet the requirements on multi-station production.
D. High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.



About TYM:

TYM LSR injection molding machine has exported Europe and USD and more than 30 countries in the world. And we give the professional service for over 18 years. Our business scope includes lsr material supplier recommend and lsr mold and lsr machine. And TYM machine has passed CE test and our factory has got ISO9001 certification.

Tie - Bar 500x580mm Vertical Injection Moulding Machine For Lsr Catheter Production Line 1

Vertical Liquid Silicone Rubber (LSR) injection molding machine

Closing the mould downward, two kinds of models can be chose – single sliding board and double sliding board. For double sliding board LSR machine, one upper moldboard and two lower moldboards are installed, which improves the production efficiency.

The sliding out structure on the machine makes the production more conveniently and more safely. Also the vertical mould opening and closing is more suitable for producing the overmold (inmold) LSR parts which has inserts.



Our service

Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the

production process!



The professional service from TYM
Pre -sale service

* Provide investment budget and plant planning;

* Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

* Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

* After product upgrading, the upgrading work of previous users shall be given priority as required;



Other style machine data:

ITEM DESCRIPTION UNIT TYM-L2428 TYM-L4048 TYM-L5058 TYM-L6068
Injection Unit Shot Volume g 6 165 165 300
Injection Rate g/s 30 30 30 30
Injection Pressure Kg/cm2 700 700 700 700
Clamping Unit Clamping Force T 50 95 130 150
Opening Stroke mm 100-400 250-550 250-550 250-550
Tie-Bars Space mm 240*280 400*480 500*580 600*680
Ejection Force T 4.3 4.3 4.3 4.3
Ejection Stroke mm 150 150 150 150
Pump Pressure Mpa 21 21 21 21
Others Motor Power KW 12.1 12.1 12.1 21
Machine Weight T 2.2 4.7 5.3 5.5
Machine Dimension m 1.4*1.5*3.15 2.2*1.5*3.4 2.5*1.6*3.4 2.7*1.7*3.4
