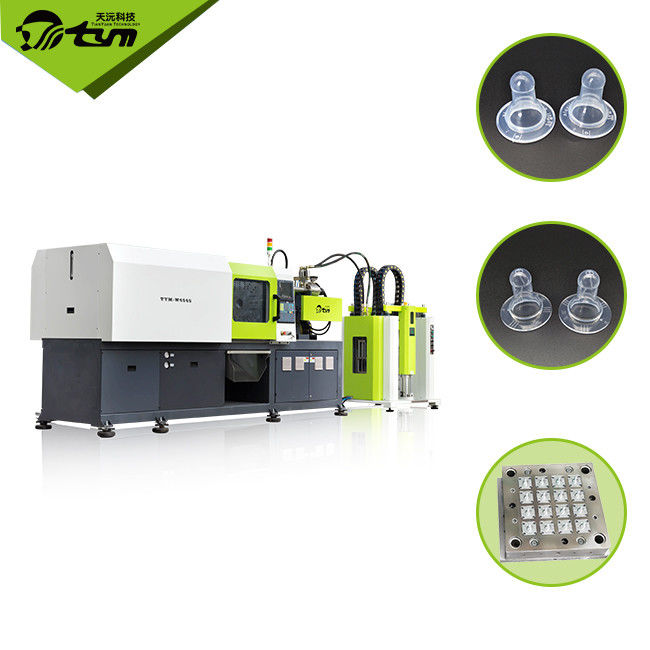

Servo Motor 12.1kw Liquid Silicone Rubber Automatic Injection Moulding Machine

Minimum Order Quantity : 1 set Price : USD46999-49999/set
Packaging Details : Film package Delivery Time : 30 days
Payment Terms : L/C, D/P, T/T Supply Ability : 100 sets/month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-W4545

Detail Information

Products Name: Servo Motor 12.1kw Liquid Silicone Rubber Automatic Injection Moulding Machine Shot Volume: 165g
Clamping Force: 130T Openning Stroke: 200-700mm
Tie-bar Space: 450x450mm Motor Power: 12.1KW
Machine Weight: 3.5T Machine Dimension: 4.1x1.6x2.0m
High Light:

baby milk bottle making machine

,

hi tech injection moulding machine

Product Description

Servo Motor 12.1kw Liquid Silicone Rubber Automatic Injection Moulding Machine

TYM is an environmentally responsible silicone company exclusively focused on the production of customized injection molded Liquid Silicone Rubber (LSR) parts, LSR overmolded parts, and LSR 2-Shot (LSR/Thermoplastics) components. Working together with leading raw material suppliers and world-renowned research institutions in the China, we provide greater value to our partners by designing and optimizing custom molded silicone parts and manufacturing processes that address the specific needs of each program.

      We deliver high-precision, high-volume, and top-quality Liquid Silicone Rubber and LSR 2-Shot solutions.


About Machine.
1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.
2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.
4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.
5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.
6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.
7) Precise cold runner LSR mould, which can make the LSR product producing with higher-quality, higher efficiency, longer life, save more production cost.

The Horizontal LSR machine for the applicable scope:

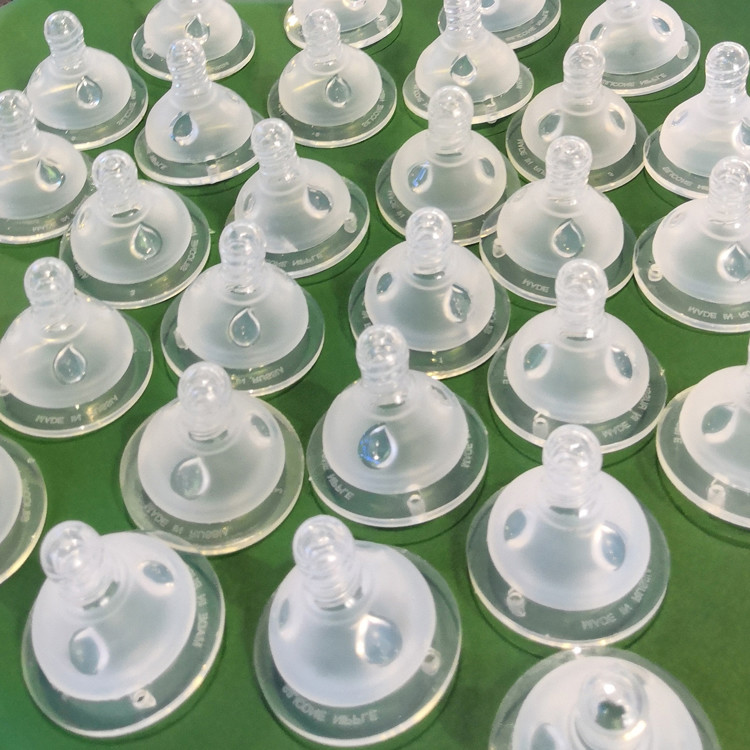

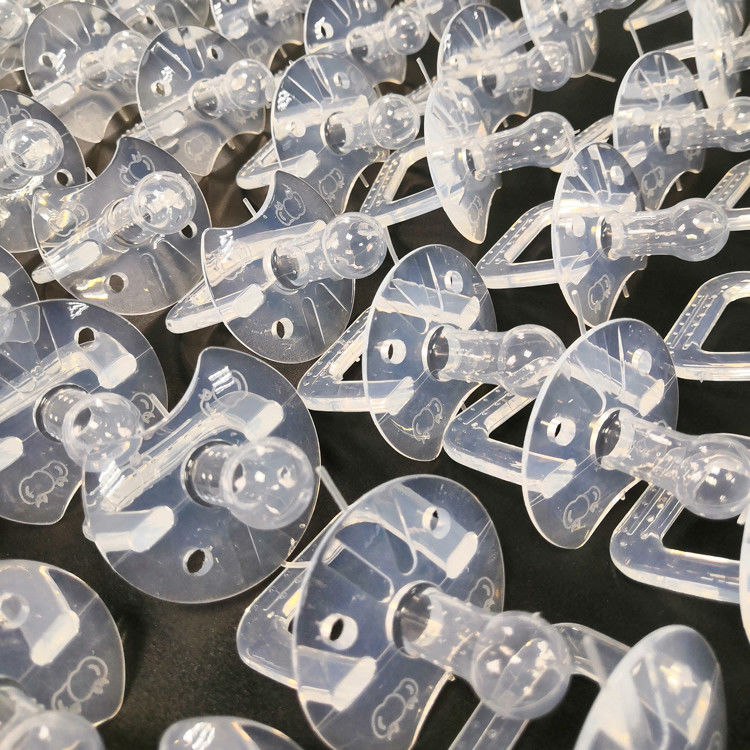

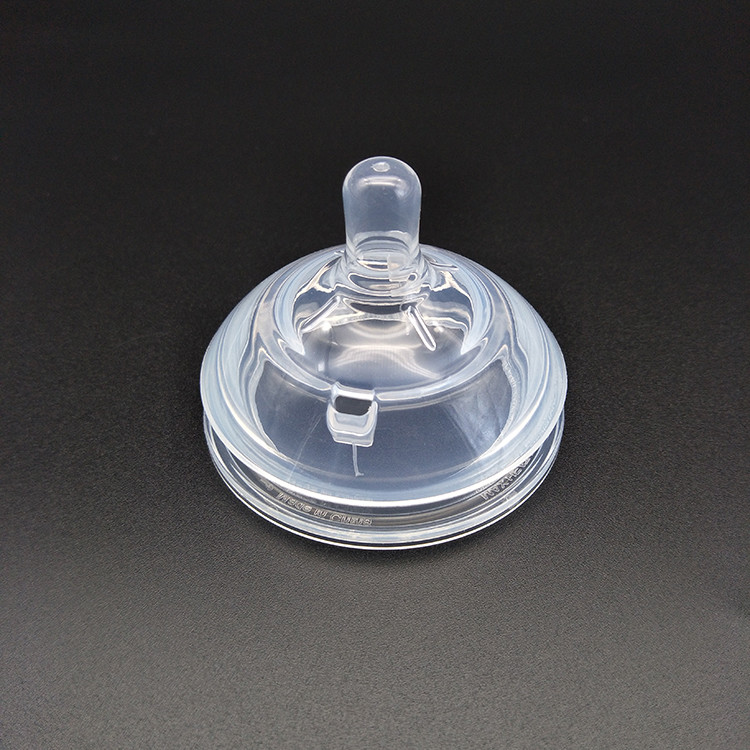

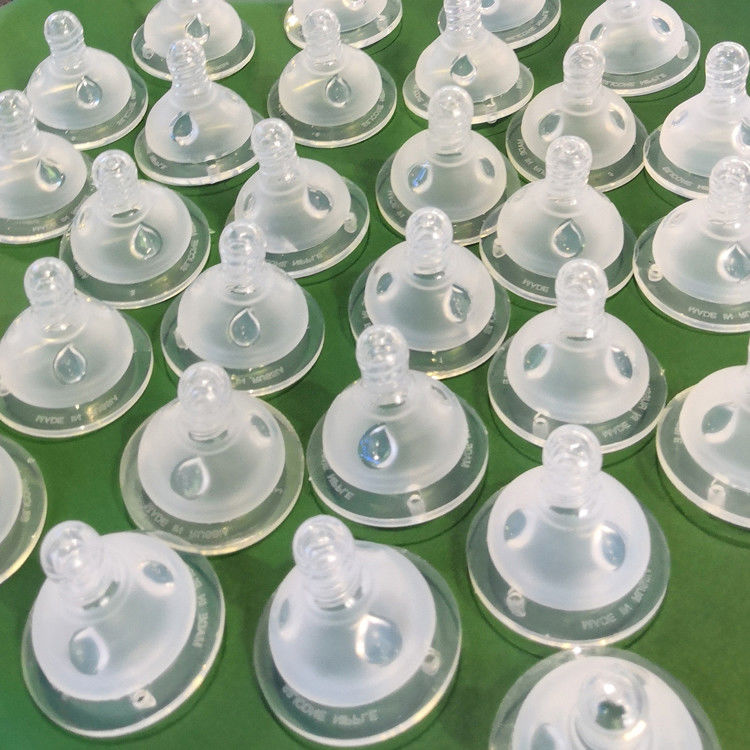

1) Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
2) Liquid silicone medical part, as like the capsule,  protective mast, catheter, balloon, medical belt etc.
3) Silicone high-voltage cable accessories,
4) Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
5) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
6) Silicone baking tool, cake mold, chocolate mold etc.


The other style horizontal lsr machine

ITEM DESCRIPTION UNIT TYM-W4545 TYM-W5050 TYM-W5555
Injection Unit Shot Volume g 165 300 300
Injection Rate g/s 30 30 30
Injection Pressure Kg/cm2 700 700 700
Clamping Unit Clamping Force T 130 150 160
Opening Stroke mm 200-700 200-700 200-700
Tie-Bars Space mm 450*450 500*500 550*550
Ejection Force T 4.3 4.3 4.3
Ejection Stroke mm 150 150 150
Pump Pressure Mpa 21 21 21
Others Motor Power KW 12.1 12.1 12.1
Machine Weight T 5.2 5.3 5.6
Machine Dimension m 4.0*1.2*1.9 4.2*1.4*1.9 4.5*1.6*2.0


Servo Motor 12.1kw Liquid Silicone Rubber Automatic Injection Moulding Machine 0
