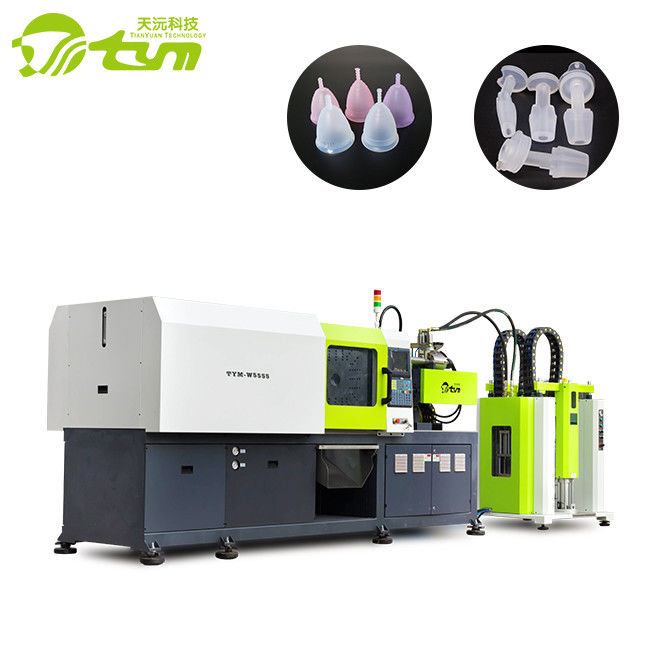

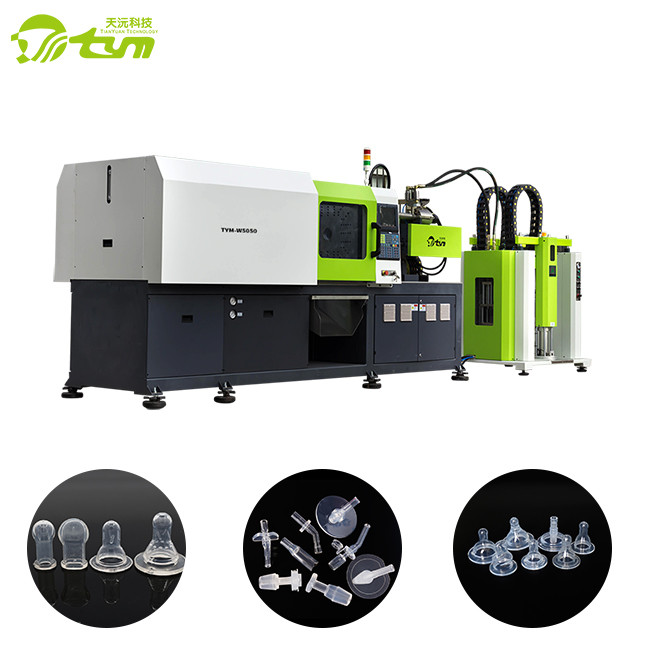

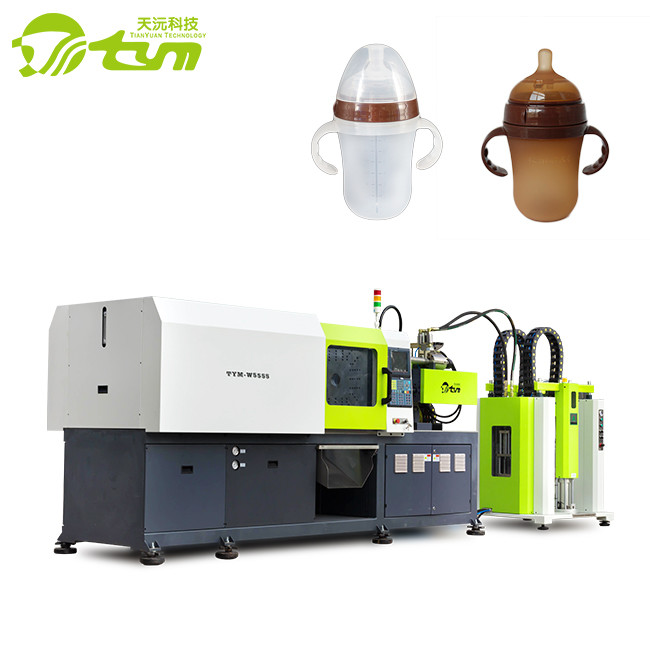

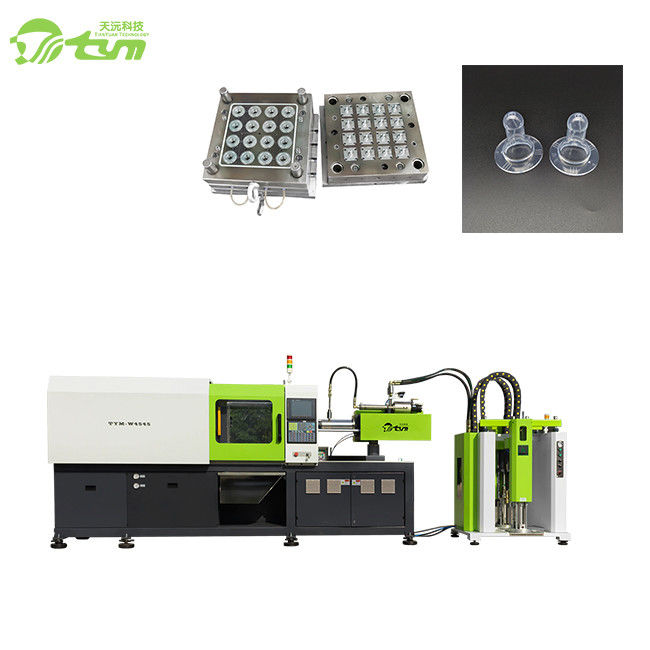

New Arrival Horizontal Lqiuid Silicone Injection Moulding Machine

Minimum Order Quantity : 1 Price : USD
Delivery Time : 1month Payment Terms : L/C, T/T, Western Union, MoneyGram
Place of Origin: China Brand Name: TYM
Certification: ISO Model Number: w5050

Detail Information

High Light:

hydraulic lsr Injection Moulding Machine

,

ISO lsr Injection Moulding Machine

Product Description

New Arrival Horizontal Lqiuid Silicone Injection Moulding Machine



Product Description



Horizontal Lqiuid Silicone Injection Moulding Machine Multi Section Mold Closing / Opening



Influence of mold temperature control on the processing of silicone liquid mold

Liquid silica gel is a thermosetting material. The curing reaction of liquid silica gel injection mold occurs at the mold temperature of 120-150 ℃, and the mold temperature control is very important.



1. Mold surface temperature should be stable

If the surface temperature is too high, the products will be scorched, the parting line will crack, and the products will become brittle.

If the surface temperature is too low, the curing speed of rubber compound is slow, and the product can not be demoulded;



2. The temperature of the mould should be heated evenly

The uneven heating and large temperature difference of the mold will make the rubber flow unstable, which is easy to cause air entrapment and insufficient injection

3. Location of heater

Sufficient distance should be kept between the heater and parting line to prevent the template from warping and deformation, resulting in overflow burr of finished products;



4. Comparison of mold temperature control heating methods

1) Heating of heating rod:

The heating rod is drilled by gun drill. The gap between the heating rod and the hole will lead to uneven heat transfer, and the heating rod is easy to be damaged. Moreover, multiple groups of heating rods share a set of temperature sensing, so the damage of the heating rod cannot be detected and the mold temperature is uneven. Choose carefully.

2) Heating plate heating:

The heating plate is designed at the bottom of the mold core, which is close to the mold core. The heating plate is designed with independent temperature sensing and closed-loop design to ensure that the temperature is controllable and the temperature of the heating plate is uniform. Recommended.



New Arrival Horizontal Lqiuid Silicone Injection Moulding Machine 0

TYM machine features

1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.

2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.

3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.

4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.

5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.

6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.


New Arrival Horizontal Lqiuid Silicone Injection Moulding Machine 1
