High Efficiency Horizontal Injection Moulding Machine Opening Stroke 200-700mm

Minimum Order Quantity : »1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 100 set year
Place of Origin: China Brand Name: TYM
Certification: CE/ISO9001 Model Number: TYM4545

Detail Information

Product Name: Horizontal Injection Moulding Machine Injection Machine For Baby Nipple Tie-Bars Space: 450*450mm For Horizontal Injection Moulding Machine Injection Machine For Baby Nipple
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support Clamping Force: 130T For Horizontal Injection Moulding Machine Injection Machine For Baby NippleHorizontal Injection Moulding Machine Injection Machine For Baby Nipple
Opening Stroke: 200-700mm For Horizontal Injection Moulding Machine Injection Machine For Baby Nipple Material: Liquid Silicone
High Light:

horizontal molding machine

,

hydraulic rubber moulding machine

Product Description

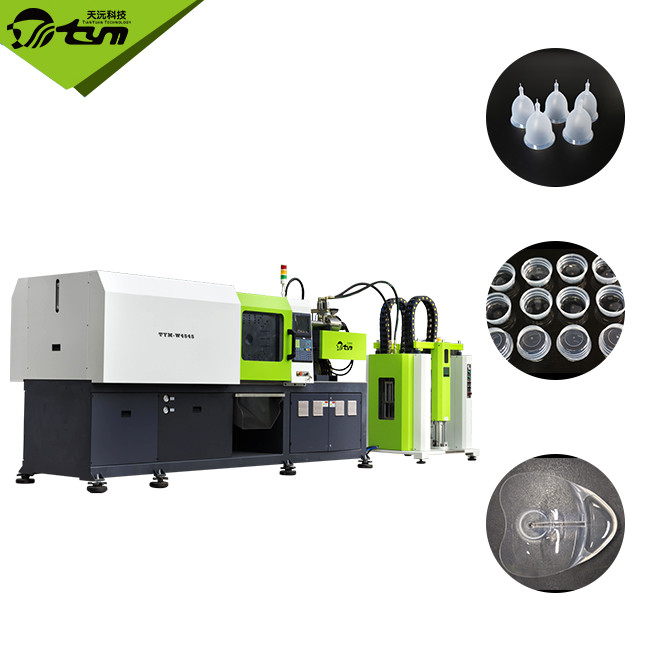

Horizontal Injection Moulding Machine Injection Machine For Baby Nipple



Eight advantages of LSR liquid silicone products over solid silicone products



1: absolutely environmentally friendly and non-toxic;A large number of applications in the silica gel medical products industry, silica gel maternal and child products industry, silica gel kitchenware supplies this is a fragile and sensitive industry, can be seen here its safety is not blowing, in this respect we are most familiar with the product than women in order to expand the use of breast augmentation silicone;

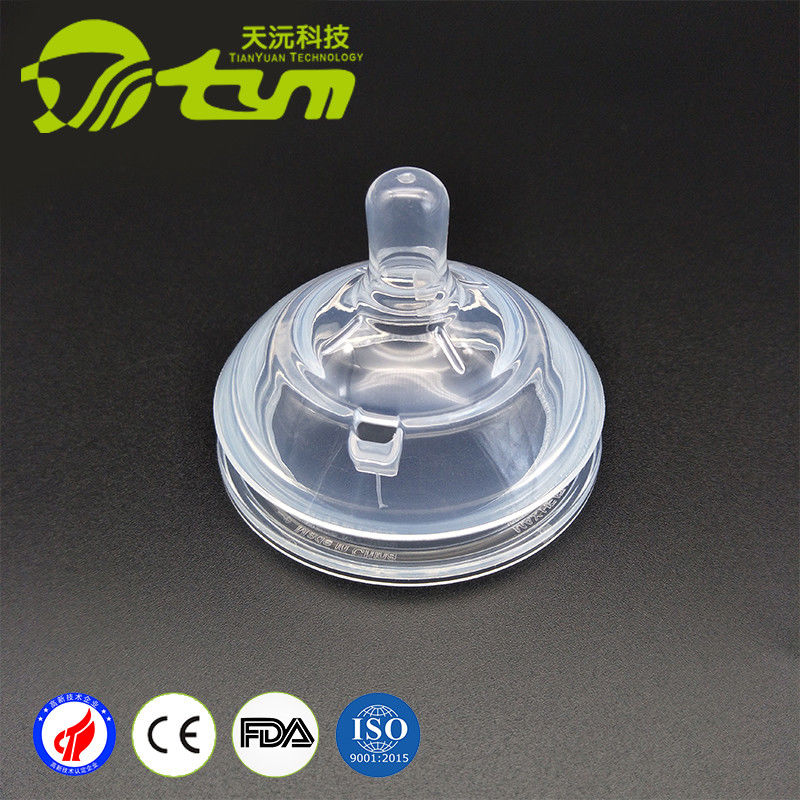

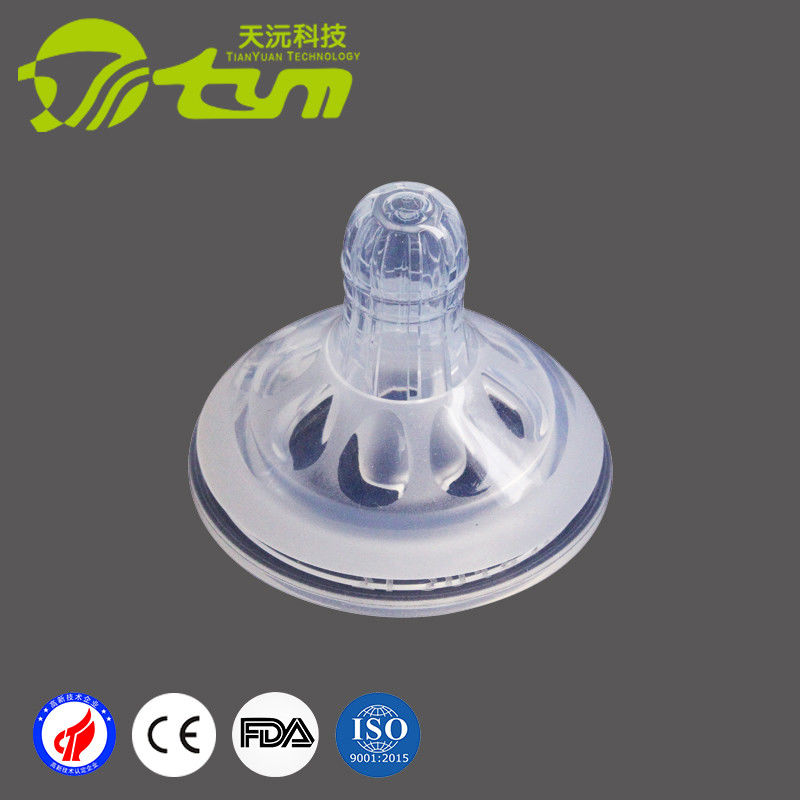

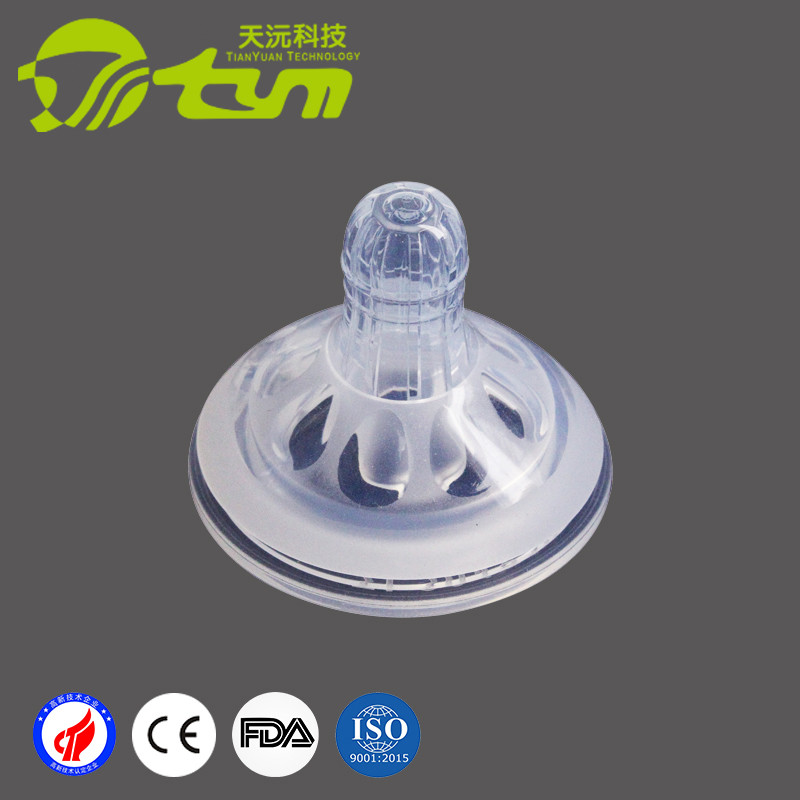

2: advanced transparency;As transparent as glass, let a person see the heart clear, the sense of clean health arises automatically, the most typical product application is the baby bottle on the pacifier, other products like diving goggles, suction mouth is not to see this advantage to use liquid silicone products;



3: high strength and tear resistance;Ordinary solid silica gel is very fragile, can not withstand how much tension will be torn, even if the use of gas phase processing of solid silica gel products still can not be compared with LSR liquid silica gel products, such as a variety of liquid silica gel medical balloon, liquid silica gel binding band binding band is the representative product of this advantage;



4. High degree of automation, long die life;Liquid silicone because of using the standard injection molding machine, plastic injection mold, and the die is so liquid silicone products in the process of production must have a high automation, rather like solid die easily hold of artificial moving plate, due to a substantial reduction in the manual operation, thus greatly extend the die life nature, production efficiency is relatively higher;



5. Shorter curing time;The molecular structure of liquid silica gel products is different from that of solid silica gel products. The curing time of liquid silica gel products at appropriate temperature is only one third of that of solid silica gel products. Therefore, the production cycle is greatly shortened and the production efficiency is greatly improved.



6: lower molding temperature;The molding temperature of solid silica gel products is about 170 degrees, while the molding temperature of LSR liquid silica gel products is only 130 degrees, lower or even 100 degrees, which can be cooked in a regular time.At present, although the solid silica gel can achieve the molding temperature of 120 due to the use of platinum water as catalyst, it also puts forward higher requirements for production operation due to its own molding process, so it cannot be widely used.At present, most of the silicone plastic products, silicon plastic composite products are because the plastic can not withstand high temperature and have to use liquid silica gel production;



7: greater liquidity;Liquid silica gel because of the liquid state, so its liquidity is very good, do not need a very strong injection pressure can be filled with cavity, so it is suitable for a variety of thin-wall narrow slot long tube products molding;



8: thinner parting line: the molding sequence of the liquid silica gel mold is to close the mold and then into the glue, so the surface of the mold can only exudate a very small amount of silica gel, or even no, this greatly improved the beauty of the product, the appearance of high requirements of the product is also natural to use liquid silica gel.



Machine Model Parameter


Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-W4545 148g 30g/s 700kg/cm2 130T 200-700mm 450*450mm 4.3T 150mm 21Mpa 5.2T 12.1KW 4.0*1.2*1.9m
TYM-W5050 270g 30g/s 700kg/cm2 150T 200-700mm 500*500mm 4.3T 150mm 21Mpa 5.3T 12.1KW 4.2*1.4*1.9m
TYM-W5555 270g 30g/s 700kg/cm2 160T 200-700mm 550*550mm 4.3T 150mm 21Mpa 5.6T 12.1KW 4.5*1.6*2.0m



The main feature of the horizontal Liquid Injection Molding Machine :
1, Direct pressure injection barrel-high precision,portable, easy to change and clean.
2, 1:1 quantitative cylinder, The output ratio error of glue A and B is within 1%.
3, Static+dynamic mixer to mix the material and color more thoroughly.
4, Digital control slurry pump,accuracy up to 0.01g
5, The servo system-is 12.1KW, energy-saving 60%



Pre -sale service * Provide investment budget and plant planning;
* Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service * Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service * Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
* After product upgrading, the upgrading work of previous users shall be given priority as required;
