Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products

Minimum Order Quantity : 1 SET Price : USD43000~USD50000
Packaging Details : International shipping standard packing Delivery Time : 45 working days
Supply Ability : 10 SETS per month
Place of Origin: China Brand Name: TYM
Certification: ISO, CE Model Number: TYM-W4545

Detail Information

Shot Volume: 165g / 300g Injection Rate: 30g/s
Injection Pressure: 700kg/c㎡ Clamping Force: 130T
Opening Stroke: 200-700mm Tie-Bars Space: 450*450mm
Ejection Force: 4.3T Ejection Stroke: 150mm
Motor Power: 12.1KW
High Light:

horizontal molding machine

,

hydraulic rubber moulding machine

Product Description

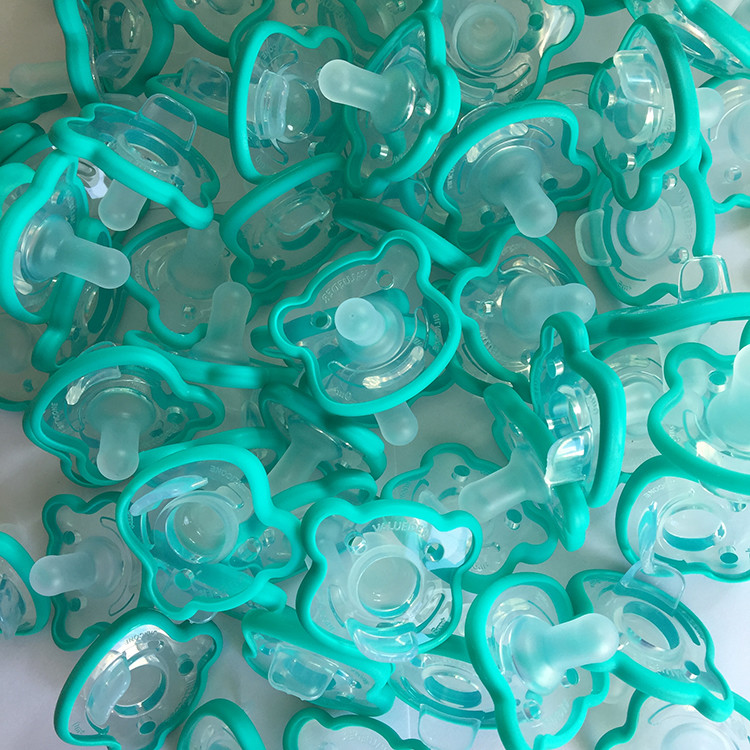

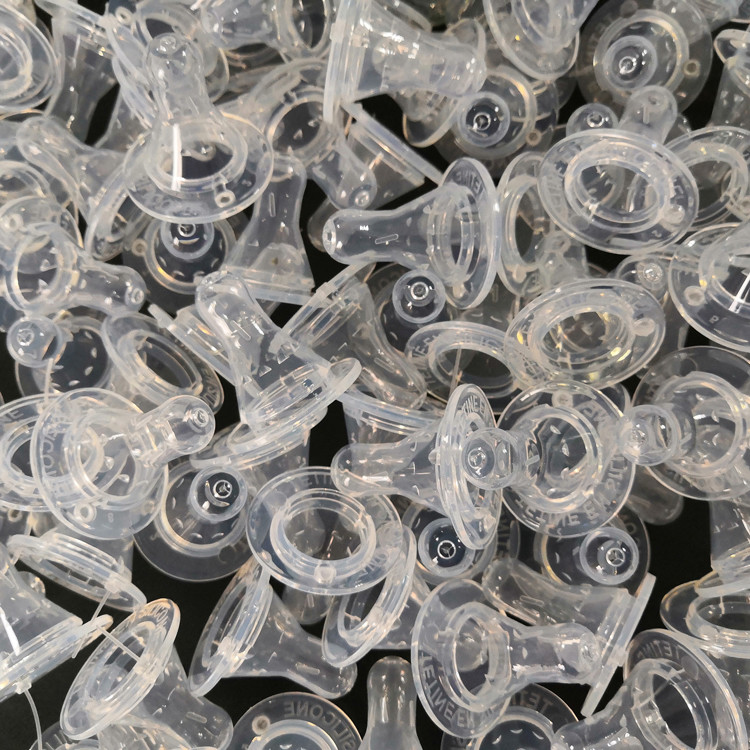

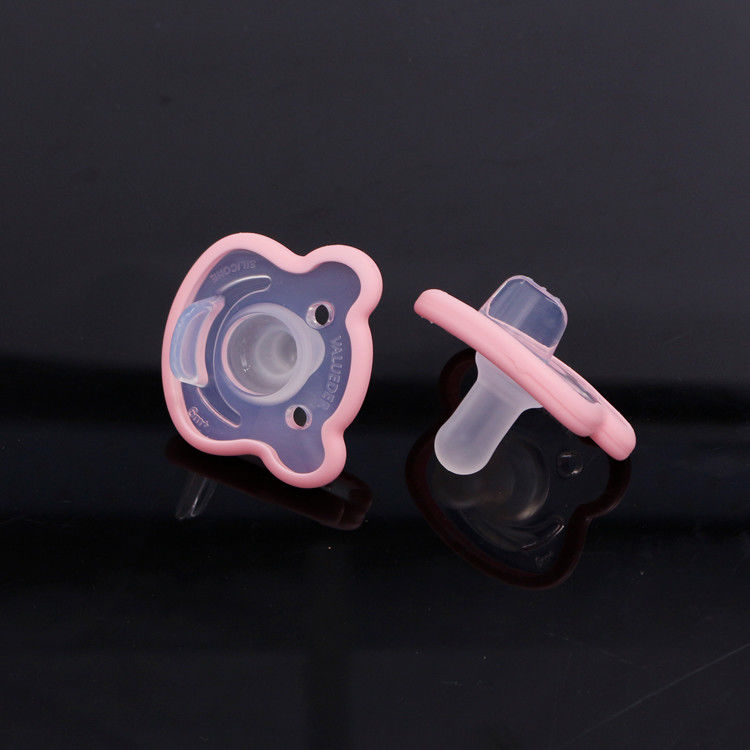

TYM in China professional Manufacture Horizontal injection molding machine more than 17 years, our fully Automatic Horizontal Injection Molding Machine for producing baby standard neck nipple, pacifier, soother, teether, bottle etc. transparent and colorful baby feeding products.

TYM was established in 2002, 33000㎡ manufacture base, two wholly owned subsidiaries , TYM is the earliest manufacturer of liquid silicone injection molding solutions in China.
TYM has more than 50 patents and had rated as a national high-tech enterprise in 2013.
TYM has a complete set of solutions from mold design, machine supply and training for the machine.
TYM has cooperated with the four major organic silicon manufacturers in the world for many years and has rich experience for liquid silicone application in various industries.



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 0



TYM TEAM

Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 1



(1) The LSR injection molding machine workshop of YMT

Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 2



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 3



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 4





(2) The Showroom of TYM

Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 5



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 6





(3) The workshop for manufacturing the LSR molds

Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 7



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 8



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 9



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 10



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 11



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 12

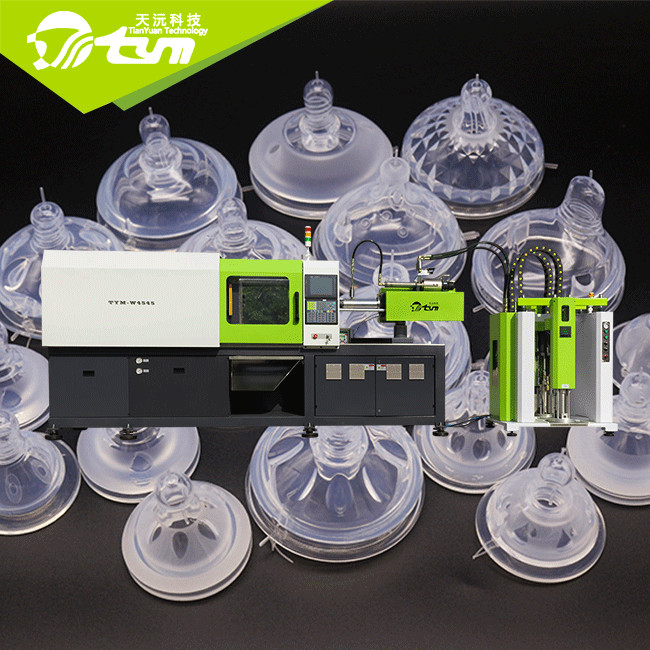

(4) TYM Horizontal Injection Molding Machine

Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 13



The parameter of horizontal 130T direct pressure LSR injection molding machine

Injection Unit
Shot Volume 165g (can be adjusted)
Injection Rate 30 g/s
Injection Pressure 700kg/cm³
Clamping Unit
Clamping Force 130 T
Opening Stroke 200-700 mm
Tie-Bars Pace 450*450 mm
Ejection Force 4.3 T
Ejection Stroke 150 mm
Others
Motor Power 12.1 KW
Pump Pressure 21 Mpa
Machine Weight 4 T
Machine Dimension 4.1*1.6*2.0 M



Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 14



(5) OUR SERVICES

Tianyuan focus on customer service for more than ten years, we provide one year for free warranty, life-long maintenance and also provide service for personnel training, installation and debugging services for free.

Pre-sale service
According to the customer’s investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving, will provide matched mold and select suitable machine according to customer’s requirement.

On-purchase service
Enable to be familiar with the operation and maintenance of the TYM's machine.
1) Installation of LSR machine and new machine debugging service
2) Machine operator training.
3) Training of technicians.

After-sales service
1) Free training for the operation and maintenance independently.
2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for the instruction and will provide the technical guidance for free.
3) TYM will give priority to customer when the system on the LSR machine need to be upgraded.



(6) TYM SERVICE NETWORK

Fully Automatic Horizontal Injection Molding Machine For Baby Feeding Products 15
