CE Vertical Injection Moulding Machine / Silicone Products Making Machine

Minimum Order Quantity : >1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 50 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE/ISO Model Number: TYM-4545

Detail Information

Type: Vertical Condition: New Vertical Injection Moulding Machine Silicone Products Making Machine
Certification: CE/ISO For Vertical Injection Moulding Machine Silicone Products Making Machine Product Name: Vertical Injection Moulding Machine Silicone Products Making Machine
Material: Liquid Silicone Rubber Ejection Force: 4.3 T For Vertical Injection Moulding Machine Silicone Products Making Machine
High Light:

low pressure overmolding machine

,

cable overmolding machine

Product Description

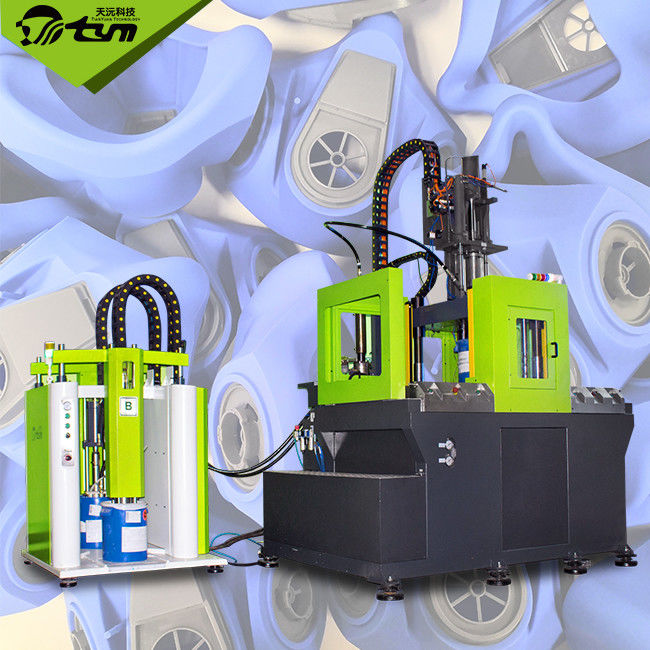

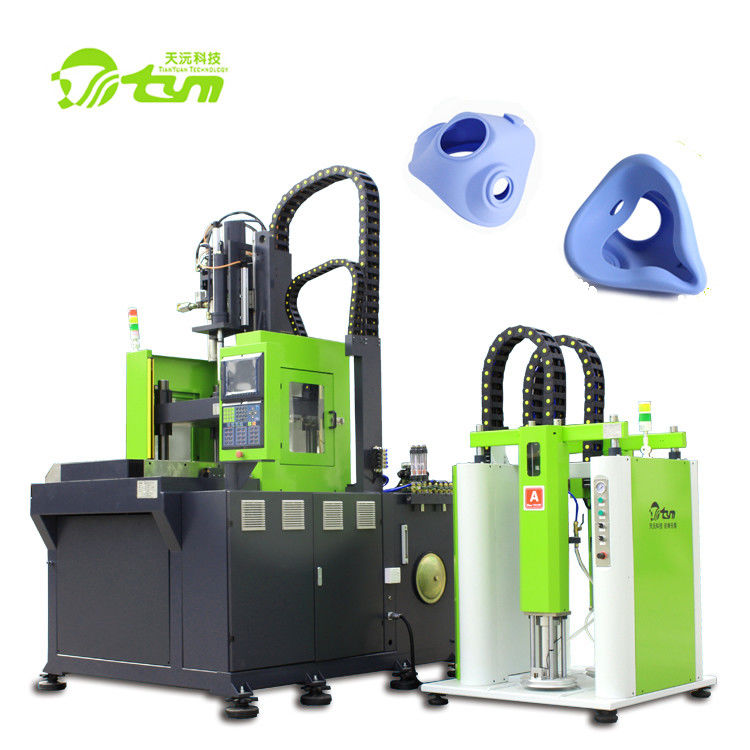

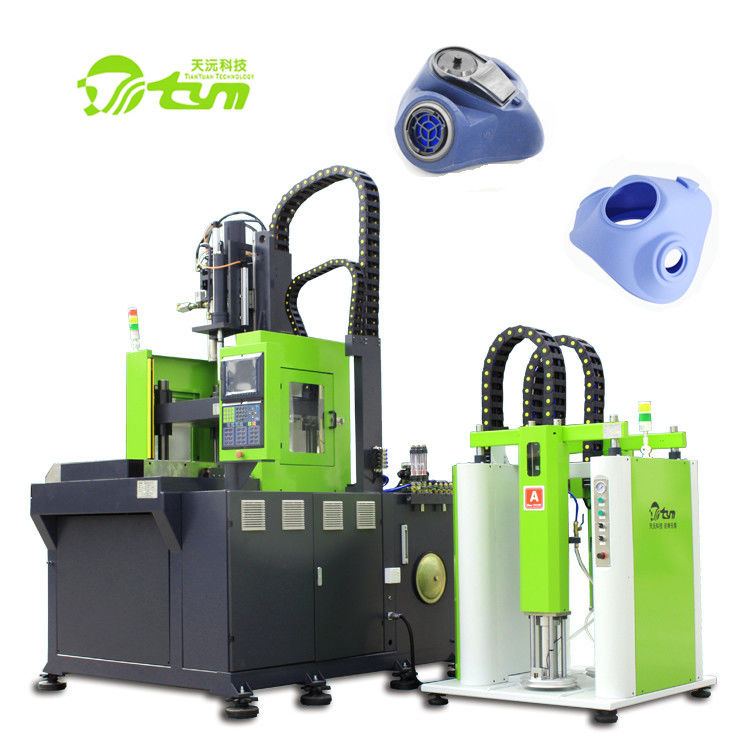

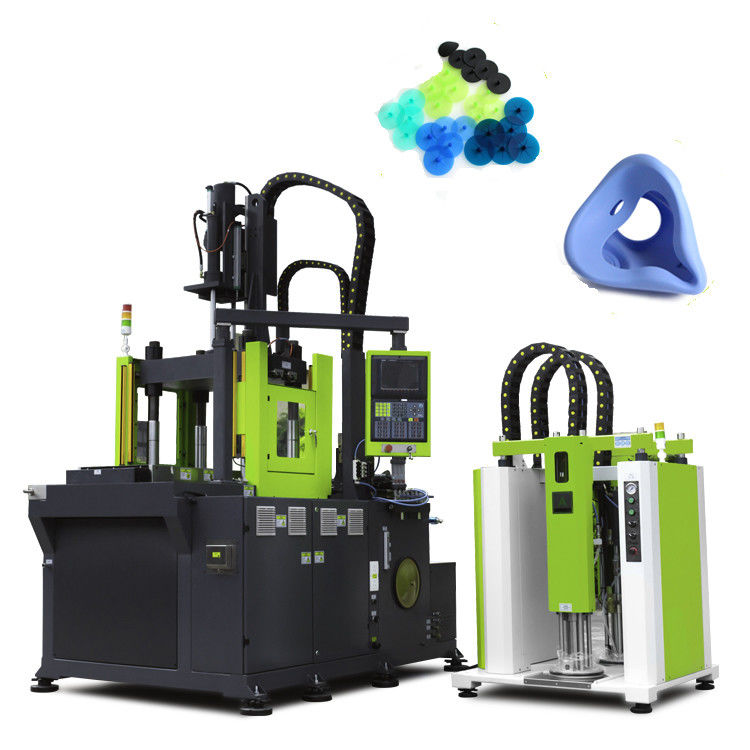

Vertical Injection Moulding Machine Silicone Products Making Machine

Whether it is liquid silica gel or solid silica gel, if we make silica gel products, there is always a problem - degumming. In order to solve the problem of degumming in the production of silica gel products, if there is a right direction, it will not be solved until the collapse. If the right direction is found, it will be solved soon. As for how to find the direction and method to solve the problem of reverse degumming, it is only through the points of man-machine material method ring to find the factors, among which the important ones are the molding parameters of the machine and the factors of the raw and auxiliary materials themselves.

To see whether the molding parameters of the machine affect the degumming of silica gel coating:

1. Curing time: the curing time is too short, resulting in no necessary cross-linking reaction between the silica gel and the plastic and hardware to be coated, resulting in degumming.

2. Molding temperature is too low: the principle is the same as above, which does not meet the reaction conditions between silica gel and plastic and hardware to be coated;

Then look at the influence of raw and auxiliary materials on whether silica gel is degummed:

1. The surface of the coated plastic and hardware parts did not receive the necessary primer treatment according to the specification. Due to the very stable physical properties of silica gel raw materials, it will not react with most of the materials, so the conventional molding process can not achieve the coating and bonding between silica gel, plastic and hardware. The surface of the coated plastic and hardware must be treated before the coating, and the typical treatment method is brush primer. The primer must be proportioned according to the requirements, evenly applied, and finished in the specified time. If any of the above 3 points is not completed according to the specification, it will lead to the degumming of silica gel coating.

2. The surface of the coated plastic and hardware parts was not cleaned. The dirt and oil on the surface will directly lead to the degumming of silica gel coating. Therefore, the surface of the coated plastic and hardware must be cleaned before the primer treatment. If the primer treatment has been completed, it must be well protected and properly stored to avoid pollution.

3. Silica gel raw material: if the content of vulcanizing agent in silica gel raw material is too little, or the vulcanizing agent is used incorrectly, or the raw material is not mixed evenly, or even the storage time of cut-out material is too long (more than 72h), it will lead to the degumming problem of silica gel coated products.

Machine Model Parameter


TYM-L5058 Vertical LSR injection molding machine
Injection Unit
Shot Volume165 g
Injection Rate30 g/s
Injection Pressure19.6 T
Clamping Unit
Clamping Force130 T
Opening Stroke250-550 mm
Tie-Bars Pace500*580 mm
Ejection Force7.8 T
Ejection Stroke150 mm
Others
Pump Pressure21 Mpa
Motor Power12.1 KW
Heater Power9 KW
Mould Orientation Ring DiameterΦ 100 mm
Machine Weight6 T
Machine Dimension2.5*1.6*3.6 m

TYM SERVICE

Pre -sale service* Provide investment budget and plant planning;
* Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service* Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service* Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
* After product upgrading, the upgrading work of previous users shall be given priority as required;
