Big Vertical Injection Moulding Machine

Minimum Order Quantity : >1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 50 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE/ISO Model Number: TYM-5058

Detail Information

Type: Vertical Certification: CE/ISO For Vertical Injection Moulding Machine
Product Name: Vertical Injection Moulding Machine Material: Liquid Silicone Rubber
Power(w): 12.1kw Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
High Light:

low pressure overmolding machine


cable overmolding machine

Product Description

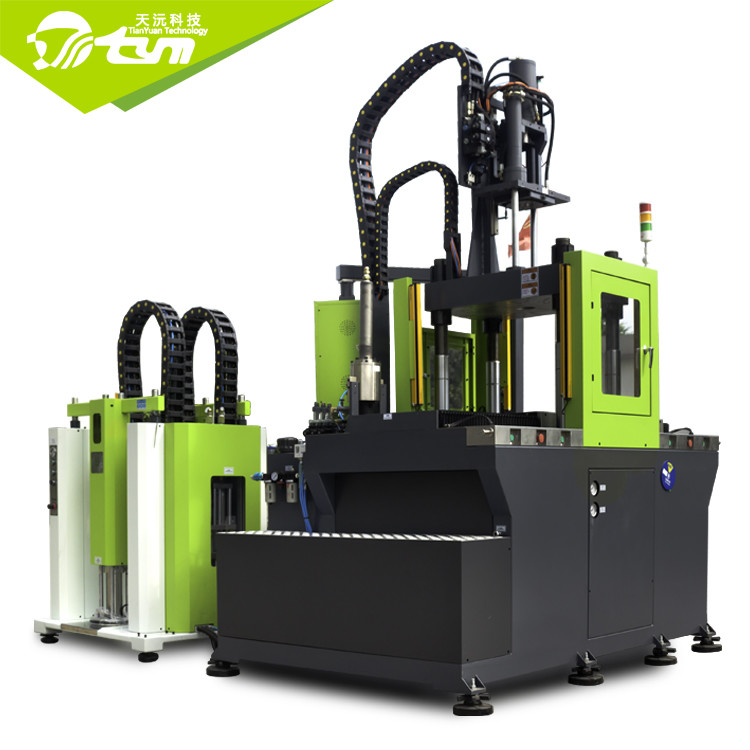

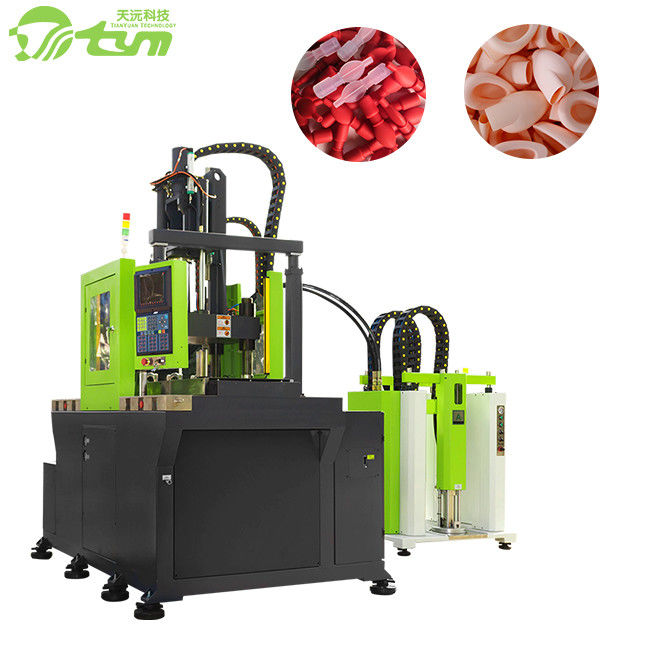

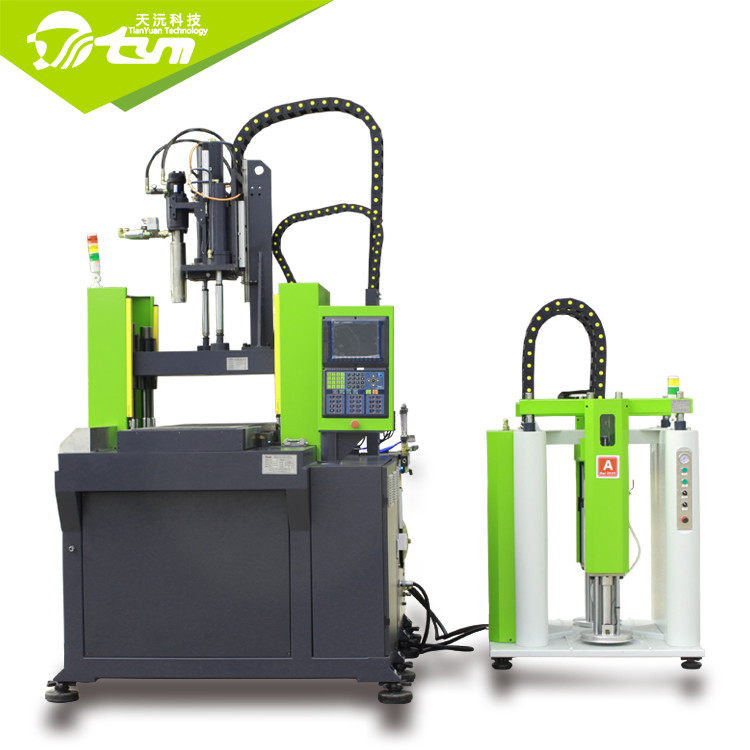

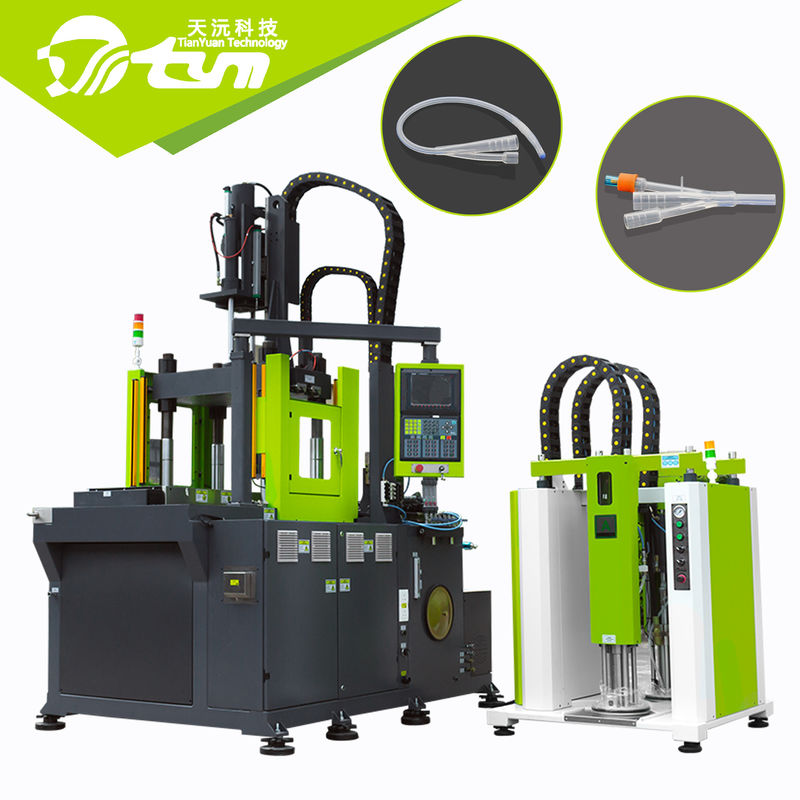

Vertical Injection Moulding Machine

Liquid silicon rubber is a kind of non-toxic, heat-resistant and high resilience flexible thermosetting material. Its rheological behavior mainly includes low viscosity, rapid curing, shear thinning and high thermal expansion coefficient.


LSR is a double liquid fast curing material with platinum as catalyst, which can be produced by injection molding, large-scale, fast curing and repetitive machinery. Its products are characterized by good thermal stability, cold resistance, excellent electrical insulation performance, and no toxic substances produced during combustion.


Therefore, it has become an irreplaceable material in the production and design of health products, automobiles, baby products, medical products, diving products, kitchen appliances and seals.


Machine Model Parameter

TYM-L5058 Vertical LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 130 T
Opening Stroke 250-550 mm
Tie-Bars Pace 500*580 mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Pump Pressure 21 Mpa
Motor Power 12.1 KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 6 T
Machine Dimension 2.5*1.6*3.6 m



Three main uses of medical silica gel products in the industry

1, Application of medical plastic surgery


At present, many young beauty lovers like to improve their appearance through some plastic methods, and medical silica gel products are a very important plastic material, which can be implanted into human tissues without inflammation and infection to the surrounding human tissues. Therefore, medical silica gel products are often used when implants need to be implanted into the human body, such as breast augmentation and nose augmentation.


2, Application of medical devices


Medical silica gel products can be divided into liquid and solid forms. At present, many medical device accessories in medical institutions are made of medical silica gel products. In addition, some commonly used silica gel sheets and pipe products in hospitals are mostly made of medical silica gel products. At present, many traditional medical devices have been basically replaced by silica gel materials.


3, Application of medical human organ replacement


At present, many countries have carried out in-depth research on the feasibility of replacing human organs with medical silica gel products. At present, experimental work has been carried out in many small-scale fields, and it is believed that in the future decades, medical silica gel products will be a breakthrough development and can directly replace human organs.


The discovery and development of medical silica gel products have played a very important role in the field of medicine, and helped countless people to regain health and beauty, and the scientific community has never stopped the research on the convenient medical silica gel products. At present, there are very wide practical applications in the three fields of plastic surgery and medical machinery, as well as in the implantation and replacement of human body Use.

Big Vertical Injection Moulding Machine 0
