130 Ton Vertical Injection Moulding Machine High Precision

Minimum Order Quantity : 1 SET Price : USD46000~USD53000
Packaging Details : International shipping standard packing Delivery Time : 45 working days
Supply Ability : 10 SETS per month
Place of Origin: China Brand Name: TYM
Certification: ISO, CE Model Number: TYM-L5058-2

Detail Information

Shot Volume: 165g / 300g Injection Rate: 30g/s
Injection Pressure: 700kg/c㎡ Clamping Force: 130T
Opening Stroke: 250-550mm Tie-Bars Space: 500*580mm
Ejection Force: 4.3T Ejection Stroke: 150mm
Motor Power: 12.1KW Machine Dimension: 2.4*1.6*3.4m
High Light:

low pressure overmolding machine

,

cable overmolding machine

Product Description

Vertical Injection Molding Machine High Capacity,Double Sliding, High Precision.

TYM in Guangzhou professional in Manufacture LSR injection molding machines more than 17 years, our double sliding vertical Injection Molding Machine have been widely used in the medical industry, such as medical foley catheters, medical balloon,  medical valve

TYM was established in 2002, 33000㎡ manufacture base, two wholly owned subsidiaries , TYM is the earliest manufacturer of liquid silicone injection molding solutions in China.
TYM has more than 50 patents and had rated as a national high-tech enterprise in 2013.
TYM has a complete set of solutions from mold design, machine supply and training for the machine.
TYM has cooperated with the four major organic silicon manufacturers in the world for many years and has rich experience for liquid silicone application in various industries.

The parameter of vertical double sliding130T direct pressure LSR injection molding machine

Injection Unit
Shot Volume165g (can be adjusted)
Injection Rate30 g/s
Injection Pressure700kg/cm³
Clamping Unit
Clamping Force130 T
Opening Stroke250-550mm
Tie-Bars Pace500*580
Ejection Force4.3 T
Ejection Stroke150 mm
Others
Motor Power12.1 KW
Pump Pressure21 Mpa
Machine Weight 5.3 T
Machine Dimension2.4*1.6*3.4 M

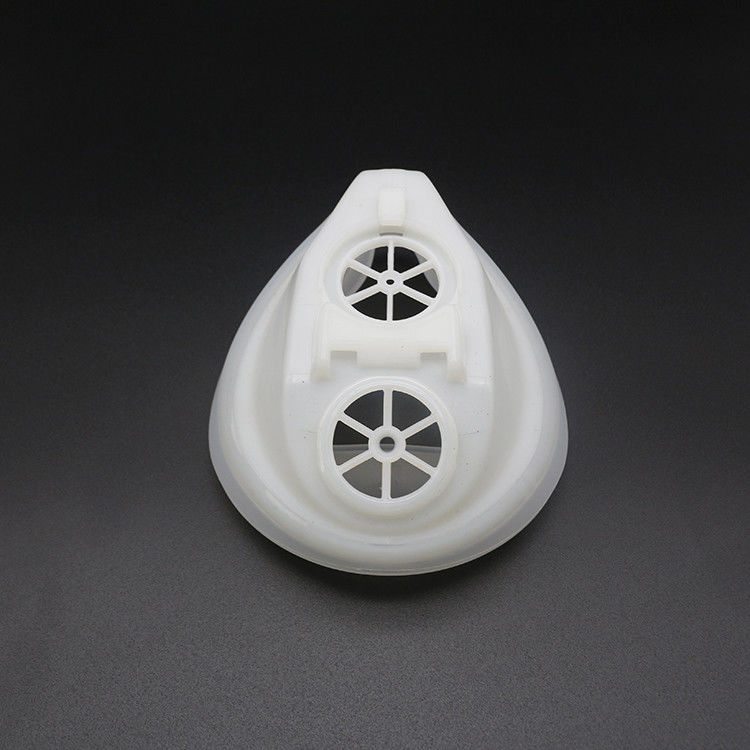

130 Ton  Vertical Injection Moulding Machine High Precision 0

Vertical LSR injection molding machine closes the mold downward.It has two style, single sliding board and double sliding board. Double sliding board can installed an upper moldboard and two lower moldboards in the same time and make the market more efficiency


OUR SERVICES

Tianyuan focus on customer service for more than ten years, we provide one year for free warranty, life-long maintenance and also provide service for personnel training, installation and debugging services for free.

Pre-sale service
According to the customer’s investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving, will provide matched mold and select suitable machine according to customer’s requirement.

On-purchase service
Enable to be familiar with the operation and maintenance of the TYM's machine.
1) Installation of LSR machine and new machine debugging service
2) Machine operator training.
3) Training of technicians.

After-sales service
1) Free training for the operation and maintenance independently.
2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for the instruction and will provide the technical guidance for free.
3) TYM will give priority to customer when the system on the LSR machine need to be upgraded.


TYM company

130 Ton  Vertical Injection Moulding Machine High Precision 1



TYM TEAM

130 Ton  Vertical Injection Moulding Machine High Precision 2



(1) The LSR injection molding machine workshop of YMT



130 Ton  Vertical Injection Moulding Machine High Precision 3

130 Ton  Vertical Injection Moulding Machine High Precision 4



(2) The Showroom of TYM

130 Ton  Vertical Injection Moulding Machine High Precision 5

130 Ton  Vertical Injection Moulding Machine High Precision 6



(3) The workshop for manufacturing the LSR molds

130 Ton  Vertical Injection Moulding Machine High Precision 7

130 Ton  Vertical Injection Moulding Machine High Precision 8

130 Ton  Vertical Injection Moulding Machine High Precision 9


(4) TYM Vertical Injection Molding Machine

130 Ton  Vertical Injection Moulding Machine High Precision 10

(6) TYM SERVICE NETWORK

130 Ton  Vertical Injection Moulding Machine High Precision 11
