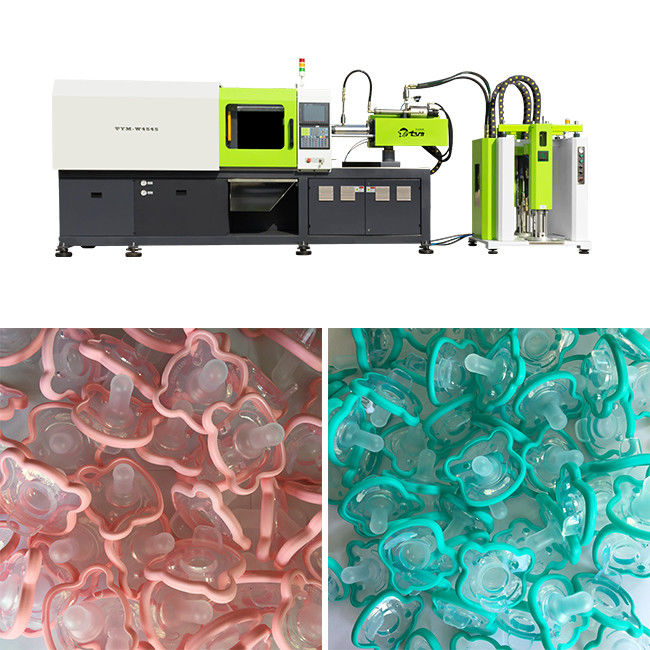

12.1KW Horizontal Silicone Injection Moulding Machine Silicon Manufactur Baby Nipple Machine

Minimum Order Quantity : >1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 50 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE/ISO Model Number: TYM-4545

Detail Information

Type: Horizontal Condition: New
Certification: CE/ISO Power(w): 12.1KW
Automatic: YES Product Name: 12.1KW Horizontal Silicone Injection Moulding Machine Silicon Manufactur Baby Nipple Machine
High Light:

horizontal molding machine

,

hydraulic rubber moulding machine

Product Description

12.1KW Horizontal Silicone Injection Moulding Machine Silicon Manufactur Baby Nipple Machine



TYM specialized in LSR Injection Molding Machine for more than 16 years and have a professional technical team.TYM has more than 50 patents and it is rated as a national high-tech enterprise,TYM has provided a large number of technical personnel for the training of various silicone products.





Machine Model Parameter


Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-W4545 148g 30g/s 700kg/cm2 130T 200-700mm 450*450mm 4.3T 150mm 21Mpa 5.2T 12.1KW 4.0*1.2*1.9m
TYM-W5050 270g 30g/s 700kg/cm2 150T 200-700mm 500*500mm 4.3T 150mm 21Mpa 5.3T 12.1KW 4.2*1.4*1.9m
TYM-W5555 270g 30g/s 700kg/cm2 160T 200-700mm 550*550mm 4.3T 150mm 21Mpa 5.6T 12.1KW 4.5*1.6*2.0m


TYM was established in 2002, 33000㎡ manufacture base, two wholly owned subsidiaries , TYM is the earliest manufacturer of liquid silicone injection molding solutions in China.
TYM has more than 50 patents and had rated as a national high-tech enterprise in 2013.
TYM has a complete set of solutions from mold design, machine supply and training for the machine.
TYM has cooperated with the four major organic silicon manufacturers in the world for many years and has rich experience for liquid silicone application in various industries.

12.1KW Horizontal Silicone Injection Moulding Machine Silicon Manufactur Baby Nipple Machine 0



TYM SERVICE

Pre -sale service * Provide investment budget and plant planning;
* Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service * Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service * Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
* After product upgrading, the upgrading work of previous users shall be given priority as required;
