Chinese Supplier LSR Injection Molding Machine For Medical Catheter
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
| Minimum Order Quantity : | 1 set | Price : | USD 49999-59999 per set |
|---|---|---|---|
| Packaging Details : | Plastic film | Delivery Time : | 30 working days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union | Supply Ability : | 100 sets per month |
| Place of Origin: | China | Brand Name: | TYM |
|---|---|---|---|
| Certification: | CE | Model Number: | TYM-W4545 |
|
Detail Information |
|||
| Product Name: | Horizontal LSR Injection Molding Machine Producing Baby Nipple Automatically | Opening Stroke: | 200-700mm |
|---|---|---|---|
| Shot Valume: | 165g | Tie-bar Space: | 450x450mm |
| Motor Power: | 12.1KW | Machine Weight: | 3.5T |
| Machine Dimension: | 4.1x1.6x2.0m | ||
| High Light: | rotary table injection molding machine,low pressure molding machine |
||
Product Description

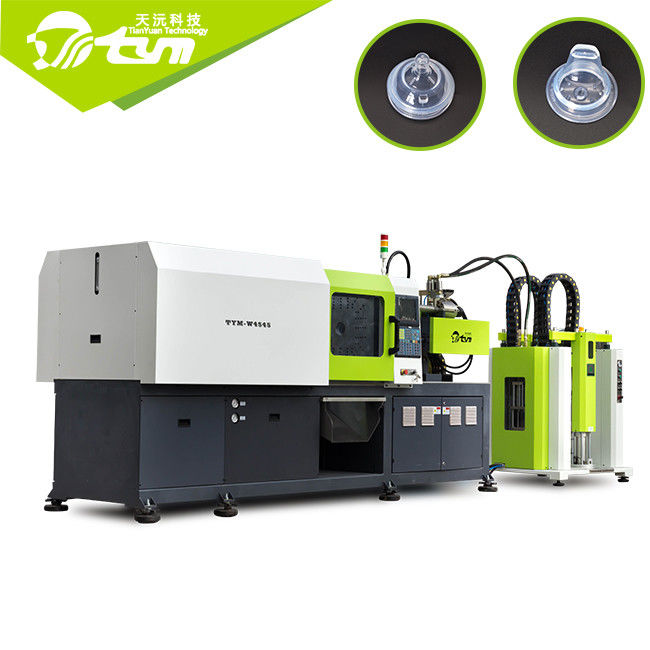

Horizontal LSR Injection Molding Machine Producing Baby Nipple Automatically
About LSR Parts offer:
Our LSR injection molding machine is widely used in medical industry, food industry, infant industry, diving industry, insulator industry and other LSR production field. Furthermore, with abundant technical strength,Tianyuan can design the LSR injection molding equipment exactly based on the customer's requirements, and can provide the turn-key solutions, such as the LSR feeding machine, LSR injection molding machine, LSR mixing system, color adding system, LSR mould and so on.
About TYM
Guangzhou Tianyuan Silicone Machine Technology Co., Ltd. is established in 2002, which specializes in designing and manufacturing the LSR automatic injection molding machine as well as the LSR mold.
TYM LSR injection molding machine has exported Europe and USD and more than 30 countries in the world. And we give the professional service for over 18 years. Our business scope includes lsr material supplier recommend and lsr mold and lsr machine. And TYM machine has passed CE test and our factory has got ISO9001 certification.
About Horizontal LSR Machine:

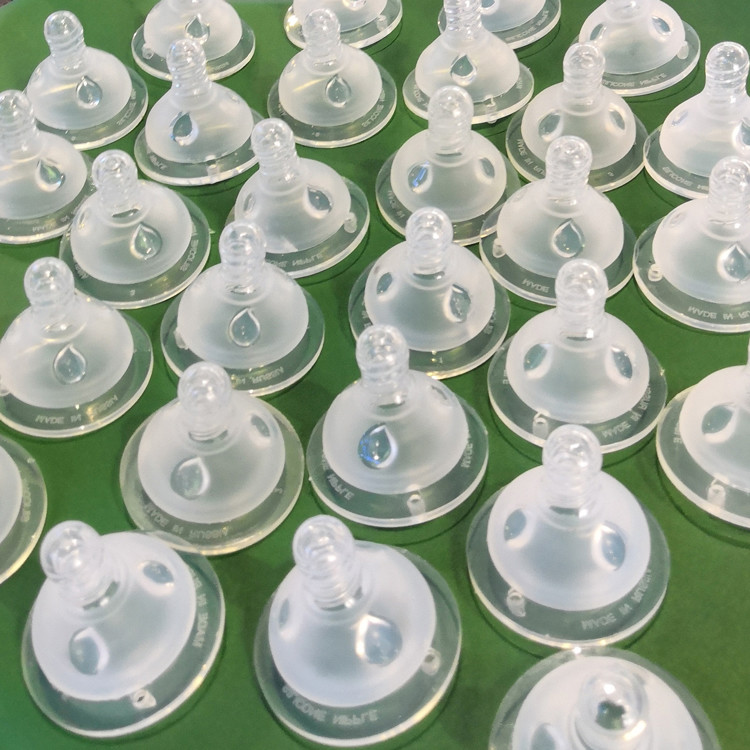

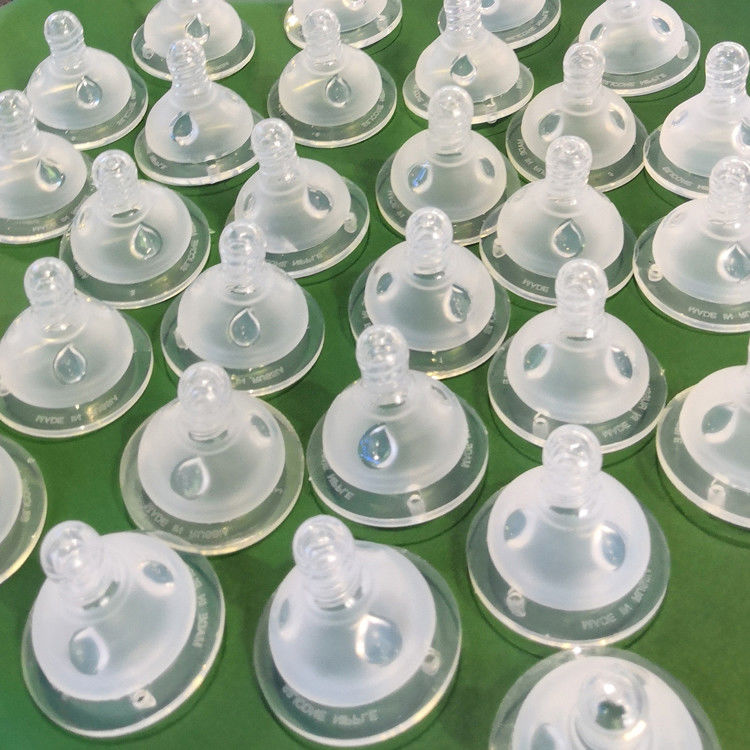

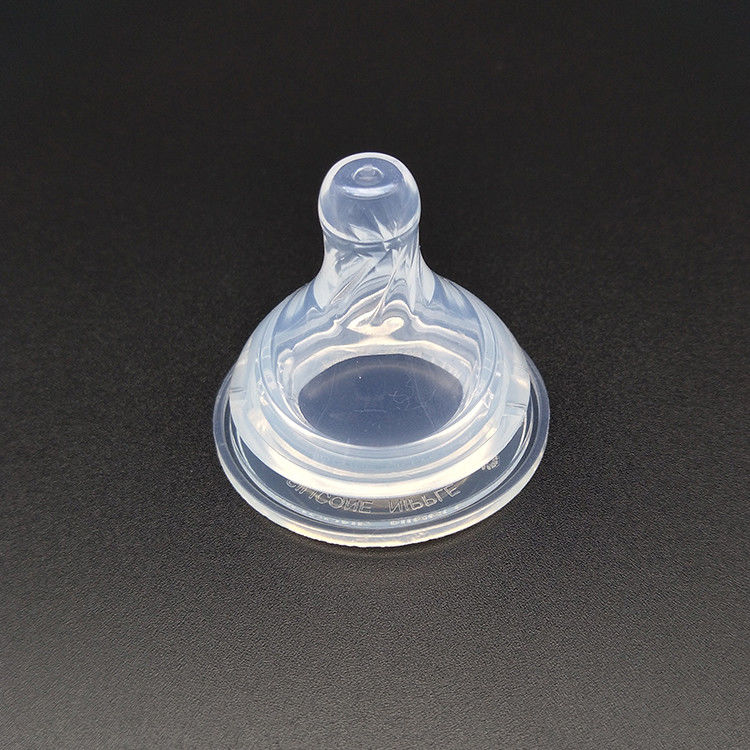

For horizontal lsr injection molding machine is suitable for producing lsr parts which can be blowing out automatically. Such as baby bottle, baby nipple, baby soother and so on. All of them can be produced automatically which improve the production efficiency.
| 1 | Newly-optimized integrated all-in-one design. |
| 2 | Meet multiple requirements on the automatic manufacturing technique for lsr products |
| 3 | Shorter the mold closing and opening time, improve the production efficiency |
| 4 | Remote control function |
| 5 | Multi-section mold closing and opening and injection, speed adjusting stepless |
Other style of horizontal machine:
1) Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
2) Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
3) Silicone high-voltage cable accessories,
4) Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
5) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
6) Silicone baking tool, cake mold, chocolate mold etc.
| ITEM | DESCRIPTION | UNIT | TYM-W4545 | TYM-W5050 | TYM-W5555 |
| Injection Unit | Shot Volume | g | 165 | 300 | 300 |
| Injection Rate | g/s | 30 | 30 | 30 | |
| Injection Pressure | Kg/cm2 | 700 | 700 | 700 | |
| Clamping Unit | Clamping Force | T | 130 | 150 | 160 |
| Opening Stroke | mm | 200-700 | 200-700 | 200-700 | |
| Tie-Bars Space | mm | 450*450 | 500*500 | 550*550 | |
| Ejection Force | T | 4.3 | 4.3 | 4.3 | |
| Ejection Stroke | mm | 150 | 150 | 150 | |
| Pump Pressure | Mpa | 21 | 21 | 21 | |
| Others | Motor Power | KW | 12.1 | 12.1 | 12.1 |
| Machine Weight | T | 5.2 | 5.3 | 5.6 | |
| Machine Dimension | m | 4.0*1.2*1.9 | 4.2*1.4*1.9 | 4.5*1.6*2.0 |
About service:
Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the
production process!
| The professional service from TYM | |
| Pre -sale service |
*Provide investment budget and plant planning; *Provide a whole set of solutions about machine and mold according to products that customers offered. |
| On-sales service | Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory. |
| After-sales service |
*Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems; *After product upgrading, the upgrading work of previous users shall be given priority as required; |
