Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | TYM |
| Certification: | CE/ISO9001 |
| Model Number: | TYM4545 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | »1 |
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 45 workdays |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 set year |
|
Detail Information |
|||
| Injction Pressure: | 700kg/cm2 | Clamping Force: | 130T |
|---|---|---|---|
| Product Name: | Automatic Injection Molding Machine For Non-toxic Liquid Silicone Baby Pacifier | Pump Pressure: | 21Mpa |
| Ejection Stroke: | 150mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
| High Light: | automated injection molding machine,hi tech injection moulding machine |
||
Product Description

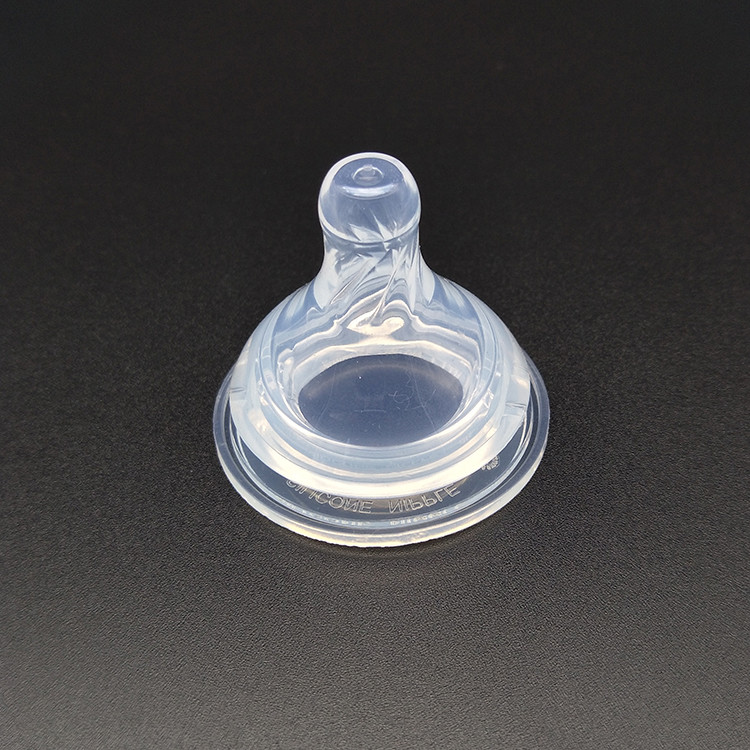

Automatic Injection Molding Machine For Non-toxic Liquid Silicone Baby Pacifier
The safety of liquid silicone materials and the process of forming non-polluting, has been widely used in the maternal and infant industry.Automatic Injection Molding Machine use Direct pressure mold opening and closing system. It’s more suitable for producing the LSR parts which can be automatically removed from the mold.
Machine Model Parameter
| Machine Model | Shot Volume | Injection Rate | Injection Pressure | Clamping Force | Opening Stroke | Tie-Bars Force | Ejection Force | Ejection Stroke | Pump Pressure | Machine Weight | Motor Power | Machine Dimension |
| TYM-W4545 | 148g | 30g/s | 700kg/cm2 | 130T | 200-700mm | 450*450mm | 4.3T | 150mm | 21Mpa | 5.2T | 12.1KW | 4.0*1.2*1.9m |
| TYM-W5050 | 270g | 30g/s | 700kg/cm2 | 150T | 200-700mm | 500*500mm | 4.3T | 150mm | 21Mpa | 5.3T | 12.1KW | 4.2*1.4*1.9m |
| TYM-W5555 | 270g | 30g/s | 700kg/cm2 | 160T | 200-700mm | 550*550mm | 4.3T | 150mm | 21Mpa | 5.6T | 12.1KW | 4.5*1.6*2.0m |
The Horizontal Liquid Injection Molding Machine adopts the mechanical special frame, the structure is stable and reliable, the appearance is beautiful and generous, uses the horizontal direction opening and closing mold, uses the servo motor and the import hydraulic pump to make the mechanical opening and closing mold faster, more accurate and safer, the double door safety switch, the horizontal opening and closing mold mode is suitable for the production of silica gel products with full automatic demoulding.
| Pre -sale service | *Provide investment budget and plant planning; *Provide a whole set of solutions about machine and mold according to products that customers offered. |
| On-sales service | *Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory. |
| After-sales service | *Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems; *After product upgrading, the upgrading work of previous users shall be given priority as required; |
Our Service & Advantages:
1. Reply your enquiry in 24 working hours.
2. More than 17 years experience to LSR injection molding machine in China.
3. Tianyuan can design the LSR injection molding equipment according to the customer's requirements, provide a whole set of solutions for the LSR equipments.
4. Our LSR injection molding machine is widely used in medical industry, food industry, infant industry , diving industry, insulator industry and other LSR production field.
5. According to the high quality, precise and reliable of the LSR injection molding machine, we help the customer to produce the refined LSR products and price ratio is in high performance in the LSR industry.
6. Welcome OEM and ODM.
