Vertical Lsr Auto Parts Making Machine Direct Pressure Mould Opening System

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : seaworthy packing Delivery Time : 35 work-days
Payment Terms : T/T, L/C Supply Ability : 50 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L5058-2

Detail Information

LSR Injection Molding Machine: LSR Injection Molding Machine Machine: Auto Parts Making Machine-vertical Liquid Silicone Injection Machine
Useful: LSR Machine For Medical Catheter Use Material: Liquid Silicone Rubber
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New
High Light:

auto parts manufacturing machines

,

automobile spare parts making machine

Product Description

Auto Parts Making Machine-vertical liquid silicone injection machine



TYM supply Auto Parts Making Machine more than 17 years, it can produce the silicone waterproof wire harness, o-ring, gasket, LED photoscope, Oil-spitting silicone auto parts.



TYM uses the liquid silicone rubber injection molding to create a full range of precision, near flashless silicone parts and over-mold assemblies. Liquid silicone rubber molding has several advantages, including:



High-volume production: Advanced LSR materials offer manufacturers the opportunity for cost-effective, high-volume production of complex liquid silicone injection molding parts.

Low chance of contamination: The LSR fabrication process takes place in a closed system, which reduces the possibility of contamination because the operator does not have to touch the material, and it is not exposed to the environment.

Higher level of automation: While the silicone gum rubber process is very labor intensive, LSR allows for the automation of injection equipment, tooling, and ejection equipment. This results in minimal labor cost to monitor the system and change out material drums.

Quick cycle time: The cycle time for LSR components depends on the following elements:

Eliminates flash and waste: Liquid silicone rubber does not produce scrap from flash because of the ability to create molds that operate flashless.

The temperature of the mold and possible inserts.

The temperature of the material when it reaches the mold.

The geometry of the component.

The general vulcanization characteristics.

The chemistry of the curing material.

Silastic LSR allows for faster curing by preheating the injection barrel and cold runner to 40-80°C.



Enhanced safety: The automation options make it unnecessary for operators to enter the molding area. Parts are removed from the injection-molding machine with conveyor belts, chutes or robots, which reduces the chances of burns or other safety concerns.

Liquid silicone rubber injection molding provides customers with a consistent, efficient and cost-effective processing method appropriate for a wide variety of applications.

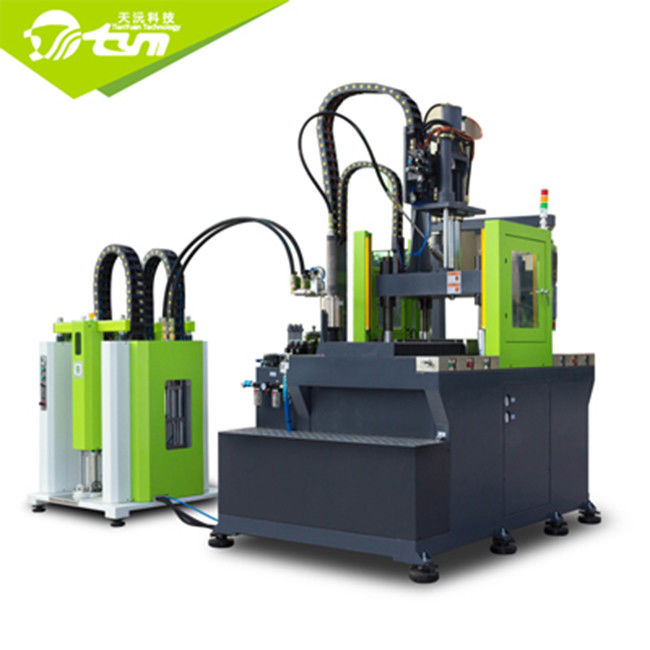

Vertical Lsr Auto Parts Making Machine Direct Pressure Mould Opening System 0

Mechanical Characteristics for TYM-L5058-2

TYM-L5058 Vertical LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 130 T
Opening Stroke 250-550 mm
Tie-Bars Pace 500*580 mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 12.1 KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 5.2 T
Machine Dimension 2.5*1.6*3.6 m



LSR injection molding industry application

Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.



Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.



Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.



Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.

Vertical Lsr Auto Parts Making Machine Direct Pressure Mould Opening System 1

Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.



Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.



Vertical Lsr Auto Parts Making Machine Direct Pressure Mould Opening System 2
