Vertical Injection Moulding Machine , Silicone Sealing / Gasket Making Machine

Product Details:
Place of Origin: China
Brand Name: TYM
Certification: CE
Model Number: TYM-L5058-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: seaworthy packing
Delivery Time: 35 work-days
Payment Terms: T/T, L/C
Supply Ability: 50 sets per month

Detail Information

LSR Injection Molding Machine: LSR Injection Molding Machine Machine: Vertical Silicone Auto Parts Making Machine-silicone Sealing/gasket
Useful: LSR Machine For Medical Catheter Use Material: Liquid Silicone Rubber
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

auto parts manufacturing machines

,

automobile spare parts making machine

Product Description

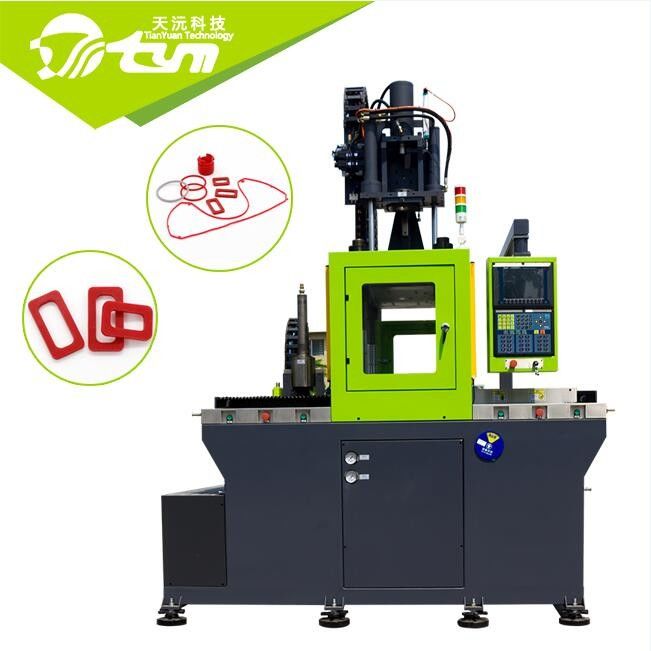

Vertical Silicone Auto Parts Making Machine-silicone sealing/gasket



TYM Vertical Silicone Auto Parts Making Machine-LIM injection machine, Get High Quality Parts Quickly, supply LSR machine and mold for the silicone auto parts.

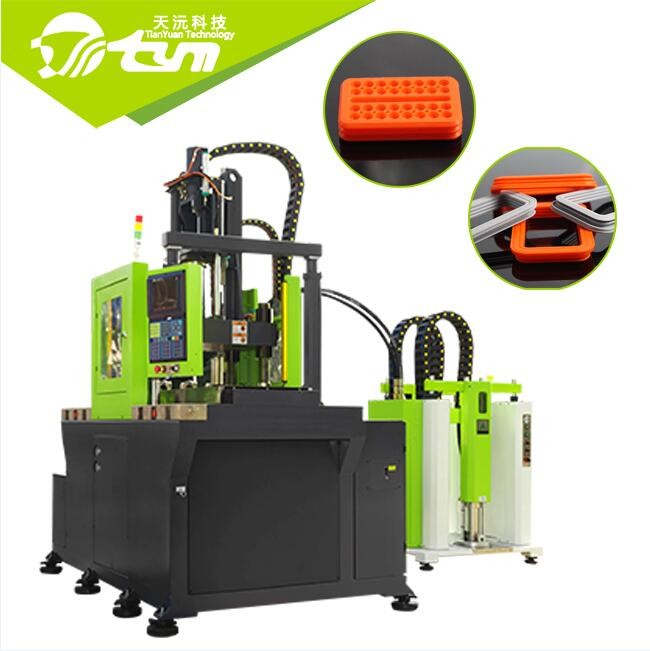

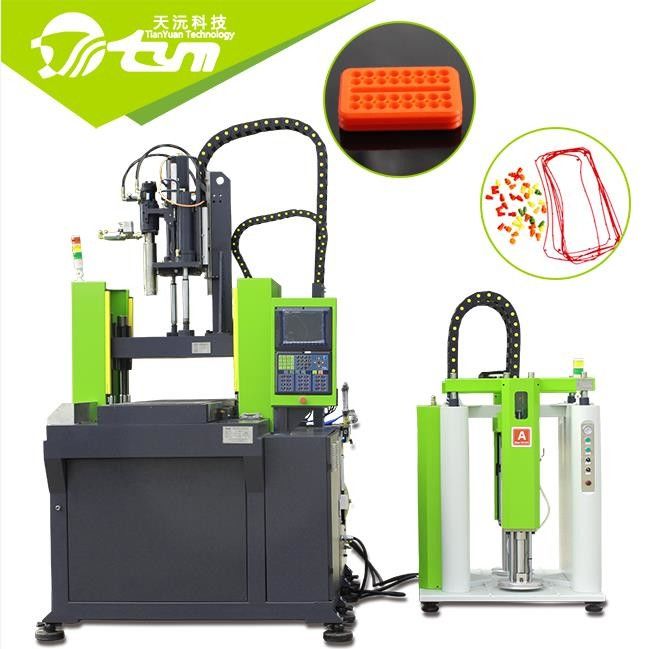

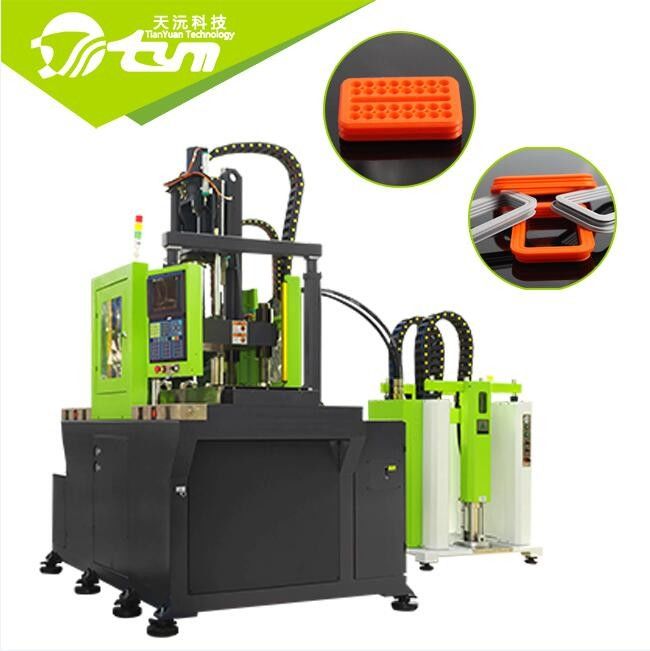

Vertical  Liquid Silicone Rubber (LSR) Injection Molding Machine-TYM-L5058-2

Direct pressure mould opening and closing system, horizontal injection structure, it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.



The main feature of the vertical LSR molding machine:

* Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster and steadier.

* Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.

* Meet the requirements on multi-station production

* High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-savingly.

Vertical Injection Moulding Machine , Silicone Sealing / Gasket Making Machine 0

Mechanical Characteristics for TYM-L5058-2

TYM-L5058 Vertical LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 130 T
Opening Stroke 250-550 mm
Tie-Bars Pace 500*580 mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 12.1 KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 5.2 T
Machine Dimension 2.5*1.6*3.6 m



LSR injection molding industry application

Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.



Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.



Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.



Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.

Vertical Injection Moulding Machine , Silicone Sealing / Gasket Making Machine 1

Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.



Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.



Vertical Injection Moulding Machine , Silicone Sealing / Gasket Making Machine 2
