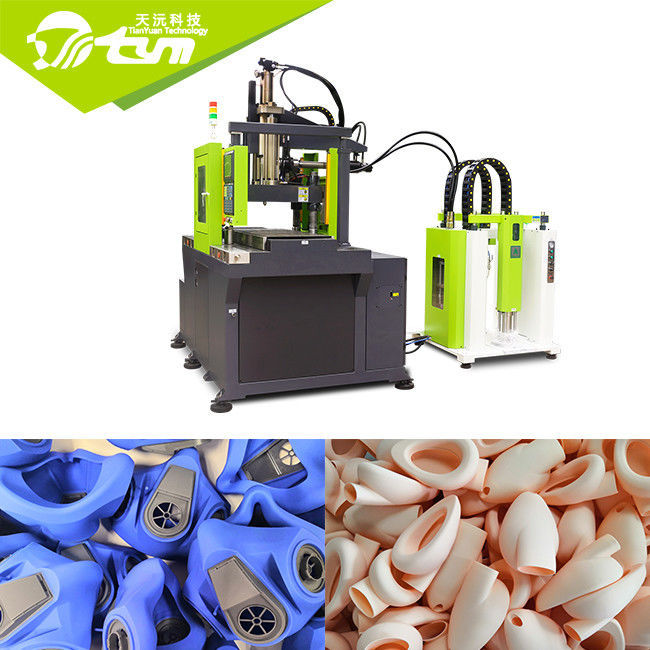

Vertical Injection Molding Machine Silicone Injection Molding Machine

Minimum Order Quantity : 1 SET Price : USD46000~USD53000
Packaging Details : International shipping standard packing Delivery Time : 45 working days
Supply Ability : 10 SETS per month
Place of Origin: China Brand Name: TYM
Certification: ISO, CE Model Number: TYM-L5058-2

Detail Information

Shot Volume: 165g / 300g Clamping Force: 130T
Tie-Bars Space: 500*580mm Ejection Force: 4.3T
Motor Power: 12.1KW Machine Dimension: 2.4*1.6*3.4m
Keyword: Vertical Injection Molding Machine Silicone Injection Molding Machine
High Light:

low pressure overmolding machine

,

cable overmolding machine

Product Description

Vertical Injection Molding Machine Silicone Injection Molding Machine

Liquid silica gel mold is a kind of thermosetting plastic mold. Liquid silica gel can be used as the molding material. It can be sent to the silica gel injection machine through a special mixing system, and injected into the heated liquid silica gel mold by the injection machine at a certain pressure and speed. The desired silica gel product can be obtained.

Hot runner mold, also known as runner free mold, is a mold that uses a heating device to keep the melt in the runner from solidifying

The parameter of vertical double sliding130T direct pressure LSR injection molding machine

Injection Unit
Shot Volume 165g (can be adjusted)
Injection Rate 30 g/s
Injection Pressure 700kg/cm³
Clamping Unit
Clamping Force 130 T
Opening Stroke 250-550mm
Tie-Bars Pace 500*580
Ejection Force 4.3 T
Ejection Stroke 150 mm
Others
Motor Power 12.1 KW
Pump Pressure 21 Mpa
Machine Weight  5.3 T
Machine Dimension 2.4*1.6*3.4 M



The nozzle of cold runner mould is thin and cooled by water circulation. The runner plate should be used in production, which is more expensive than that of hot runner. However, the cold runner die can reduce the generation of waste materials, save raw materials, and reduce the cost of production; while the hot runner die is relatively simple in design, low in production cost, and produces a lot of waste materials in the production process, most of which are used to produce large products

OUR SERVICES

Tianyuan focus on customer service for more than ten years, we provide one year for free warranty, life-long maintenance and also provide service for personnel training, installation and debugging services for free.

Pre-sale service
According to the customer’s investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving, will provide matched mold and select suitable machine according to customer’s requirement.

On-purchase service
Enable to be familiar with the operation and maintenance of the TYM's machine.
1) Installation of LSR machine and new machine debugging service
2) Machine operator training.
3) Training of technicians.

After-sales service
1) Free training for the operation and maintenance independently.
2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for the instruction and will provide the technical guidance for free.
3) TYM will give priority to customer when the system on the LSR machine need to be upgraded.


TYM company

Vertical Injection Molding Machine Silicone Injection Molding Machine 0



TYM TEAM

Vertical Injection Molding Machine Silicone Injection Molding Machine 1



(1) The LSR injection molding machine workshop of YMT



Vertical Injection Molding Machine Silicone Injection Molding Machine 2

Vertical Injection Molding Machine Silicone Injection Molding Machine 3



(2) The Showroom of TYM

Vertical Injection Molding Machine Silicone Injection Molding Machine 4

Vertical Injection Molding Machine Silicone Injection Molding Machine 5



(3) The workshop for manufacturing the LSR molds

Vertical Injection Molding Machine Silicone Injection Molding Machine 6

Vertical Injection Molding Machine Silicone Injection Molding Machine 7

Vertical Injection Molding Machine Silicone Injection Molding Machine 8


(4) TYM Vertical Injection Molding Machine

Vertical Injection Molding Machine Silicone Injection Molding Machine 9

(6) TYM SERVICE NETWORK

Vertical Injection Molding Machine Silicone Injection Molding Machine 10
