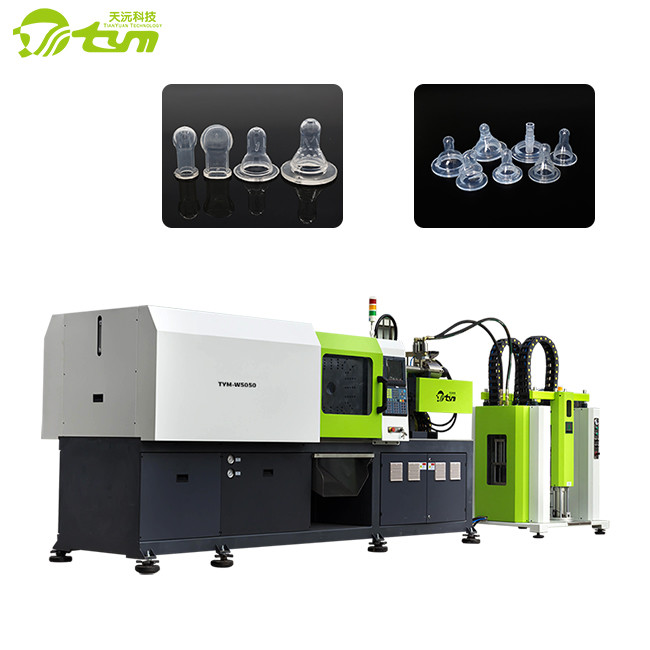

Fully Automatic Silicone Injection Molding Machine For Baby Feeding Products
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
|Minimum Order Quantity :||1 SET||Price :||USD43,000~USD50,000|
|Packaging Details :||International shipping standard packing||Delivery Time :||45 working days|
|Payment Terms :||L/C, D/A, D/P, T/T||Supply Ability :||10 SETS per month|
|Place of Origin:||China||Brand Name:||TYM|
|Certification:||ISO, CE||Model Number:||W4545|
|Shot Volume:||148g||Injection Rate:||30g/s|
|Injection Pressure:||700kg/cm²||Clamping Force:||130T|
|Opening Stroke:||200-700mm||Tie-Bars Space:||450*450mm|
|Ejection Force:||4.3T||Motor Power:||12.1KW|
700kg/Cm2 Silicone Injection Molding machine,
12.1KW Silicone Injection Molding machine,
700mm horizontal molding machine
1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.
2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.
4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.
5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.
6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.
7) Precise cold runner LSR mould, which can make the LSR product producing with higher-quality, higher efficiency, longer life, save more production cost.
The Horizontal LSR machine for the applicable scope:
1) Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
2) Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
3) Silicone high-voltage cable accessories,
4) Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
5) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
6) Silicone baking tool, cake mold, chocolate mold etc.
TYM machine has passed CE test and our factory has got ISO9001 certification.Guangzhou Tianyuan Silicone Machine Technology Co., Ltd could offer whole set solution for lsr injection molding.And we give the professional service for over 18 years.Our business scope includes lsr material supplier recommend and lsr mold and lsr machine.
Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the
|The professional service from TYM|
|Pre -sale service||
* Provide investment budget and plant planning;
* Provide a whole set of solutions about machine and mold according to products that customers offered.
|On-sales service||Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.|
* Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
* After product upgrading, the upgrading work of previous users shall be given priority as required;
