Silicone Covers Automobile Spare Parts Making Machine 1 Year Warranty

Minimum Order Quantity : 1 set Price : USD49999-47999 per set
Packaging Details : Plastic film Delivery Time : 30 days
Payment Terms : L/C, D/P, T/T Supply Ability : 10 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L5058

Detail Information

Product Name: Auto Parts Making Machine To Make Silicone Covers Silicone Injection Moulding Machine Tie-bar Space: 500x580mm
Clamping Force: 130T Machine Weight: 3.9T
Warranty: 1 Year
High Light:

gasket making machine

,

automobile spare parts making machine

Product Description

Auto Parts Making Machine To Make Silicone Covers Silicone Injection Moulding Machine

Characteristics of silica gel materials



A. silica gel materials are usually gelatinous, somewhat similar to rubber clay, colorless, translucent and tasteless.

B. Its main characteristics are high temperature (300 ° C) and low temperature (low-100 ° C). It is currently resistant to cold and high temperature rubber. It has excellent electrical insulation, high stability to thermal oxidation and ozone, and chemical inertness. Big. The disadvantages are low mechanical strength, poor oil resistance, solvent resistance and acid-base resistance, difficult to vulcanize and relatively expensive. Service temperature: - 60 ° C - + 200 ° C. The above is the description of silicone rubber in the manual.

C. Operating temperature: as mentioned above, it is usually set at - 40 ℃ - 200 ℃, and can reach 230 ℃ in a short time.

D. Aging problem: oil resistance, poor acid and alkali resistance, little to do with stress.

E. Adhesive problem: before surface treatment, in addition to using silicone products as adhesive and part of silicone resin bonding, other parts must be surface activated and vulcanized surface can be cured. Any substance that can be vulcanized or crosslinked with rubber is collectively referred to as vulcanizing agent, also known as crosslinking agent. There are many types of vulcanizers, and they are still increasing. Sulfurizers used include sulfur, selenium, tellurium, sulfur compounds, metal oxides, peroxides, resins, terpenes and amines.

F. Material hardness: in the domestic market, theoretically, rubber parts can choose shore hardness between 10 and 80 degrees. It's easy to see that it's usually in the range of 20 to 70 degrees, usually 40 to 50 degrees.



The professional service from TYM
Pre -sale service

*Provide investment budget and plant planning;

*Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

*Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

*After product upgrading, the upgrading work of previous users shall be given priority as required;



 Vertical Liquid Silicone Rubber (LSR) injection molding machine

Closing the mould downward, two kinds of models can be chose – single sliding board and double sliding board. For double sliding board LSR machine, one upper moldboard and two lower moldboards are installed, which improves the production efficiency.

The sliding out structure on the machine makes the production more conveniently and more safely. Also the vertical mould opening and closing is more suitable for producing the overmold (inmold) LSR parts which has inserts.



ITEM DESCRIPTION UNIT TYM-L2428 TYM-L4048 TYM-L5058 TYM-L6068
Injection Unit Shot Volume g 6 165 165 300
Injection Rate g/s 30 30 30 30
Injection Pressure Kg/cm2 700 700 700 700
Clamping Unit Clamping Force T 50 95 130 150
Opening Stroke mm 100-400 250-550 250-550 250-550
Tie-Bars Space mm 240*280 400*480 500*580 600*680
Ejection Force T 4.3 4.3 4.3 4.3
Ejection Stroke mm 150 150 150 150
Pump Pressure Mpa 21 21 21 21
Others Motor Power KW 12.1 12.1 12.1 21
Machine Weight T 2.2 4.7 5.3 5.5
Machine Dimension m 1.4*1.5*3.15 2.2*1.5*3.4 2.5*1.6*3.4 2.7*1.7*3.4



     TYM machine features

1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.

2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.

3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.

4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.

5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.

6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.

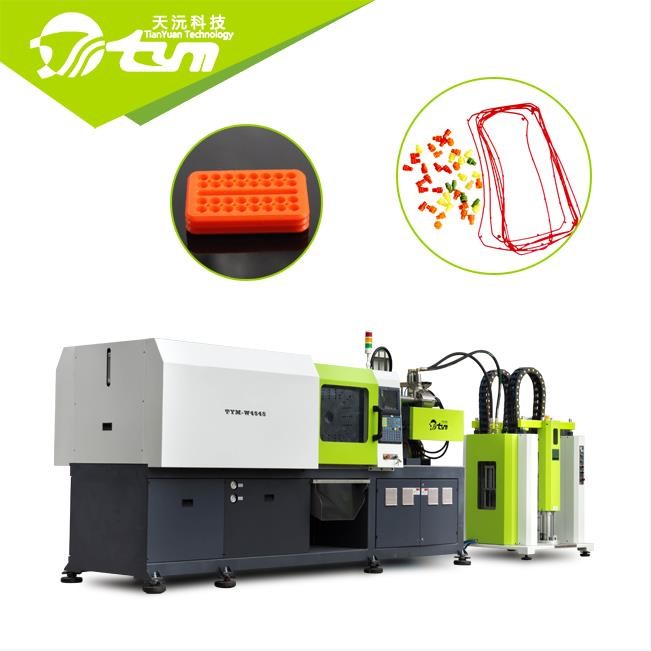

Silicone Covers Automobile Spare Parts Making Machine 1 Year Warranty 0
