Chinese Supplier LSR Injection Molding Machine For Medical Catheter
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
| Minimum Order Quantity : | 1 set | Price : | USD46999-49999/set |
|---|---|---|---|
| Packaging Details : | Film package | Delivery Time : | 30 days |
| Payment Terms : | L/C, D/P, T/T | Supply Ability : | 100 sets/month |
| Place of Origin: | China | Brand Name: | TYM |
|---|---|---|---|
| Certification: | CE | Model Number: | TYM-W4545 |
|
Detail Information |
|||
| Products Name: | Automatic Silicone Baby Nipple Lsr Injection Molding Machine | Shot Volume: | 165g |
|---|---|---|---|
| Clamping Force: | 130T | Openning Stroke: | 200-700mm |
| Tie-bar Space: | 450x450mm | Motor Power: | 12.1KW |
| Machine Weight: | 3.5T | Machine Dimension: | 4.1x1.6x2.0m |
| High Light: | rotary table injection molding machine,low pressure molding machine |
||
Product Description

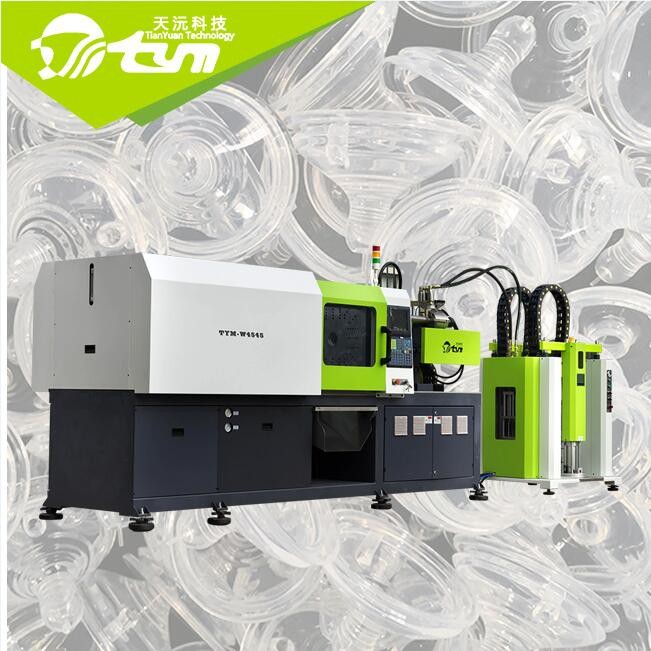

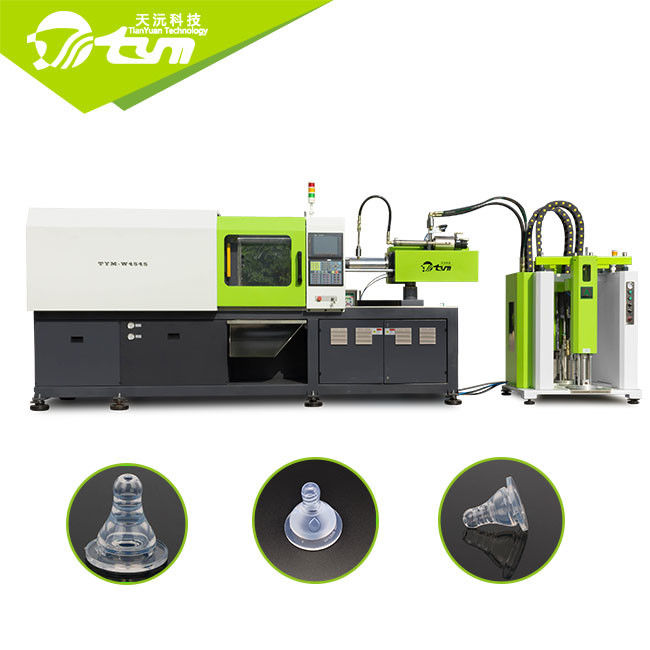

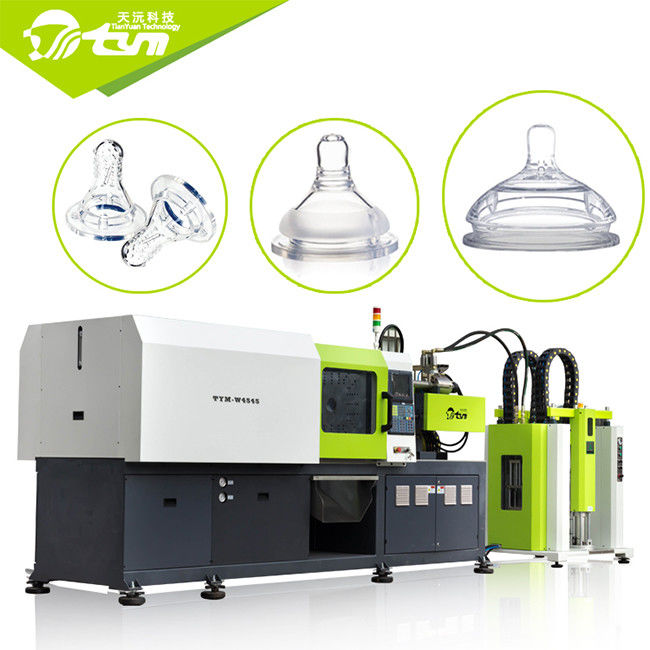

Automatic Silicone Baby Nipple Lsr Injection Molding Machine
About TYM
TYM LSR injection molding machine has exported Europe and USD and more than 30 countries in the world. And we give the professional service for over 18 years. Our business scope includes lsr material supplier recommend and lsr mold and lsr machine. And TYM machine has passed CE test and our factory has got ISO9001 certification.
About Machine.
1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.
2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.
4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.
5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.
6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.

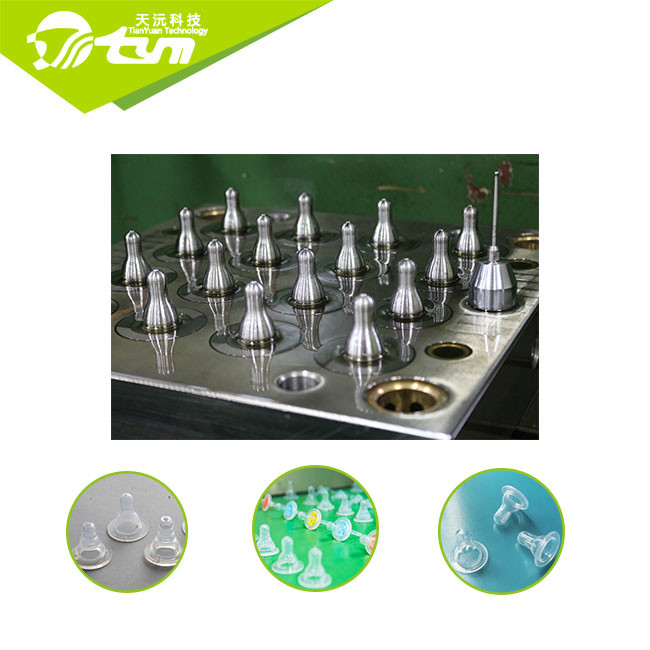

7) Precise cold runner LSR mould, which can make the LSR product producing with higher-quality, higher efficiency, longer life, save more production cost.
The Horizontal LSR machine for the applicable scope:
1) Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
2) Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
3) Silicone high-voltage cable accessories,
4) Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
5) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
6) Silicone baking tool, cake mold, chocolate mold etc.
The other style horizontal lsr machine
| ITEM | DESCRIPTION | UNIT | TYM-W4545 | TYM-W5050 | TYM-W5555 |
| Injection Unit | Shot Volume | g | 165 | 300 | 300 |
| Injection Rate | g/s | 30 | 30 | 30 | |
| Injection Pressure | Kg/cm2 | 700 | 700 | 700 | |
| Clamping Unit | Clamping Force | T | 130 | 150 | 160 |
| Opening Stroke | mm | 200-700 | 200-700 | 200-700 | |
| Tie-Bars Space | mm | 450*450 | 500*500 | 550*550 | |
| Ejection Force | T | 4.3 | 4.3 | 4.3 | |
| Ejection Stroke | mm | 150 | 150 | 150 | |
| Pump Pressure | Mpa | 21 | 21 | 21 | |
| Others | Motor Power | KW | 12.1 | 12.1 | 12.1 |
| Machine Weight | T | 5.2 | 5.3 | 5.6 | |
| Machine Dimension | m | 4.0*1.2*1.9 | 4.2*1.4*1.9 | 4.5*1.6*2.0 |
Welcome to consult and visit us.
