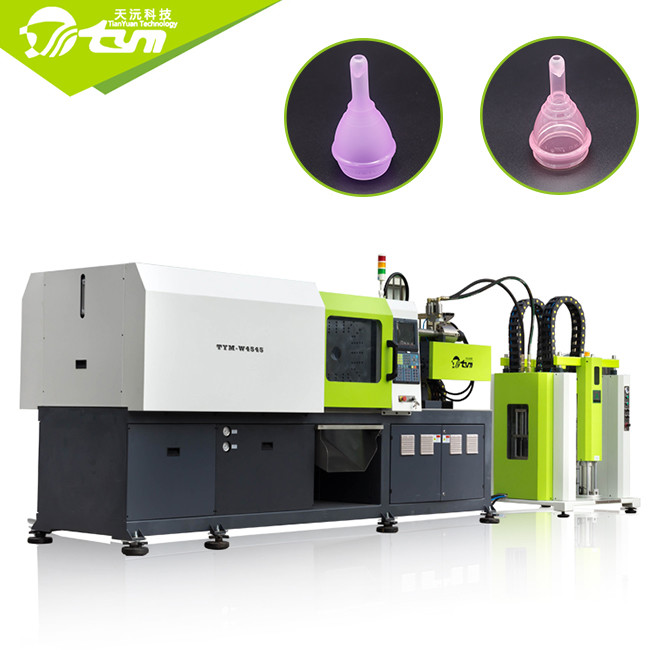

Reusable Silicone Injection Molding Machine , Soft Menstrual Period Cup 3d Injection Molding Machine

Minimum Order Quantity : »1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 100 set year
Place of Origin: China Brand Name: TYM
Certification: CE/ISO9001 Model Number: TYM4545

Detail Information

Injection Pressure: 700kg/cm2 After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support
Clamping Force: 130T Product Name: Menstrual Cup Manufacturing Machine For Silicone Medical Menstrual Cup Reusable Menstrual Cup
Tie-Bars Space: 450*450mm Opening Stroke: 200-700mm
High Light:

menstrual cup making machine


injection moulding equipment

Product Description

Menstrual cup manufacturing machine For Silicone Medical Menstrual Cup Reusable Menstrual Cup


TYM has more than 50 patents and it is rated as a national high-tech enterprise,TYM has provided a large number of technical personnel for the training of various silicone products, well known as the "Harvard University” in silicone industry.TYM has a complete set of solutions from mold design, Menstrual cup manufacturing machine and personnel training.

Reusable Silicone Injection Molding Machine , Soft Menstrual Period Cup 3d Injection Molding Machine 0

Machine Model Parameter

Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-W4545 148g 30g/s 700kg/cm2 130T 200-700mm 450*450mm 4.3T 150mm 21Mpa 5.2T 12.1KW 4.0*1.2*1.9m
TYM-W5050 270g 30g/s 700kg/cm2 150T 200-700mm 500*500mm 4.3T 150mm 21Mpa 5.3T 12.1KW 4.2*1.4*1.9m
TYM-W5555 270g 30g/s 700kg/cm2 160T 200-700mm 550*550mm 4.3T 150mm 21Mpa 5.6T 12.1KW 4.5*1.6*2.0m

Menstruation Cup Four Advantages

Health and hygiene-The shape of the menstrual cup is consistent with the female vaginal structure, and the action is not afraid of side leakage.

Not stuffy-Use vacuum to increase the internal pressure of the air, use the menstrual cup without displacement.

Non-sensible period- Soft silicone material with­out discomfort, pressure valve drainage.

Not leaking-Without any chemica additives, it will reduce the growth of bacteria and will not damage the vaginal wall.


Advanced LSR materials offer manufacturers the opportunity for cost-effective, high-volume production of complex liquid silicone injection molding parts.

Low chance of contamination: The LSR fabrication process takes place in a closed system, which reduces the possibility of contamination because the operator does not have to touch the material, and it is not exposed to the environment.

  LSR Menstrual Cup Sanitary Tampon
Comfort Comfort and insensitivity Muggy ordinary
Safety FDA certification Carcinogenesis by fluorescent agents Risk of toxic shock
Material Medical silicone Cotton Cotton
environmental protection Recycle Pollution Pollution
exercise Fit Unsuited Fit
Consumption expenditure Low High High


Pre -sale service *Provide investment budget and plant planning;
*Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service *Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service *Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
*After product upgrading, the upgrading work of previous users shall be given priority as required;
