O Ring / Auto Parts Liquid Injection Molding Machine Mechanical Frame Reliable

Minimum Order Quantity : »1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 100 set year
Place of Origin: China Brand Name: TYM
Certification: CE/ISO9001 Model Number: TYM4545

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support
Power(kw): 12.1 Opening Stroke: 200-700mm
Style: Horizontal Clamping Force: 130T
Product Name: O Ring Liquid Injection Molding Machine /Auto Parts Inudstry
High Light:

electric injection moulding machine

,

servo injection moulding machine

Product Description

O Ring Liquid Injection Molding Machine /Auto Parts Inudstry

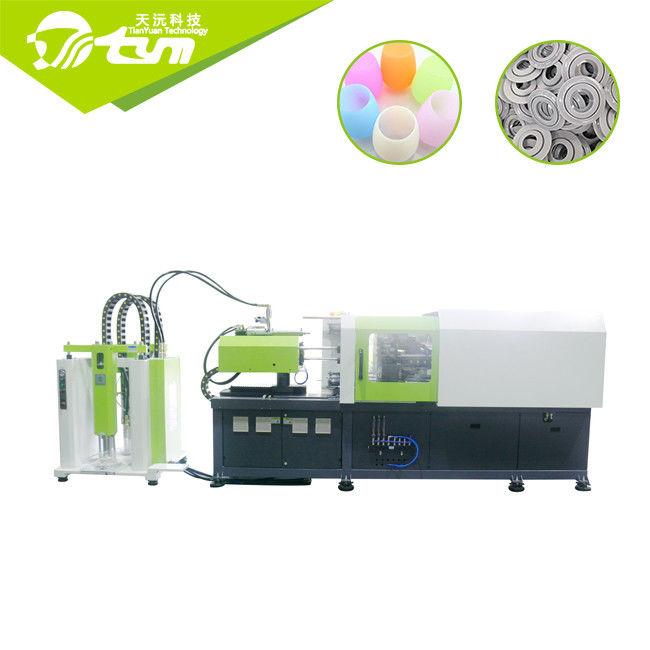

The Horizontal Liquid Injection Molding Machine adopts the mechanical special frame, the structure is stable and reliable, the appearance is beautiful and generous, uses the horizontal direction opening and closing mold, uses the servo motor and the import hydraulic pump to make the mechanical opening and closing mold faster, more accurate and safer, the double door safety switch, the horizontal opening and closing mold mode is suitable for the production of silica gel products with full automatic demoulding.

O Ring / Auto Parts Liquid Injection Molding Machine Mechanical Frame Reliable 0

O Ring / Auto Parts Liquid Injection Molding Machine Mechanical Frame Reliable 1





Machine Model Parameter



Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-W4545 148g 30g/s 700kg/cm2 130T 200-700mm 450*450mm 4.3T 150mm 21Mpa 5.2T 12.1KW 4.0*1.2*1.9m
TYM-W5050 270g 30g/s 700kg/cm2 150T 200-700mm 500*500mm 4.3T 150mm 21Mpa 5.3T 12.1KW 4.2*1.4*1.9m
TYM-W5555 270g 30g/s 700kg/cm2 160T 200-700mm 550*550mm 4.3T 150mm 21Mpa 5.6T 12.1KW 4.5*1.6*2.0m


O Ring / Auto Parts Liquid Injection Molding Machine Mechanical Frame Reliable 2

Pre -sale service *Provide investment budget and plant planning;
*Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service *Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service *Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
*After product upgrading, the upgrading work of previous users shall be given priority as required;

O Ring / Auto Parts Liquid Injection Molding Machine Mechanical Frame Reliable 3

Our Service & Advantages:
1. Reply your enquiry in 24 working hours.
2. Experienced staff answers all your questions in fluent English.
3. More than 10 years experience to LSR injection molding machine in China.
4. Tianyuan can design the LSR injection molding equipment according to the customer's requirements, provide a whole set of solutions for the LSR equipments.
5. Our LSR injection molding machine is widely used in medical industry, food industry, infant industry , diving industry, insulator industry and other LSR production field.
6. According to the high quality, precise and reliable of the LSR injection molding machine, we help the customer to produce the refined LSR products and price ratio is in high performance in the LSR industry.
7. Welcome OEM and ODM.
