Chinese Supplier LSR Injection Molding Machine For Medical Catheter
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
|Minimum Order Quantity :||1SET||Price :||USD35888~45888/SET|
|Packaging Details :||Packing in wooden cases||Delivery Time :||30~60 work days|
|Payment Terms :||T/T, L/C||Supply Ability :||1000SETS/Month|
|Place of Origin:||China||Brand Name:||TYM|
|Motor:||Servo Motor||Clamping Force:||130T|
|Motor Power:||12.1KW||Injection Pressure:||700KG/CM2|
|Color:||Green||DT:||30~60 Work Days|
rotary table injection molding machine,
low pressure molding machine
12kw Servo Motor High Efficiency Automatic Silicone Injection Molding Machine And Mold For Women Copa Menstrual Cup

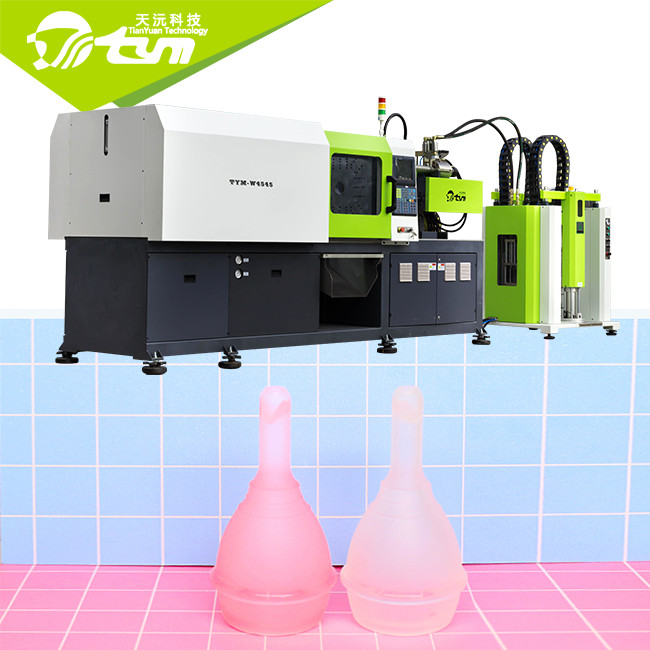

TYM Horizontal injection molding machine w4545 was designed for silicone menstrual cup .TYM Horizontal Liquid Silicone Rubber (LSR) injection molding machine can meet the automatic production without robot arm which can reduce your cost .
Direct pressure mould opening and closing system, horizontal injection structure on horizontal machine , it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.
We have rich experience of machine and precision mold design on menstrual cup without drain valve , menstrual cup with drain valve and foldable menstrual to meet different requirement .
The main feature of the horizontal LSR molding machine:
A.Newly-optimized integrated all-in-one design.
B. Meet multiple requirements on the automatic manufacturing technique for LSR products.
C. Shorter the mould closing and opening time, improve the production efficiency.
D. Remote control function.
E. Multi-section mould closing and opening and injection, speed adjusting stepless.
With TYM digital control color pump , it can meet multi color production of mesntrual cups .
Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
Mechanical Characteristics for TYM-W4545
|TYM-W4545 Horizontal LSR injection molding machine|
|Shot Volume||165 g|
|Injection Rate||30 g/s|
|Injection Pressure||19.6 T|
|Clamping Force||130 T|
|Opening Stroke||200-700 mm|
|Ejection Force||7.8 T|
|Ejection Stroke||150 mm|
|Pump Pressure||21 Mpa|
|Heater Power||9 KW|
|Mould Orientation Ring Diameter||Φ 100 mm|
The Horizontal LSR machine for the applicable scope:
* Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
* Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
* Silicone high-voltage cable accessories,
* Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
* Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
* Silicone baking tool, cake mold, chocolate mold etc.
According to customer's investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving and provide matched mold scheme and recommend suitable machine according to customer's product.
Enable the relevant personnel to be familiar with the operation of the TYM's machinery and understanding the machine maintenance.
1) Installation of LSR machine and new machine commissioning service
2) Machine operator training
3) Training of relevant technicians
1) Free training till relevant personnel is able to operate and maintain independently
2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for site instruction
3) TYM will provide technical guidance for free if customer need new equipment or expand(rebuild)
4) TYM will give priority to customer according to customer's upgraded demand when TYM's equipment is upgraded.
