Medical Industry Large Liquid Injection Molding Machine 130T Clamping Force

Minimum Order Quantity : »1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 100 set year
Place of Origin: China Brand Name: TYM
Certification: CE/ISO9001 Model Number: TYM4545

Detail Information

After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support Clamping Force: 130T
Product Name: Liquid Injection Molding Machine For Laryngeal Mask Warranty: 1 Year
Tie-Bars Space: 500*580mm Shot Volume: 148g
High Light:

electric injection moulding machine


liquid silicone rubber injection molding machine

Product Description

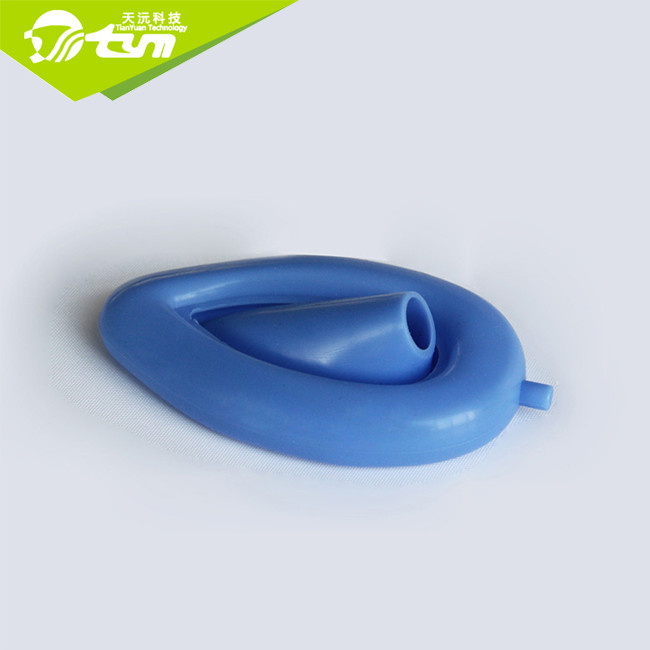

Liquid Injection Molding Machine For Laryngeal Mask/Medical Industry

The advantage of Vertical Liquid Injection Molding Machine:
1: Integrated, vertical design, small floor area, beautiful and environmental protection!

2: Injection of upper and lower mold closing, good sealing of mold closing, more accurate glue injection, more beneficial to the production of products with rubber package,
3: Double slide design, front and back sliding, can implement double station operation, the latch ejects the demoulding upward, is more advantageous to take and place the product!
4: Turntable design, 360 degree rotation without dead angle, can be equipped with two front molds and four back molds, while taking products, while producing,Save the waiting time for the product to form, and the production efficiency is higher!
5: It can be used with manipulator to produce automatically, save labor and save more cost for the company!
Medical Industry Large Liquid Injection Molding Machine 130T Clamping Force 0
Machine Model Parameter

Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-L4048 270g 30g/s 700kg/cm2 95T 250-550mm 400*480mm 4.3T 150mm 21Mpa 4.7T 12.1KW 2.0*1.5*3.4m
TYM-L5058 148g 30g/s 700kg/cm2 130T 250-550mm 500*580mm 4.3T 150mm 21Mpa 5.3T 12.1KW 2.4*1.6*3.4m
TYM-L6068 270g 30g/s 700kg/cm2 150T 250-550mm 600*680mm 4.3T 150mm 21Mpa 5.5T 12.1KW 2.7*1.7*3.4m

Medical Industry Large Liquid Injection Molding Machine 130T Clamping Force 1
Medical Industry Large Liquid Injection Molding Machine 130T Clamping Force 2

Pre -sale service *Provide investment budget and plant planning;
*Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service *Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service *Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
*After product upgrading, the upgrading work of previous users shall be given priority as required;

Our Service & Advantages:
1. Reply your enquiry in 24 working hours.
2. More than 17 years experience to LSR injection molding machine in China.
3. Tianyuan can design the LSR injection molding equipment according to the customer's requirements, provide a whole set of solutions for the LSR equipments.
4. Our LSR injection molding machine is widely used in medical industry, food industry, infant industry , diving industry, insulator industry and other LSR production field.
5. According to the high quality, precise and reliable of the LSR injection molding machine, we help the customer to produce the refined LSR products and price ratio is in high performance in the LSR industry.
6. Welcome OEM and ODM.
