LSR Injection Molding Machine For Medical Silicone Foley Catheter

Minimum Order Quantity : 1 set Price : USD49999-47999 per set
Packaging Details : Plastic film Delivery Time : 30 days
Payment Terms : L/C, D/P, T/T Supply Ability : 10 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L5058

Detail Information

Product Name: LSR Injection Molding Machine For Medical Silicone Foley Catheter Tie-bar Space: 500x580mm
Clamping Force: 130T Machine Weight: 3.9T
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Field Installation
High Light:

rotary table injection molding machine

,

low pressure molding machine

Product Description

LSR Injection Molding Machine For Medical Silicone Foley Catheter

When choosing the model, we should also match the equipment suitable for our own products according to the production process of the products. Once the model is selected wrong, it will increase the labor cost and waste up to 32% of the raw materials.

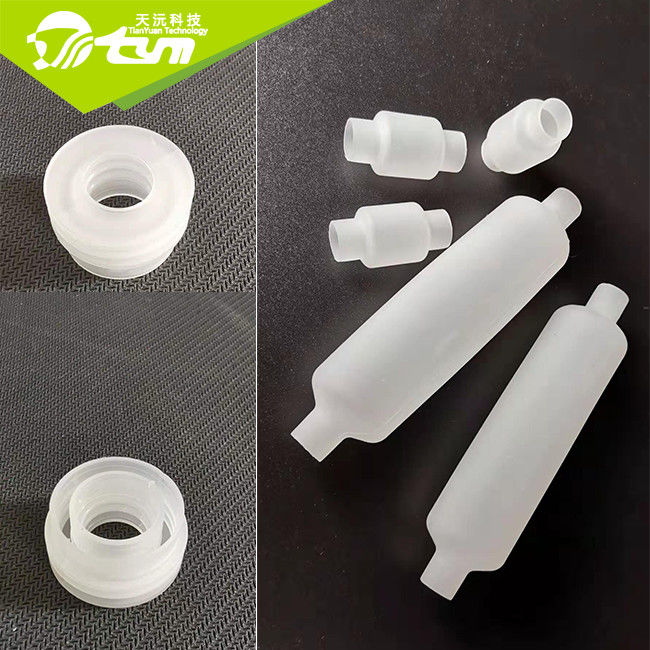

The liquid silica gel negative pressure ball mold without discharge is generally designed as 2-chamber, cold runner design, air blowing assisted full-automatic demoulding. In cooperation with such mold production, if considering the cost of liquid silica gel negative pressure ball production equipment, it is recommended to use horizontal liquid silica gel machine, which can drop freely when opening and closing the mold and mold blowing demoulding.

For the silica gel negative pressure ball with discharge, there will be a discharge pipe on the surface of the ball. This kind of mold is generally designed as two cavities, cold runner design, air blowing assisted full-automatic demoulding. The whole mold design structure is relatively complex. If such a mold is to be fully automatic production, it is necessary to select a vertical rotary table machine with six axis mechanical arm to realize full-automatic demoulding production.

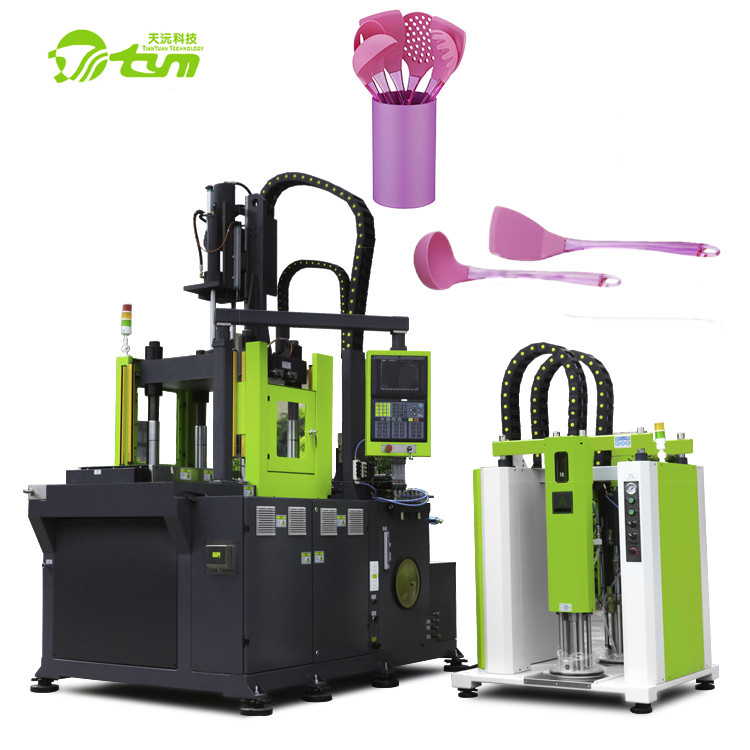

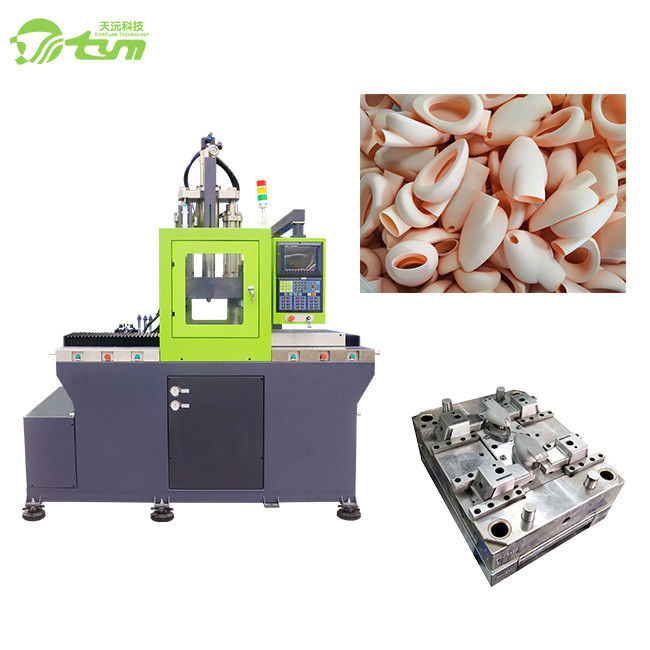

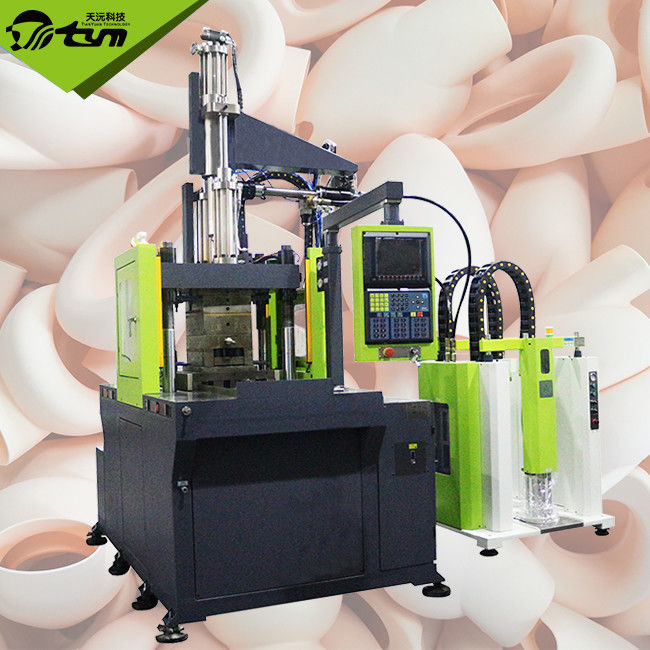

The Double-Sliding Board vertical LSR machine for the applicable scope:

1) The LSR product is volume-produce, difficult to demould, and will use two moulds to work which will improve productivity.

2) Liquid silicone products, which can with the insert, as like the plastic part, steel part etc. As sample: electric silicone drum Stick, silicone handle, silicone vibrators etc..

3) Liquid silicone medical part, as like the capsule, protective mast, catheter, balloon, medical belt etc.

4) Silicone high-voltage cable accessories,

5) Electronics and industrial product, such as the watchband, mobile phone case, silicone earplug ,valve, O-ring, sealing part, auto parts more.

6) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.

Our service



The data of Vertical Injection Moulding Machine

ITEM DESCRIPTION UNIT TYM-L2428 TYM-L4048 TYM-L5058 TYM-L6068
Injection Unit Shot Volume g 6 165 165 300
Injection Rate g/s 30 30 30 30
Injection Pressure Kg/cm2 700 700 700 700
Clamping Unit Clamping Force T 50 95 130 150
Opening Stroke mm 100-400 250-550 250-550 250-550
Tie-Bars Space mm 240*280 400*480 500*580 600*680
Ejection Force T 4.3 4.3 4.3 4.3
Ejection Stroke mm 150 150 150 150
Pump Pressure Mpa 21 21 21 21
Others Motor Power KW 12.1 12.1 12.1 21
Machine Weight T 2.2 4.7 5.3 5.5
Machine Dimension m 1.4*1.5*3.15 2.2*1.5*3.4 2.5*1.6*3.4 2.7*1.7*3.4



      Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the

production process!



The professional service from TYM
Pre -sale service

*Provide investment budget and plant planning;

*Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

*Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

*After product upgrading, the upgrading work of previous users shall be given priority as required;
