Liquid Silicone Rubber Injection Molding Machine

Minimum Order Quantity : 1 SETS Price : USD35888~45888/SET
Packaging Details : Packing in wooden cases Delivery Time : 30~60 work days
Payment Terms : L/C, T/T, MoneyGram Supply Ability : 1000SETS/Month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: L5058

Detail Information

Color: Green LSR Injection Molding Machine Motor: Servo Motor
Motor Power: 12.1KW Clamping Force: 700KG/CM2
Weight: 5.2T
High Light:

rotary table injection molding machine


low pressure molding machine

Product Description

100 ton Fast Servo Motor Vertical Silicone Injection Molding Machine
The reliable and stable operation of TYM machine make your production more smothly.
The humanized design and spacious work station improve your efficiency.
The servo motor system can quick response , high recision and save energy .
The height of machine is only 3 meters , which save your cost of factory decoration.


Liquid Silicone Rubber Injection Molding Machine 0
Guangzhou Tianyuan Silicone Machine Technology Co., Ltd. is established in 2002, which specializes in designing and manufacturing the LSR automatic injection molding machine as well as the LSR mold, we mastered the core technology, the quality is excellent!
Liquid Silicone Rubber Injection Molding Machine 1
The main feature of the vertical LSR molding machine:
* Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster and steadier.
* Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.
* Meet the requirements on multi-station production
* High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.
Liquid Silicone Rubber Injection Molding Machine 2
Mechanical Characteristics for TYM-L5058-2

TYM-L5058 Vertical LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 130 T
Opening Stroke 250-550 mm
Tie-Bars Pace 500*580 mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Pump Pressure 21 Mpa
Motor Power 12.1 KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 6 T
Machine Dimension 2.5*1.6*3.6 m

About Moldshop
TYM is China's first leading brand providing a one-stop complete solution of "raw material + liquid silicone injection molding machine + mold + technical support + personnel training + finished products” , every client is able to obtain various professional solutions here.
Liquid Silicone Rubber Injection Molding Machine 3

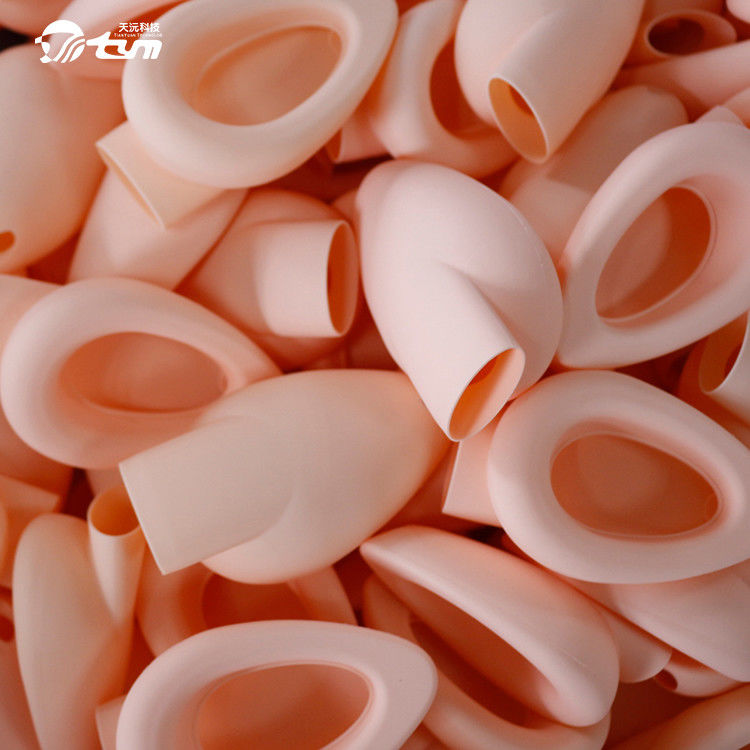

TYM injection molding machine is suitable for multi-purpose silicone rubber molding.
Liquid Silicone Rubber Injection Molding Machine 4

About Company

Specialized in liquid silicone 17 years
TYM was established in 2002, registered capital is 189.32 million,33000㎡ manufacture base, two wholly owned subsidiaries
More than 60 patents
12 invention patents, it is rated as a national high-tech enterprise in 2013
Industry leading
China's first leading brand providing a complete solution of "Liquid Injection Molding Machine+ mold + process + personnel training”
Mature experience
Cooperated with the four major organic silicon producers in the world for many years and has rich experience for liquid silicone application in various industries
Industry trust brand
Serve customers in more than 50 countries and regions at home and abroad in many fields, have a deep understanding of product technology, and can provide more professional services


Liquid Silicone Rubber Injection Molding Machine 5
