Ladies Silicone Menstrual Cup Making Machine 4.0 * 1.2 * 1.9m Dimension

Product Details:
Place of Origin: China
Brand Name: TYM
Certification: CE/ISO9001
Model Number: TYM4545
Payment & Shipping Terms:
Minimum Order Quantity: »1
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 100 set year

Detail Information

Product Name: Menstrual Cup Manufacturing Machine For Women Silicone Ladies Silicone Menstrual Cup After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support
Clamping Force: 130T Machine Dimension: 4.0*1.2*1.9m
Machine Weight: 5.2T Injection Pressure: 700kg/cm2
High Light:

menstrual cup making machine


injection moulding equipment

Product Description

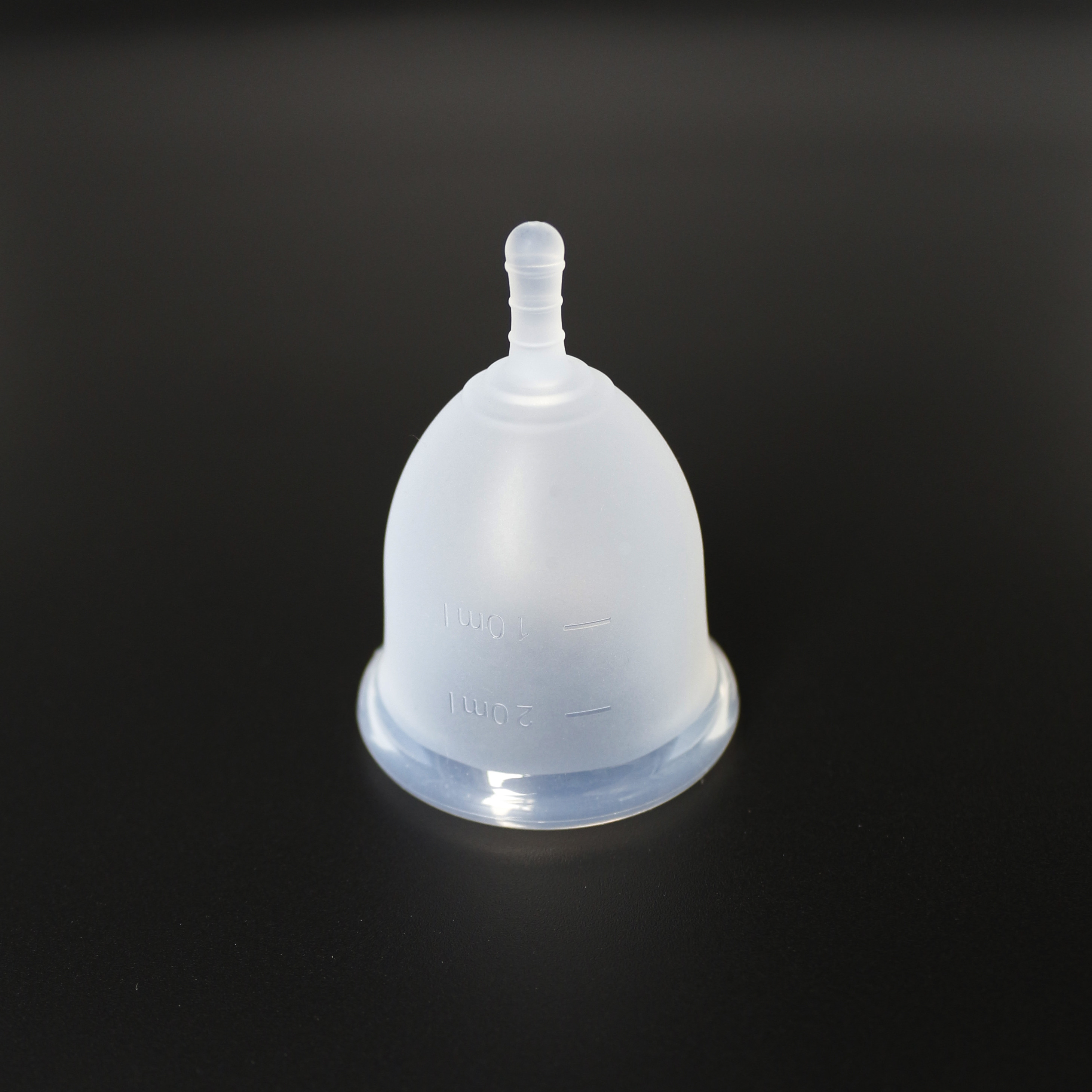

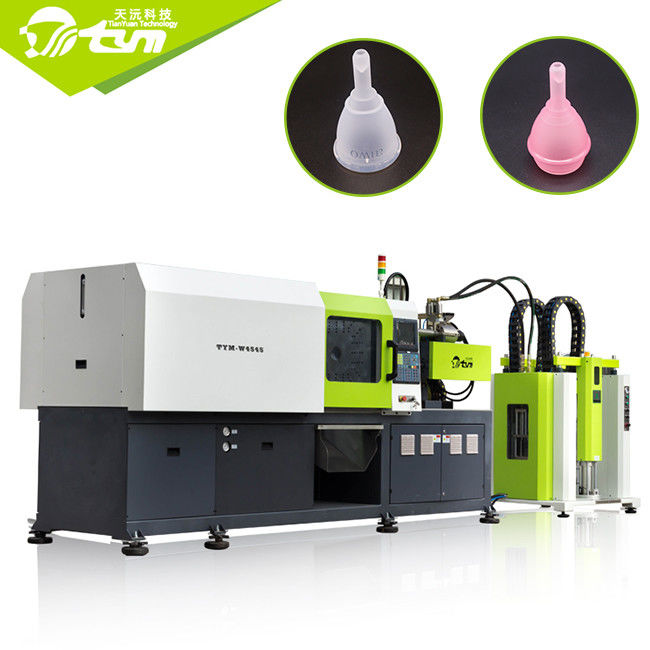

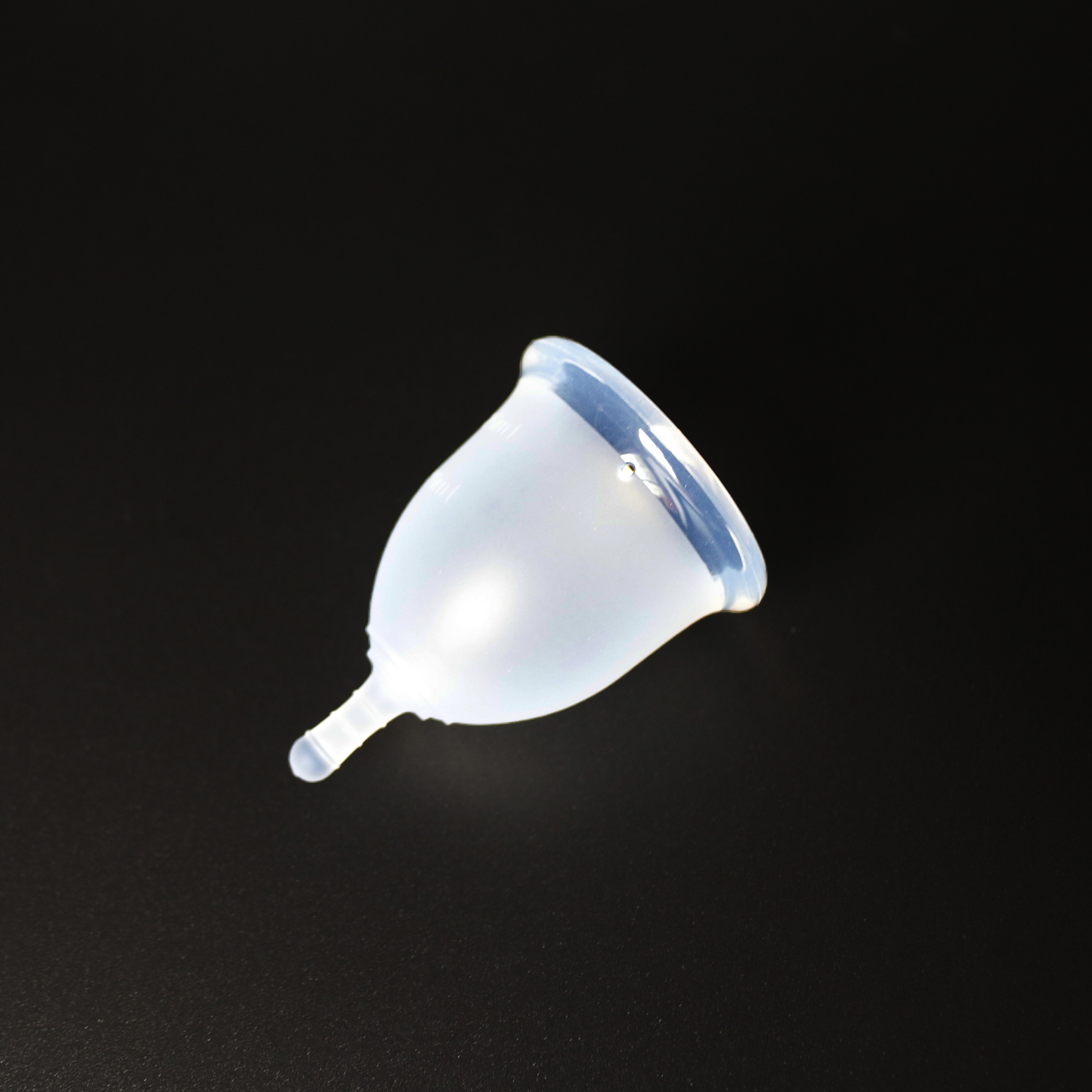

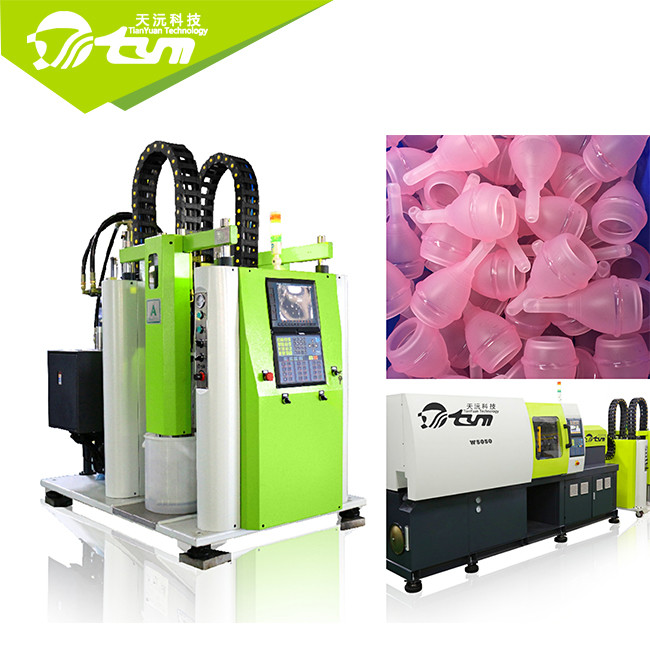

Menstrual cup manufacturing machine For Women Silicone Ladies Silicone Menstrual Cup

1. The menstrual cup is made of 100% medical silicone material;

2. It is non-toxic, harmless, durable, flexible and eco-friendly;

3. The menstrual cup is long lasting, reusable

4. Simple way to use and it is convenient forlady period

5. OEM design is welcomed.

Ladies Silicone Menstrual Cup Making Machine 4.0 * 1.2 * 1.9m Dimension 0
Machine Model Parameter

Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-W4545 148g 30g/s 700kg/cm2 130T 200-700mm 450*450mm 4.3T 150mm 21Mpa 5.2T 12.1KW 4.0*1.2*1.9m
TYM-W5050 270g 30g/s 700kg/cm2 150T 200-700mm 500*500mm 4.3T 150mm 21Mpa 5.3T 12.1KW 4.2*1.4*1.9m
TYM-W5555 270g 30g/s 700kg/cm2 160T 200-700mm 550*550mm 4.3T 150mm 21Mpa 5.6T 12.1KW 4.5*1.6*2.0m

LSR injection mold, also known as liquid silicone rubber injection molding, LSR injection molds & LIM, can produce liquid silicone rubber parts or products by injection molding machine .

The liquid silicone rubber injection mold production has a lot of advantage.It is more accurate, safer, ,environmental protection, transparent.



Advantage of silicone lady menstrual cup:
1 .Keep cool and safe.
2. Comfortable, clean and easy to use.
3. 100% medical grade silicone, no BPA or latex.
4. Reusable, eco-friendly and economical.

5. Leak-free protection for up to 10 hours at a time.
6. Long-term use can reduce the risk of gynecological inflammation.
7. Worry-free when travelling, swimming or exercising during menstrual period.

  LSR Menstrual Cup Sanitary Tampon
Comfort Comfort and insensitivity Muggy ordinary
Safety FDA certification Carcinogenesis by fluorescent agents Risk of toxic shock
Material Medical silicone Cotton Cotton
environmental protection Recycle Pollution Pollution
exercise Fit Unsuited Fit
Consumption expenditure Low High High


Pre -sale service *Provide investment budget and plant planning;
*Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service *Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service *Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
*After product upgrading, the upgrading work of previous users shall be given priority as required;
