Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve

Product Details:
Place of Origin: CHINA
Brand Name: TYM
Certification: CE, ISO
Model Number: TYM-L6068-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood box
Delivery Time: 60 work days
Supply Ability: 10 sets / month

Detail Information

High Speed Injection Molding Machine: Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve Clamping Force: 150T
Shot Volume: 300g Opening Stroke: 250-550MM
Injection Rate: 30g/s Injection Pressure: 700kg/c㎡
Ejection Force: 4.3T Motor Power: 12.1KW
High Light:

hydraulic injection system

,

baby soother machine

Product Description

Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve

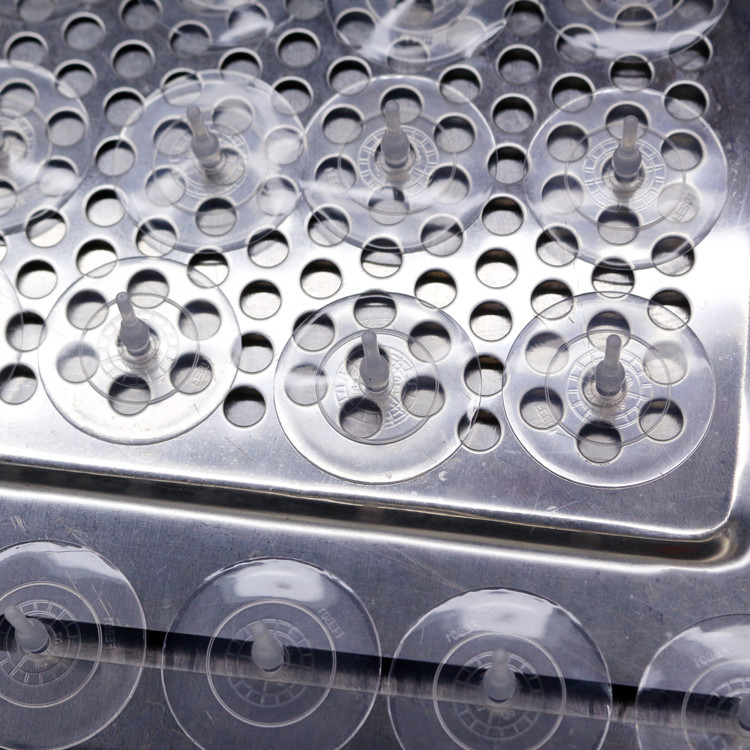

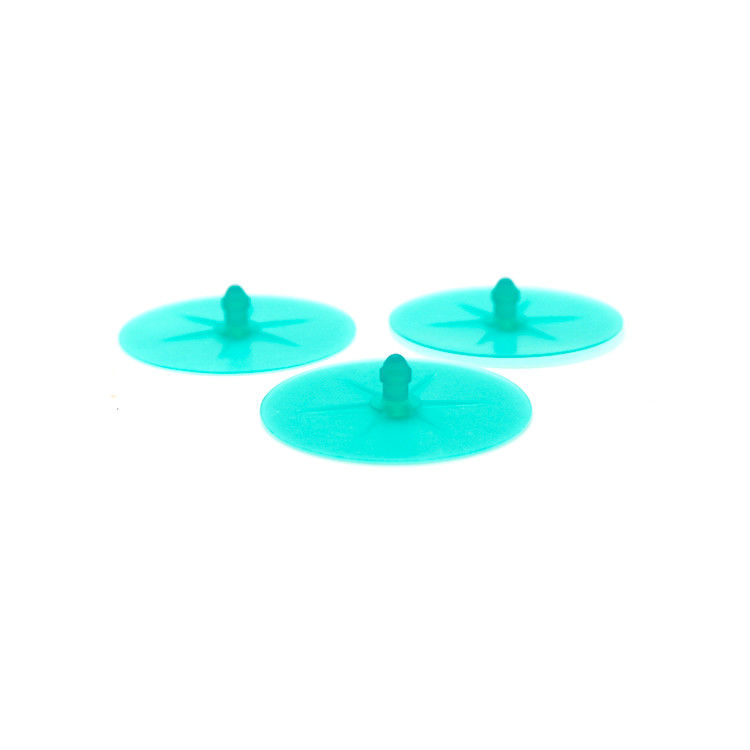

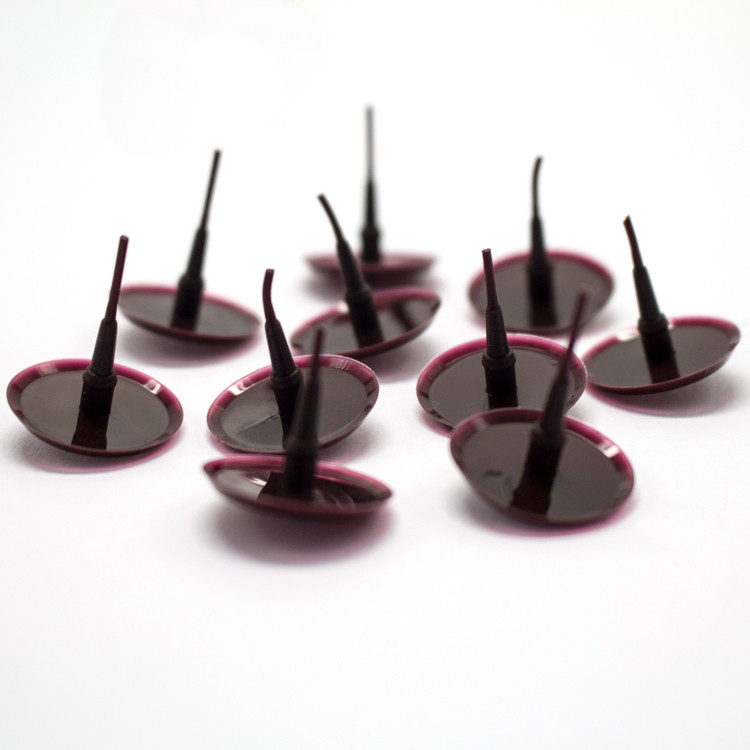

TYM Hydraulic Vertical High speed injection molding machine, with multi-section mold closing & opening and injection, speed adjusting stepless, shorter the production time, can produce several kinds of silicone valve, silicone diaphragm.



TYM was established in 2002, 33000manufacture base, two wholly owned subsidiaries.

TYM is the earliest manufacturer of liquid silicone injection molding solutions in China.
TYM has more than 50 patents and had rated as a national high-tech enterprise in 2013.
TYM has a complete set of solutions from mold design, machine supply and training for the machine.
TYM has cooperated with the four major organic silicon manufacturers in the world for many years
and has rich experience for liquid silicone application in various industries.



TYM factory:



Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 0



TYM is a well-known domestic factory which specialized in researching and developing LSR injection molding machine, LSR mold as well as the LSR products.



Our LSR injection machines have been widely used in medical industry, food industry, auto industry, infant industry, electronics industry, diving industry and so on, we had sold the machines as well as the products to more than 30 countries all over the world.

According to our professional skills and abundant production experiences in the LSR industry, we’re confident that we can start the LSR project for you smoothly.



Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 1





TYM team:



Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 2





TYM Show room:



Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 3





TYM LSR mold workshop:

TYM company has an independent mold workshop since 2008, which owns engraving and milling machines, EDM, CNC , mirror sparking machines for manufacturing the LSR mold, which will ensure the mold production levels can meet customers' requirements.



Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 4



Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 5

Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 6

Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 7

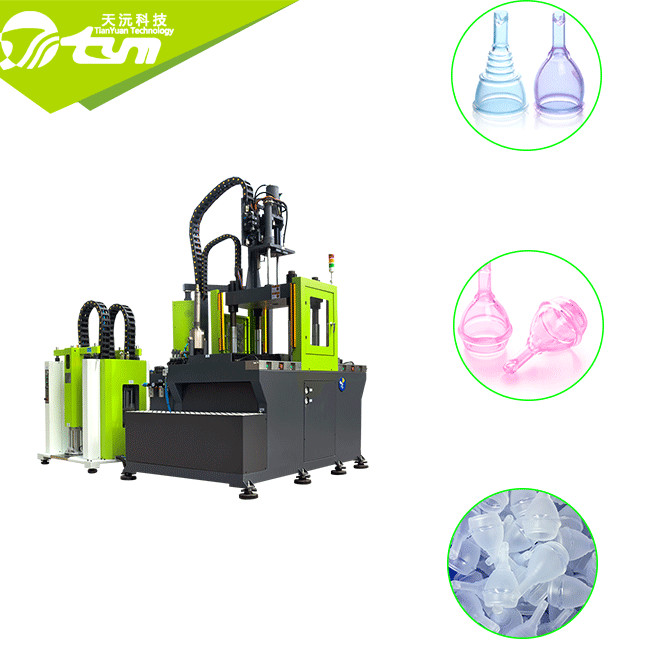

LSR injection molding machine of model TYM-L6068-2:



Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 8



Hydraulic Horizontal High Speed Injection Molding Machine For Silicone Valve 9











The vertical 150T direct pressure LSR injection molding machine



Injection Unit
Shot Volume 300g (can be adjusted)
Injection Rate 30 g/s
Injection Pressure 700kg/cm³
Clamping Unit
Clamping Force 150 T
Opening Stroke 250-550 mm
Tie-Bars Pace 600*680 mm
Ejection Force 4.3 T
Ejection Stroke 150 mm
Others
Motor Power 12.1 KW
Pump Pressure 21 Mpa
Machine Weight 5.5 T
Machine Dimension 2.7*1.7*3.4 M





OUR SERVICES



Pre-sale service
According to the customer’s investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving, will provide matched mold and select suitable machine according to customer’s requirement.



On-purchase service
Enable to be familiar with the operation and maintenance of the TYM's machine.
1) Installation of LSR machine and new machine debugging service.
2) Machine operator training.
3) Training of technicians.


After-sales service
1) Free training for the operation and maintenance independently.
2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for the instruction and will provide the technical guidance for free.
3) TYM will give priority to customer when the system on the LSR machine need to be upgraded.
