High Speed Food / Home Injection Moulding Machine Rotary Humanized Design

Product Details:
Place of Origin: China
Brand Name: TYM
Certification: CE
Model Number: TYM-L2120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: seaworthy packing
Delivery Time: 35 work-days
Payment Terms: T/T, L/C
Supply Ability: 50 sets per month

Detail Information

LSR Injection Molding Machine: LSR Injection Molding Machine Machine: High Speed Rotary LSR Injection Molding Machine Humanized Design
Useful: LSR Machine For Medical Catheter Use Material: Liquid Silicone Rubber
After-sales Service Provided: Engineers Available To Service Machinery Overseas Style: Vertical,liquid Silicone Rubber Vertical Injection Moulding Machine
Plastic Type: Liquid Silicone Machine Type: Hydraulic
Key Selling Points: High-accuracy,Automatic,Multifunctional,Competitive Price,High Productivity Applicable Industries: Home Use,Food & Beverage Shops
High Light:

rotary table injection molding machine

,

small injection molding machine

Product Description

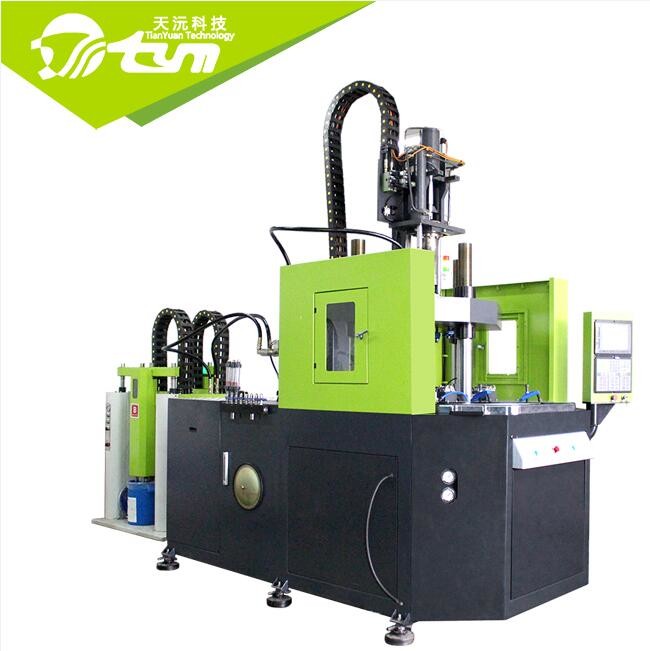

High Speed Rotary LSR Injection Molding Machine humanized design



TYM vertical LSR Injection Molding Machine include Rotary machine and skateboard machine, rotary machine made with humanized design, simple operation, high production efficiency, it can cooperate well with the manipulator for production.



High Speed Food / Home Injection Moulding Machine Rotary Humanized Design 0

The main feature of the vertical LSR molding machine:

* Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster and steadier.

* Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.

* Meet the requirements on multi-station production

* High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-savingly.



Mechanical Characteristics for TYM-L2120



TYM- L2120 Vertical LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 130 T
Opening Stroke 250-500 mm
Tie-Bars Pace 560*400 mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 11 KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 6 T
Machine Dimension 2.9*2.0*3.7 m



LSR injection molding industry application

Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.



Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.



Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.



Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.

High Speed Food / Home Injection Moulding Machine Rotary Humanized Design 1

Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.



Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.



High Speed Food / Home Injection Moulding Machine Rotary Humanized Design 2
