High Precision Menstrual Cup Manufacturing Machine Heavy Duty Easy To Use

Product Details:
Place of Origin: China
Brand Name: TYM
Certification: CE/ISO9001
Model Number: TYM4545
Payment & Shipping Terms:
Minimum Order Quantity: »1
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 100 set year

Detail Information

Tie-Bars Space: 450*450mm After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support
Product Name: Menstrual Cup Manufacturing Machine For Feminine Hygiene Silicone Menstrual Cup Clamping Force: 130T
Ejection Stroke: 150mm Opening Stroke: 200-700mm
High Light:

menstrual cup making machine


injection moulding equipment

Product Description

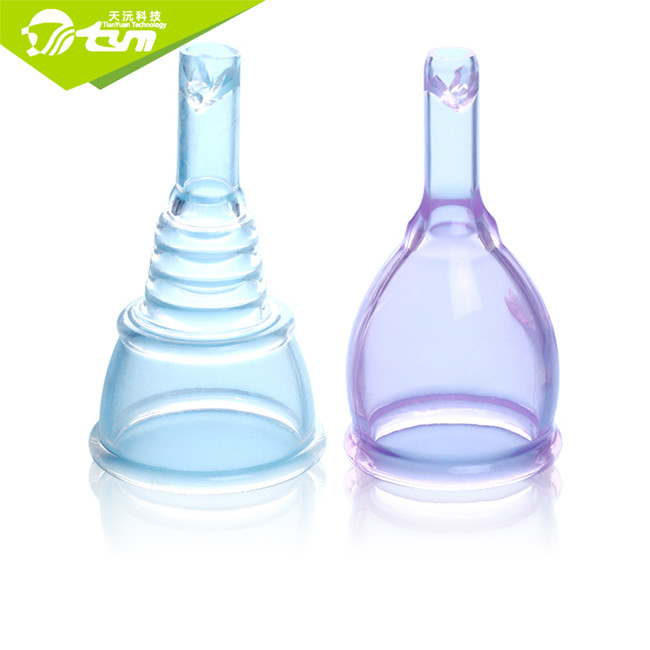

Menstrual cup manufacturing machine For Feminine Hygiene Silicone Menstrual Cup


The world's unique manufacturer that designs and develops the Menstrual cup manufacturing machine as independent machine type. TYM was established in 2002, 33000㎡ manufacture base, two wholly owned subsidiaries , TYM is China's earliest manufacturer of liquid silicone injection molding solutions


High Precision Menstrual Cup Manufacturing Machine Heavy Duty Easy To Use 0

Machine Model Parameter

Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-W4545 148g 30g/s 700kg/cm2 130T 200-700mm 450*450mm 4.3T 150mm 21Mpa 5.2T 12.1KW 4.0*1.2*1.9m
TYM-W5050 270g 30g/s 700kg/cm2 150T 200-700mm 500*500mm 4.3T 150mm 21Mpa 5.3T 12.1KW 4.2*1.4*1.9m
TYM-W5555 270g 30g/s 700kg/cm2 160T 200-700mm 550*550mm 4.3T 150mm 21Mpa 5.6T 12.1KW 4.5*1.6*2.0m

Menstruation Cup Four Advantages

Health and hygiene-The shape of the menstrual cup is consistent with the female vaginal structure, and the action is not afraid of side leakage.

Not stuffy-Use vacuum to increase the internal pressure of the air, use the menstrual cup without displacement.

Non-sensible period- Soft silicone material with­out discomfort, pressure valve drainage.

Not leaking-Without any chemica additives, it will reduce the growth of bacteria and will not damage the vaginal wall.

  LSR Menstrual Cup Sanitary Tampon
Comfort Comfort and insensitivity Muggy ordinary
Safety FDA certification Carcinogenesis by fluorescent agents Risk of toxic shock
Material Medical silicone Cotton Cotton
environmental protection Recycle Pollution Pollution
exercise Fit Unsuited Fit
Consumption expenditure Low High High


Pre -sale service * Provide investment budget and plant planning;
* Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service * Provide installation and new machine debugging services for users who purchase Tianyuan machine. *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service * Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
* After product upgrading, the upgrading work of previous users shall be given priority as required;

Our Service & Advantages:
1. Reply your enquiry in 24 working hours.
2. More than 17 years experience to LSR injection molding machine in China.
3. Tianyuan can design the LSR injection molding equipment according to the customer's requirements, provide a whole set of solutions for the LSR equipments.
4. Our LSR injection molding machine is widely used in medical industry, food industry, infant industry , diving industry, insulator industry and other LSR production field.
5. According to the high quality, precise and reliable of the LSR injection molding machine, we help the customer to produce the refined LSR products and price ratio is in high performance in the LSR industry.
6. Welcome OEM and ODM.
