High Precision Liquid Silicone Auto Parts Direct Pressure Mould Closing System

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : seaworthy packing Delivery Time : 35 work-days
Payment Terms : T/T, L/C Supply Ability : 50 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-W5050

Detail Information

Useful: LSR Machine For Silicone Auto Parts LSR Injection Molding Machine: High Precision Auto Parts Making Machine For Silicone Sealing
Horizontal: Horizontal Silicone Auto Parts Making Machine Material: Liquid Silicone Rubber
Mould Clamping Force: 150T Item: Auto Parts Making Machine
High Light:

gasket making machine

,

automobile spare parts making machine

Product Description

High Precision Liquid Silicone Auto Parts Direct Pressure Mould Closing System

TYM offer the High Precision Auto Parts Making Machine / silicone sealing, China's first leading brand providing a complete solution of liquid silicone injection molding equipment + mold + process + personnel training.







Mechanical Characteristics for TYM-W5555

TYM-W5555Horizontal LSR injection molding machine
Injection Unit
Shot Volume 36 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 160 T
Opening Stroke 200-700 mm
Tie-Bars Space 550*550mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 11KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 5.2T
Machine Dimension 4.0*1.2*2.0 m
LSR feeding machine Dimension 1.2*1.2*2.0m

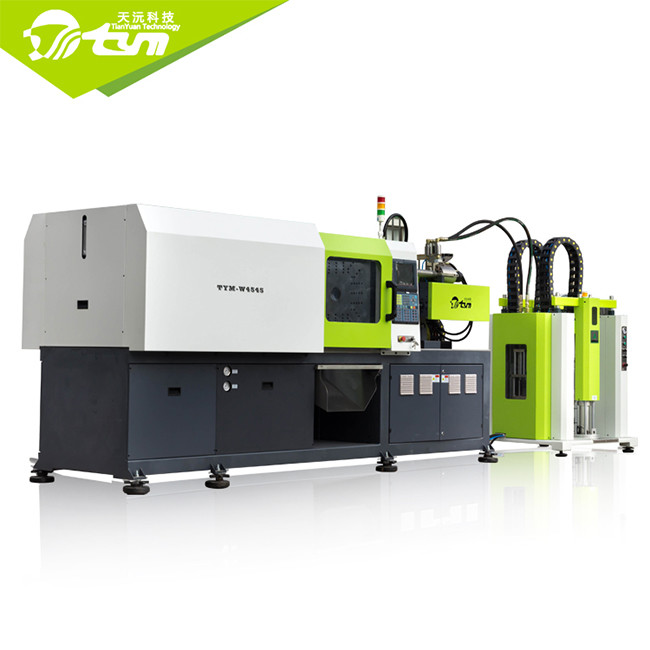

High Precision Liquid Silicone Auto Parts  Direct Pressure Mould Closing System 0

INDUSTRIES AND APPLICATIONS

Regardless of the industry, the liquid silicone injection molding process allows for the fabrication of rubber parts or components that must withstand extreme conditions and make your products more effective. Industries and applications include:



Medical /Healthcare — Liquid silicone molding has made tremendous inroads into the medical industry because of its excellent physical properties and superior chemical and heat resistance. In addition, medical-grade liquid silicone rubber offers numerous advantages, such as biocompatibility, easy sterilization and transparency. The material feels soft on the skin, which makes it an obvious choice for medical devices that contact the body. The product also meets strict FDA standards. TYM produces numerous products for the medical industry, including produced flow control valves, syringe stoppers, and other components.

Automotive — LSR has durability, tensile strength, high thermal stability, fatigue and tear-resistance and other properties, which make it an excellent choice for components used under the hood of vehicles. Many OEMs and 1st and 2nd tier automotive suppliers prefer injection molding liquid silicone rubber to create a wide variety of standalone parts, including O-rings, buttons, components, gaskets, and wiring harness components. LSR can also be molded directly onto plastic or metal parts.

Consumer products — The numerous properties found in liquid silicone rubber provide the raw material diversification required to manufacture a broad array of consumer products. These products range from kitchen bakeware and plastic showerheads to electronic gadgets and bottle dispensers.

Specialty applications — The numerous types and grades of liquid silicone rubber makes the material suitable for a wide range of other uses, including:

Valves and gauges

Membranes and seal rings

Irrigation and filtration parts

Pressure exit, check and one-way valves

Lighted panel buttons

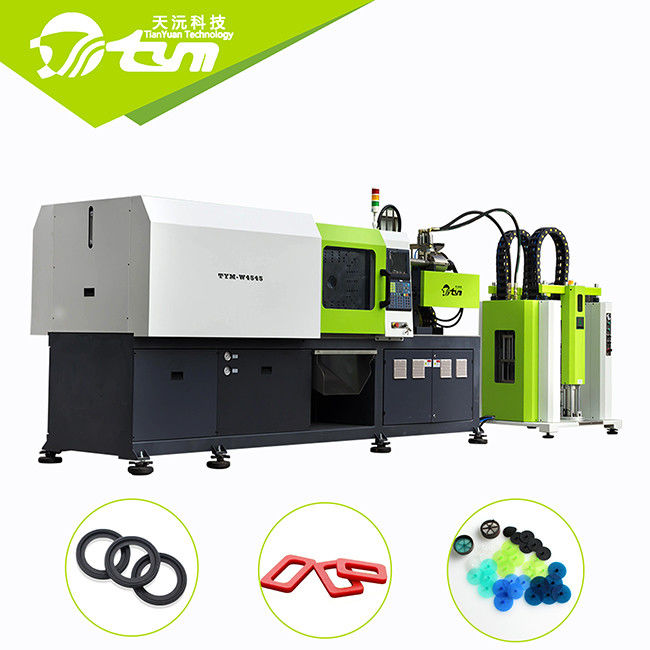

High Precision Liquid Silicone Auto Parts  Direct Pressure Mould Closing System 1



About TYM Company- LSR injection molding machine manufactuere

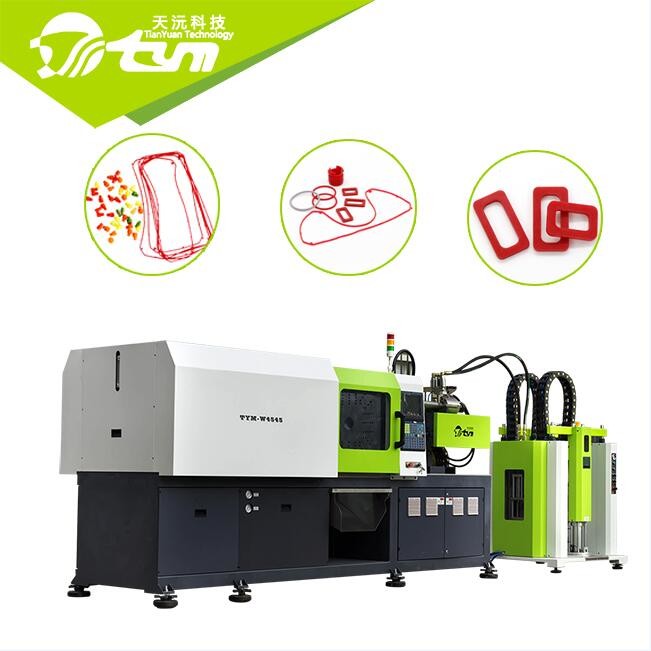

High Precision Liquid Silicone Auto Parts  Direct Pressure Mould Closing System 2
