Minimum Order Quantity : | 1 set | Price : | Negotiation |
---|---|---|---|
Packaging Details : | seaworthy packing | Delivery Time : | 35 work-days |
Payment Terms : | T/T, L/C | Supply Ability : | 50 sets per month |
Place of Origin: | China | Brand Name: | TYM |
---|---|---|---|
Certification: | CE | Model Number: | TYM-W4545 |
Detail Information |
|||
LSR Injection Molding Machine: | Automatic LSR Injection Molding For Silicone Menstrual Cup/baby Nipple/silicone Valve | Horizontal: | Horizontal LSR Injection Machine |
---|---|---|---|
Useful: | LSR Machine For Baby Nipple | Condition: | New |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Style: | Horizontal,liquid Silicone Rubber Vertical Injection Moulding Machine |
Plastic Type: | Liquid Silicone | Automatic: | Fully Automatic Or Manual |
Power(w): | 11kw | Machine Type: | Hydraulic |
Key Selling Points: | High-accuracy,Automatic,Multifunctional,Competitive Price,High Productivity | ||
Highlight: | rotary table injection molding machine,low pressure molding machine |
Product Description

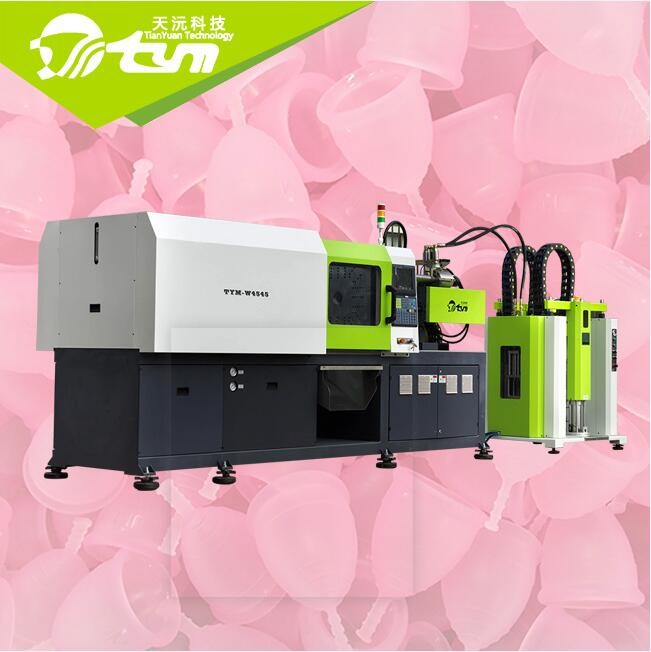

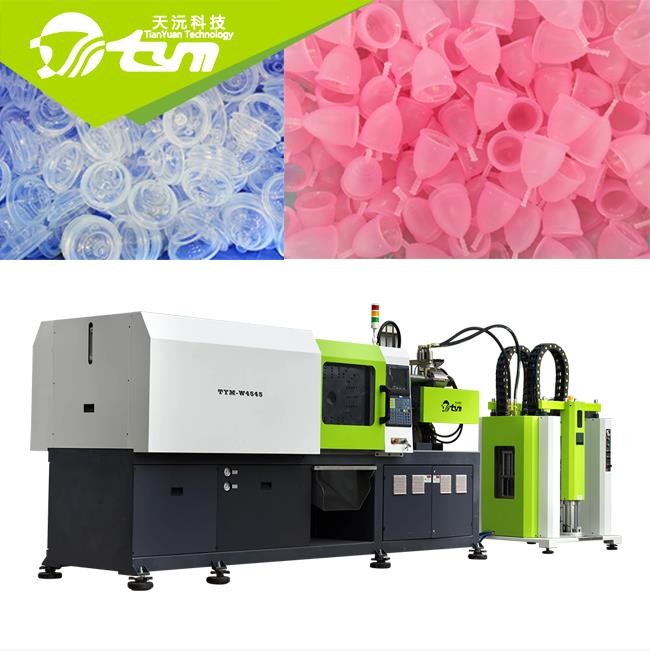

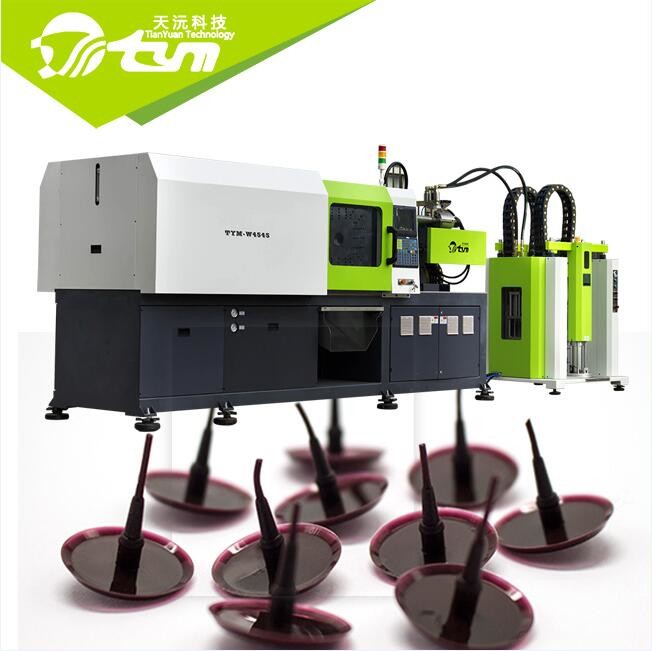

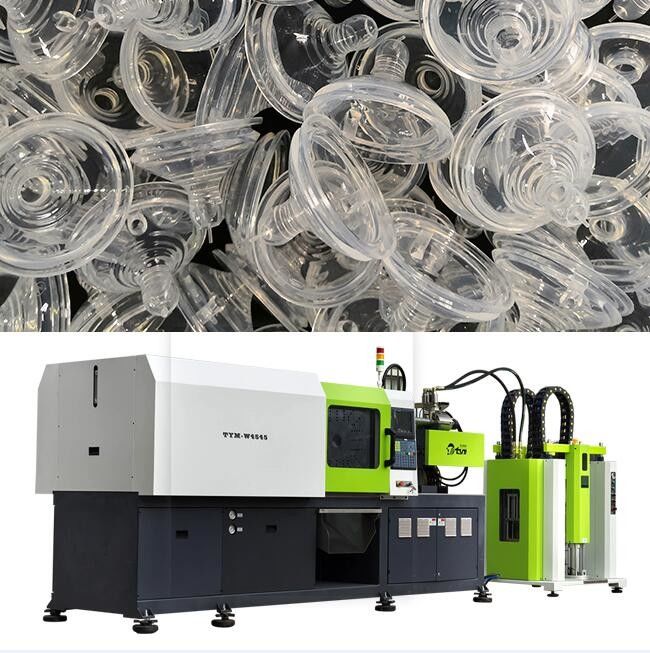

Automatic LSR Injection Molding for silicone menstrual cup/baby nipple/silicone valve
TYM professional manufacture Automatic LSR Injection Molding for silicone menstrual cup/baby nipple/silicone valve,offer a complete set of Silicone menstrual cup production line including LSR injection machine and molds
When choosing materials to manufacture critical parts and components, consider Liquid Silicone Rubber (LSR). LSR is the primary material we process at TYM — as a result, there’s no better partner for your manufacturing needs, and no one more experienced in helping clients make the most of it.
Liquid silicone rubber’s characteristics and chemical properties make it an ideal material for applications spanning several different industry verticals.
Mechanical Characteristics for TYM-W4545
TYM-W4545 Horizontal LSR injection molding machine | |
Injection Unit | |
Shot Volume | 165 g |
Injection Rate | 30 g/s |
Injection Pressure | 19.6 T |
Clamping Unit | |
Clamping Force | 130 T |
Opening Stroke | 200-700 mm |
Tie-Bars Space | 450*450mm |
Ejection Force | 7.8 T |
Ejection Stroke | 150 mm |
Others | |
Pump Pressure | 21 Mpa |
Motor Power | 11KW |
Heater Power | 9 KW |
Mould Orientation Ring Diameter | Φ 100 mm |
Machine Weight | 5.2T |
Machine Dimension | 4.0*1.2*2.0 m |
LSR feeding machine Dimension | 1.2*1.2*2.0m |
LSR injection molding industry application
Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.
Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.
Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.
Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.
Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.
Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.
