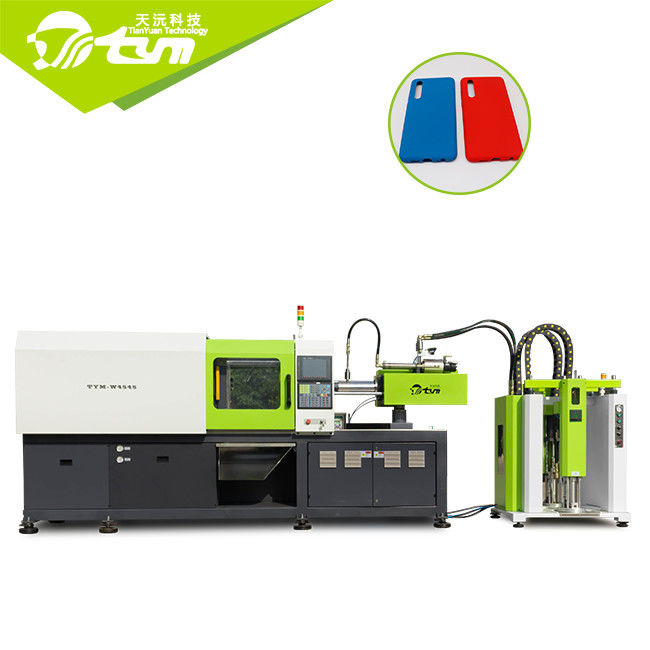

Easy To Operate Silicone Mobile Phone Case Making Machine For Any Brand Phone Case

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : Standard plywood case or based on the detailed request of our client Delivery Time : 60 work days
Payment Terms : T/T, L/C, Western Union Supply Ability : 10000sets/year
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: L5058

Detail Information

Injection Rate: 30g/s Injection Pressure: 700kg/cm2
Clamping Force: 130T Ejection Force: 4.3T
Ejection Stroke: 150mm Pump Pressure: 21Mpa
High Light:

silicone rubber phone case making machine


silicon mobile cover making machine

Product Description

Easy To Operate Silicone Mobile Phone Case Making Machine For Any Brand Phone Case


Various grades of silicone rubber have different material properties. This versatility is one of the reasons why LSR is used in so many diverse applications. Whether you require a medical- or food-grade product that offers superior resistance to bacteria, or an automotive component that can withstand excessive heat and vibration, liquid silicone’s mechanical properties make it an excellent starting point.


Machine Model Shot Volume







Opening Stroke Tie-Bars Space Ejection Force Machine Weight Motor Power
TYM-L5058 165g 30g/s 700kg/cm2 130T 250-550MM 500*580MM 4.3T 5.3T 12.1kw
TYM-L6068 300g 30g/s 700kg/cm2 130T 250-550MM 600*680MM 4.3T 5.5T 12.1kw
TYM-W4545 165g 30g/s 700kg/cm2 130T 200-700MM 450*450MM 4.3T 5.2T 12.1kw
TYM-W5050 300g 30g/s 700kg/cm2 130T 200-700MM 500*500MM 4.3T 5.3T 12.1kw



Easy To Operate Silicone Mobile Phone Case Making Machine For Any Brand Phone Case 0


TYM-Tech has an independent mold workshop, with a number of high-speed precision carving machines, mirror spark machines, CNC, Sirui second dimension, third dimension processing and testing equipment, more than 10 years of mold design and manufacturing experience, for high-quality mold processing and provide the guarantee for the production; The LSR injection molding machine and tool(mold) have been exported to more than 40 countries including USA, Germany, Spain, Brazil, Mexico, Russia, Poland, England, Turkey, Italy, Saudi Arabia, Malysia, Thailand, India, South Africa, Algeria, Egypt and so on.

Precise cold runner LSR mold which can make the LSR production with higher quality, higher efficiency, longer life, save more production cost.



Easy To Operate Silicone Mobile Phone Case Making Machine For Any Brand Phone Case 1



Q1: Is there any difference between horizontal and vertical LSR molding machine?

A: The vertical LSR machine is suitable for silicone parts which needs to be removal by manually, after the mould open, the bottom moldboard will slide out, and you can remove the finished Parts; manually and it is very safe. And vertical LSR machine is also suitable for producing some LSR parts which has plastic or metal inserts inside, because we must put the plastic inserts on the mold first before close the mould, because the moldboard of the vertical LSR machine is up and down, when we put the inserts on the bottom moldboard, the inserts won ‘t drop down.

Q2: What is the property difference between liquid silicone rubber (LSR) material and solid silicone rubber material?

A: The vulcanizing agent of LSR material is platinum, there is no outgrowth. Environmental Performance is very good, the weather resistance, Tear strength. Resistance to fatigue performance are much better than the solid silicone rubber material. The vulcanizing agent of the solid silicone rubber material is peroxide, and there will be peroxide dissolved out slowly after laying aside for very long time.

Q3: What is the difference between liquid silicone rubber (LSR) products and solid silicone rubber products?

A: The LSR is injection molding process, the finished LSR parts has much better transparency and the tearing strength, rebound resilience, yellow-color changing resistance, heat stability, water-tolerant. expansibility, aging resistance, weather resistance, and less flashing. And the finished LSR parts is very precise.

The solid silicone rubber product is NOT so good on the transparency, tearing strength, extension, tearing strength and so on, and it has much flashing, the finished solid silicone rubber parts are not so precise.

Q4: What's the advantage of TYM machine?

A: Our TYM LSR molding machines are exported to Europe and the United States and more than 30 countnes in the world, and we give the professional service for more than 10 years. Our business scope includes medical, baby products, electronic ,diving products ,kitchenware industry, we supply the whole solution including the LSR moulds ,and we have rich experiences to share.



Our Services


Pre-sale service

According to customer's investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving and provide matched mold scheme and recommend suitable machine according to customer's product.


On-purchase service

Enable the relevant personnel to be familiar with the operation of the TYM's machinery and understanding the machine maintenance.

1) Installation of LSR machine and new machine commissioning service

2) Machine operator training

3) Training of relevant technicians


After-sales service

1) Free training till relevant personnel is able to operate and maintain independently

2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for site instruction

3) TYM will provide technical guidance for free if customer need new equipment or expand(rebuild)

4) TYM will give priority to customer according to customer's upgraded demand when TYM's equipment is upgraded.
