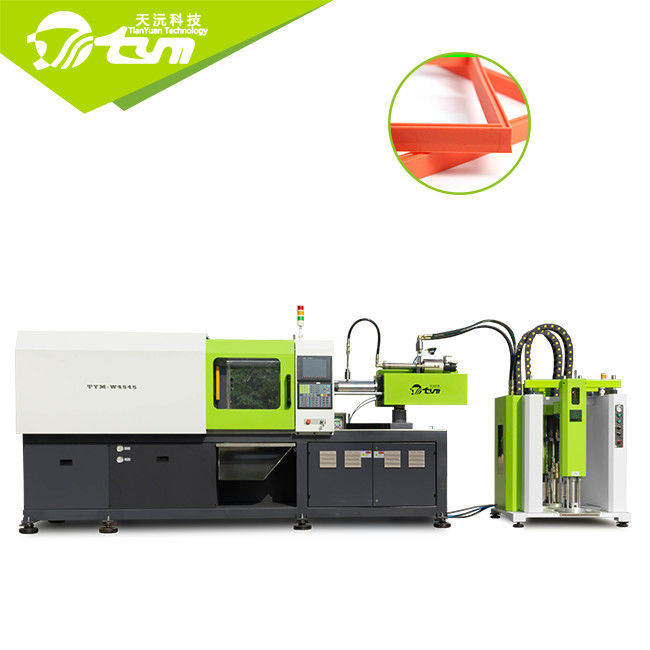

Durable Low Pressure Liquid Silicone Injection Molding Machine Large Auto Parts

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : Standard plywood case or based on the detailed request of our client Delivery Time : 60 work days
Payment Terms : T/T, L/C, Western Union Supply Ability : 10000sets/year
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: W4545

Detail Information

Injection Rate: 30g/s Injection Pressure: 700kg/cm2
Clamping Force: 130T Ejection Force: 4.3T
Ejection Stroke: 150mm Pump Pressure: 21Mpa
Machine Weight: 5.3T
High Light:

injection rubber moulding machine


injection molding system

Product Description

Durable Low Pressure Liquid Silicone Injection Molding Machine Large Auto Parts


How to choose a high quality liquid silicone vertical injection molding machine? We can choose from the following aspects,

1, First of all, from the performance of the equipment to consider, good liquid silicone rubber injection molding machine precision, good configuration, easy to operate.

2, Secondly, we need to know some brands of liquid silicone injection molding machines. Good brands have a long history in this industry,

3, In addition, it is very important to see whether it has core technology, because brands without core technology can not last for a long time. What's more, it can be applied to a wide range of applications. For example, in the conveying range of liquid silica gel machine of Tianyuan Technology, it can be transported from very thin liquid rubber to very hard electric glue.

4, See if there's a huge customer base

5, What's more, go to the scene to understand their production scale and their management process. As the saying goes, hearing is believing, seeing is believing. When you go to the factory, you can see a lot of real things. Good brands are large-scale, standardized, process-based, and management is very standardized


1. Liquid silica gel is generally used in baby products, kitchen products and medical supplies. It can directly contact with food and human body.


2. Solid silica gel is generally used in daily necessities, industrial sundries and auto parts.


3. Safety of liquid silica gel and solid silica gel: liquid silica gel is a food grade material with high transparency and safety. No auxiliary materials such as curing agent are added during molding, and it is sealed and fed for molding. The solid silica gel is a transparent material, which needs to be vulcanized to speed up the vulcanization molding time, and the open die is fed for molding.


Product Features


A. Newly-optimized integrated all-in-one design.

B. Meet multiple requirements on the automatic manufacturing technique for LSR products.

C. Shorter the mould closing and opening time, improve the production efficiency.

D. Remote control function.

E. Multi-section mould closing and opening and injection, speed adjusting stepless.


Machine Model Shot Volume







Opening Stroke Tie-Bars Space Ejection Force Machine Weight Motor Power
TYM-L5058 165g 30g/s 700kg/cm2 130T 250-550MM 500*580MM 4.3T 5.3T 12.1kw
TYM-L6068 300g 30g/s 700kg/cm2 130T 250-550MM 600*680MM 4.3T 5.5T 12.1kw
TYM-W4545 165g 30g/s 700kg/cm2 130T 200-700MM 450*450MM 4.3T 5.2T 12.1kw
TYM-W5050 300g 30g/s 700kg/cm2 130T 200-700MM 500*500MM 4.3T 5.3T 12.1kw


Durable Low Pressure Liquid Silicone Injection Molding Machine Large Auto Parts 0

About TYM

Guangzhou Tianyuan Silicone Machine Technology Co., Ltd. is established in 2002, which specializes in designing and manufacturing the LSR automatic injection molding machine as well as the LSR mold, we mastered the core technology, the quality is excellent! Our production technology is in the leading level in China; we adopt the advanced integration design on our LSR machine, and can supply personalized solutions for the customer. It is more energy-efficient, easy to operate, the production speed is high. TYM LSR machine is your best choice for saving the production cost when you choose a machine.



Durable Low Pressure Liquid Silicone Injection Molding Machine Large Auto Parts 1



Our LSR injection molding machine is widely used in medical industry, food industry, infant industry, diving industry, insulator industry and other LSR production field. Furthermore, with abundant technical strength,Tianyuan can design the LSR injection molding equipment exactly based on the customer's requirements, and can provide the turn-key solutions, such as the LSR feeding machine, LSR injection molding machine, LSR mixing system, color adding system, LSR mould and so on.

Durable Low Pressure Liquid Silicone Injection Molding Machine Large Auto Parts 2








TYM have More than 60 patents , 12 invention patents, it is rated as a national high-tech enterprise in 2013 .

Durable Low Pressure Liquid Silicone Injection Molding Machine Large Auto Parts 3



Our Services


Pre-sale service

According to customer's investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving and provide matched mold scheme and recommend suitable machine according to customer's product.


On-purchase service

Enable the relevant personnel to be familiar with the operation of the TYM's machinery and understanding the machine maintenance.

1) Installation of LSR machine and new machine commissioning service

2) Machine operator training

3) Training of relevant technicians


After-sales service

1) Free training till relevant personnel is able to operate and maintain independently

2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for site instruction

3) TYM will provide technical guidance for free if customer need new equipment or expand(rebuild)

4) TYM will give priority to customer according to customer's upgraded demand when TYM's equipment is upgraded.
