Chinese Supplier LSR Injection Molding Machine For Medical Catheter
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
| Minimum Order Quantity : | 1SET | Price : | USD35888~45888/SET |
|---|---|---|---|
| Packaging Details : | Packing in wooden cases | Delivery Time : | 30~60 work days |
| Payment Terms : | T/T, L/C | Supply Ability : | 1000SETS/Month |
| Place of Origin: | China | Brand Name: | TYM |
|---|---|---|---|
| Certification: | CE | Model Number: | L5058 |
|
Detail Information |
|||
| Motor: | Servo Motor | Clamping Force: | 130T |
|---|---|---|---|
| Motor Power: | 12.1KW | Injection Pressure: | 700KG/CM2 |
| Color: | Green | DT: | 30~60 Work Days |
| High Light: | rotary table injection molding machine,low pressure molding machine |
||
Product Description

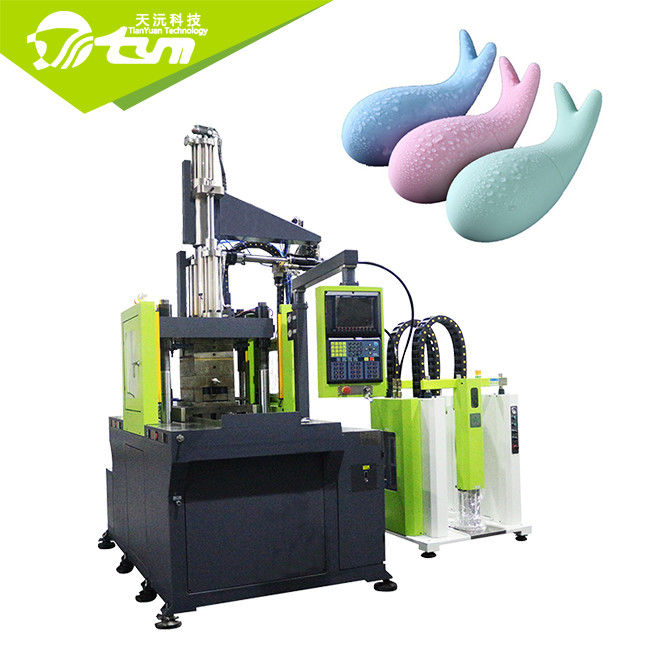

12kw Servo Motor High Efficiency Double Sliding Board Silicone Injection Molding Machine For Silicone Adult Sex Toys
Liquid Silicone Rubber (LSR) is a versatile and economical choice for a wide range of silicone molded parts. Odorless, tasteless and hypoallergenic, it is the ideal raw material for devices intended for use in a sterile environment. LSR is also fatigue and tear resistant and features a low compression set, high elongation, and high thermal stability. As a result, it can be used in any state in which exceptional durability is required, and is available in medical, food contact, body contact and high thermal conductivity grades.
These properties make the LSR the best material for adult products.
TYM Vertical injection molding machine is the best choice to produce silicone adult sex toys due to the large operation space .
Vertical injection molding machine close the mould downward .
There are two kinds of models can be chose – single sliding board and double sliding board. For double sliding board LSR machine, one upper moldboard and two lower moldboards are installed, which improves the production efficiency. The sliding out structure on the machine makes the production more conveniently and more safely. Also the vertical mould opening and closing is more suitable for producing the overmold (inmold) LSR parts which has inserts.
The main feature of the vertical LSR molding machine:
* Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster and steadier.
* Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.
* Meet the requirements on multi-station production
* High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.
Mechanical Characteristics for TYM-L5058-2
| TYM-L5058 Vertical LSR injection molding machine | |
| Injection Unit | |
| Shot Volume | 165 g |
| Injection Rate | 30 g/s |
| Injection Pressure | 19.6 T |
| Clamping Unit | |
| Clamping Force | 130 T |
| Opening Stroke | 250-550 mm |
| Tie-Bars Pace | 500*580 mm |
| Ejection Force | 7.8 T |
| Ejection Stroke | 150 mm |
| Others | |
| Pump Pressure | 21 Mpa |
| Motor Power | 12.1 KW |
| Heater Power | 9 KW |
| Mould Orientation Ring Diameter | Φ 100 mm |
| Machine Weight | 6 T |
| Machine Dimension | 2.5*1.6*3.6 m |
Application:
TYM injection molding machine is suitable for multi-purpose silicone rubber molding.
