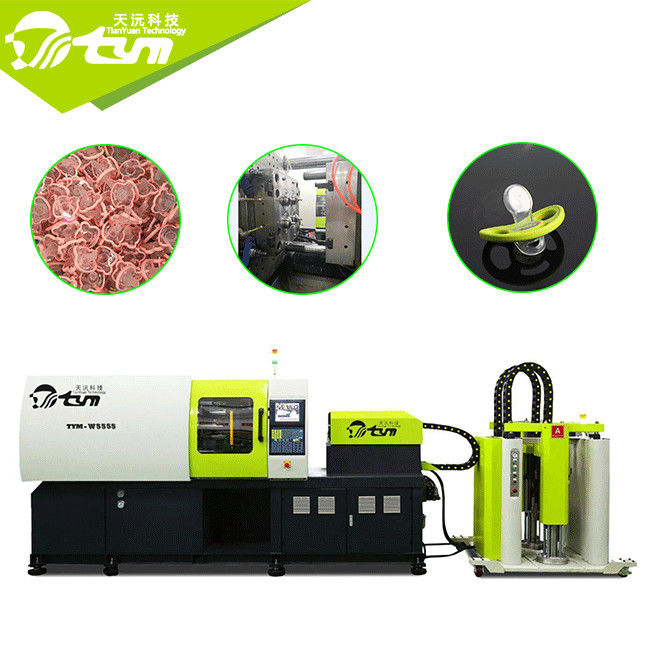

Double Color Material 130T Silicone Molding Machine Making Baby Feeding Products Nipple Pacifier Teat High Accuracy

Minimum Order Quantity : 1 SET Price : USD43,000~USD50,000
Packaging Details : International shipping standard packing Delivery Time : 45 working days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 10 SETS per month
Place of Origin: China Brand Name: TYM
Certification: ISO, CE Model Number: W4545

Detail Information

Shot Volume: 148g Injection Rate: 30g/s
Injection Pressure: 700kg/cm² Clamping Force: 130T
Opening Stroke: 200-700mm Tie-Bars Space: 450*450mm
Ejection Force: 4.3T Motor Power: 12.1KW
High Light:

130T Silicone Molding Machine

,

21Mpa Nipple Silicone Molding Machine

,

30g/s Baby Nipple Making Machine

Product Description

About Machine.
1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.
2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.
4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.
5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.
6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.
7) Precise cold runner LSR mould, which can make the LSR product producing with higher-quality, higher efficiency, longer life, save more production cost.

Double Color Material 130T Silicone Molding Machine Making Baby Feeding Products Nipple Pacifier Teat High Accuracy 0

Double Color Material 130T Silicone Molding Machine Making Baby Feeding Products Nipple Pacifier Teat High Accuracy 1



The parameter of horizontal 130T direct pressure LSR injection molding machine

Injection Unit
Shot Volume 165g (can be adjusted)
Injection Rate 30 g/s
Injection Pressure 700kg/cm³
Clamping Unit
Clamping Force 130 T
Opening Stroke 200-700 mm
Tie-Bars Pace 450*450 mm
Ejection Force 4.3 T
Ejection Stroke 150 mm
Others
Motor Power 12.1 KW
Pump Pressure 21 Mpa
Machine Weight 4 T
Machine Dimension 4.1*1.6*2.0 M

The Horizontal LSR machine for the applicable scope:
1) Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
2) Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
3) Silicone high-voltage cable accessories,
4) Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
5) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
6) Silicone baking tool, cake mold, chocolate mold etc.

Double Color Material 130T Silicone Molding Machine Making Baby Feeding Products Nipple Pacifier Teat High Accuracy 2Double Color Material 130T Silicone Molding Machine Making Baby Feeding Products Nipple Pacifier Teat High Accuracy 3

About TYM
TYM machine has passed CE test and our factory has got ISO9001 certification.Guangzhou Tianyuan Silicone Machine Technology Co., Ltd could offer whole set solution for lsr injection molding.And we give the professional service for over 18 years.Our business scope includes lsr material supplier recommend and lsr mold and lsr machine.



TYM was established in 2002, 33000 square meter manufacture base, two wholly owned subsidiaries , TYM is the earliest manufacturer of liquid silicone injection molding solutions in China.
TYM has more than 50 patents and had rated as a national high-tech enterprise in 2013.
TYM has a complete set of solutions from mold design, machine supply and training for the machine.
TYM has cooperated with the four major organic silicon manufacturers in the world for many years and has rich experience for liquid silicone application in various industries.

Double Color Material 130T Silicone Molding Machine Making Baby Feeding Products Nipple Pacifier Teat High Accuracy 4



About Service:

Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the
production process!



The professional service from TYM
Pre -sale service

* Provide investment budget and plant planning;

* Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

* Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

* After product upgrading, the upgrading work of previous users shall be given priority as required;





Double Color Material 130T Silicone Molding Machine Making Baby Feeding Products Nipple Pacifier Teat High Accuracy 5
