Chinese Supplier LSR Injection Molding Machine For Medical Catheter
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
Minimum Order Quantity : | 1 set | Price : | Negotiation |
---|---|---|---|
Packaging Details : | seaworthy packing | Delivery Time : | 35 work-days |
Payment Terms : | T/T, L/C | Supply Ability : | 50 sets per month |
Place of Origin: | China | Brand Name: | TYM |
---|---|---|---|
Certification: | CE | Model Number: | TYM-W4545 |
Detail Information |
|||
LSR Injection Molding Machine: | LSR Injection Molding Machine For Silicone Cap Valve / Gasket | Horizontal: | Horizontal LSR Injection Machine |
---|---|---|---|
Useful: | LSR Machine For Food Silicone Valve | Condition: | New |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Style: | Horizontal,liquid Silicone Rubber Vertical Injection Moulding Machine |
Plastic Type: | Liquid Silicone | Automatic: | Fully Automatic Or Manual |
High Light: | small injection molding machine,low pressure molding machine |
Product Description
LSR Injection Molding Machine for silicone Cap Valve / Gasket
TYM LSR Injection Molding Machine made with direct pressure injection, offer LSR injection machine and mold for the silicone cap valve, puching cross hole process, guaranteed after-sales service.

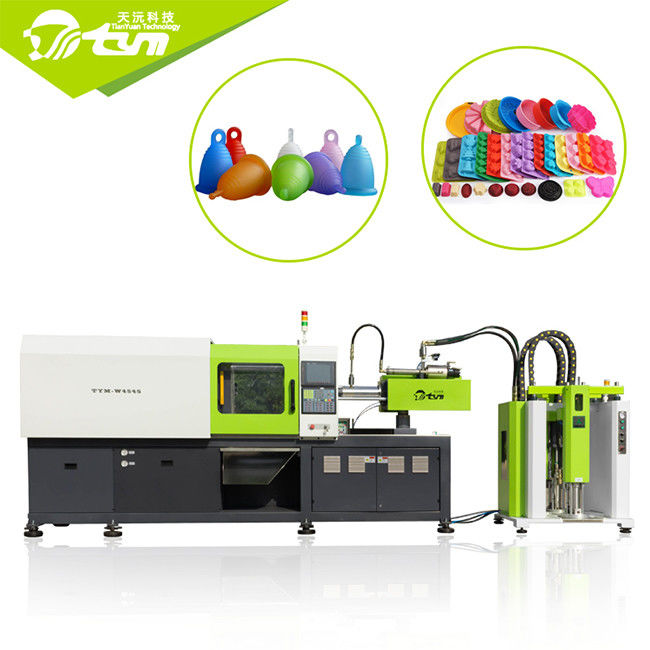

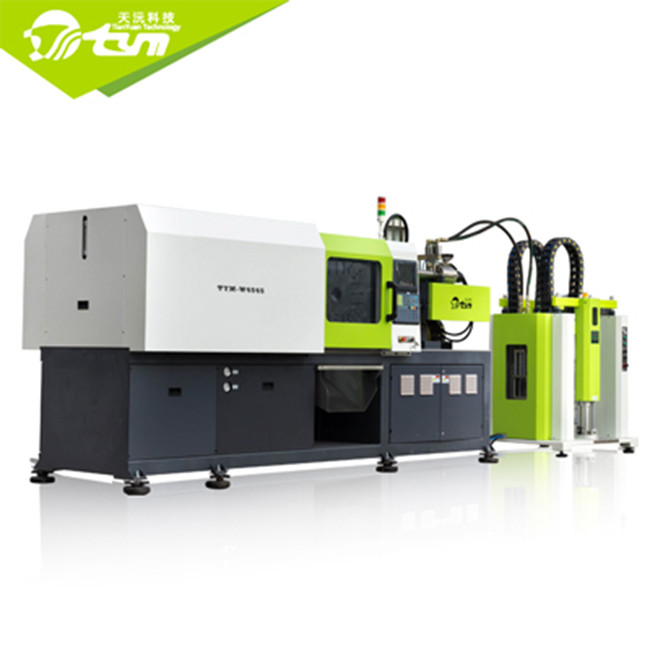

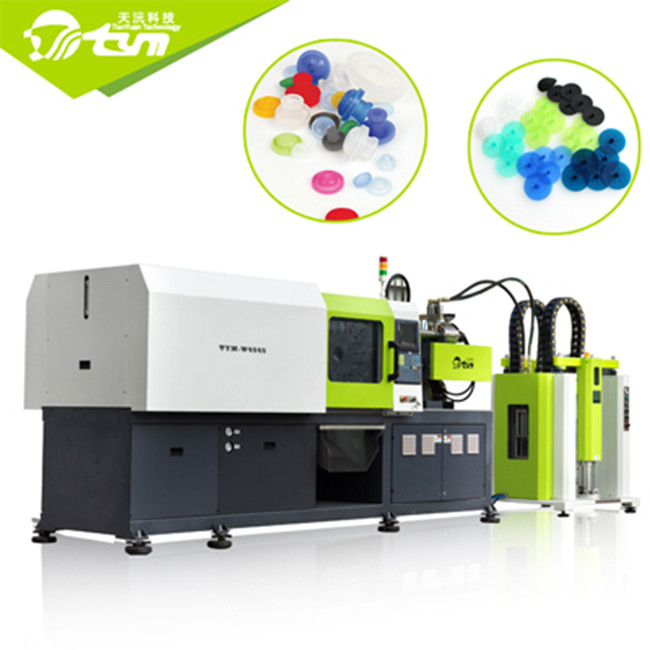

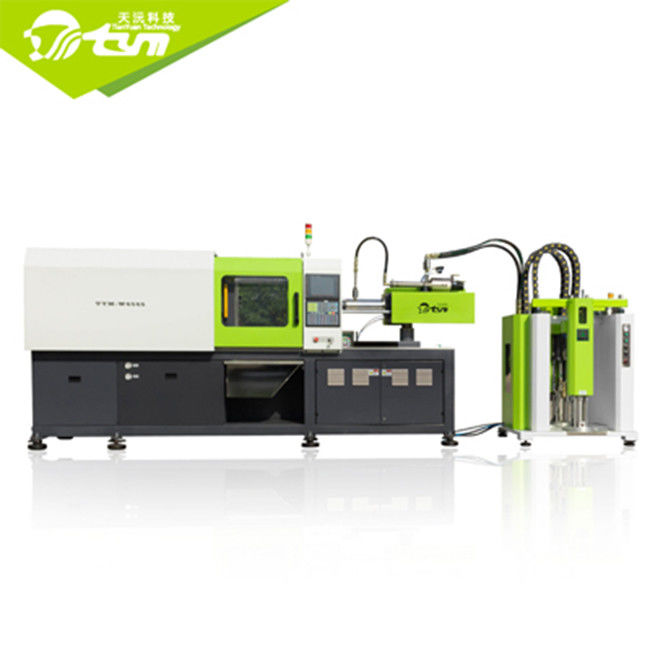

Horizontal Liquid Silicone Rubber (LSR) Injection Molding Machine-TYM-W4545
Direct pressure mould opening and closing system, horizontal injection structure, it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.
The Horizontal LSR machine for the applicable scope:
* Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
* Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
* Silicone high-voltage cable accessories,
* Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
* Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
* Silicone baking tool, cake mold, chocolate mold etc.
Mechanical Characteristics for TYM-W4545
TYM-W4545 Horizontal LSR injection molding machine | |
Injection Unit | |
Shot Volume | 165 g |
Injection Rate | 30 g/s |
Injection Pressure | 19.6 T |
Clamping Unit | |
Clamping Force | 130 T |
Opening Stroke | 200-700 mm |
Tie-Bars Space | 450*450mm |
Ejection Force | 7.8 T |
Ejection Stroke | 150 mm |
Others | |
Pump Pressure | 21 Mpa |
Motor Power | 11KW |
Heater Power | 9 KW |
Mould Orientation Ring Diameter | Φ 100 mm |
Machine Weight | 5.2T |
Machine Dimension | 4.0*1.2*2.0 m |
LSR feeding machine Dimension | 1.2*1.2*2.0m |
LSR injection molding industry application
Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.
Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.
Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.
Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.
Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.
Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.
About TYM Company- LSR injection molding machine manufactuere
