Automated Silicone O Ring Making Machine , 11kw Hydraulic Injection Moulding Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : seaworthy packing Delivery Time : 35 work-days
Payment Terms : T/T, L/C Supply Ability : 50 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-W5050

Detail Information

LSR Injection Molding Machine: Automated LSR Injection Molding Machine For Silicone O-ring Seal Horizontal: Horizontal LSR Injection Machine
Useful: LSR Machine For Silicone Auto Parts After-sales Service Provided: Engineers Available To Service Machinery Overseas
Style: Horizontal,liquid Silicone Rubber Vertical Injection Moulding Machine Plastic Type: Liquid Silicone
Automatic: Fully Automatic Or Manual Warranty: 1 Year
Power(w): 11kw Machine Type: Hydraulic
High Light:

small injection molding machine

,

low pressure molding machine

Product Description

Automated LSR Injection Molding Machine for Silicone O-ring Seal



TYM Produce Horizontal LSR Injection Molding Machine for silicone O-ring, selaing, gasket, valve, cooperate with manipulator to realize full automatic production.



Horizontal Liquid Silicone Rubber (LSR) Injection Molding Machine-TYM-W5050

Direct pressure mould opening and closing system, horizontal injection structure, it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.



The Horizontal LSR machine for the applicable scope:

* Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.

* Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.

* Silicone high-voltage cable accessories,

* Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.

* Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.

* Silicone baking tool, cake mold, chocolate mold etc.

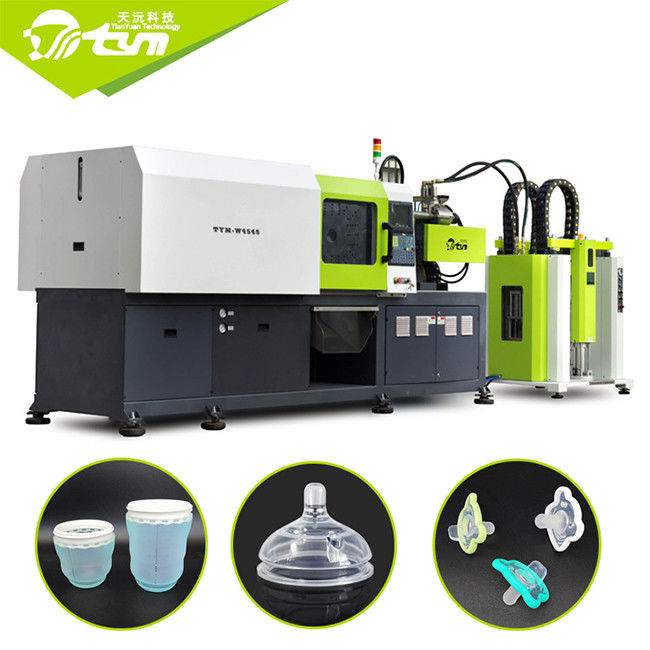

Automated Silicone O Ring Making Machine , 11kw Hydraulic Injection Moulding Machine 0

Mechanical Characteristics for TYM-W5050

TYM-W5050Horizontal LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 150 T
Opening Stroke 200-700 mm
Tie-Bars Space 500*500mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 11KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 5.2T
Machine Dimension 4.0*1.2*2.0 m
LSR feeding machine Dimension 1.2*1.2*2.0m

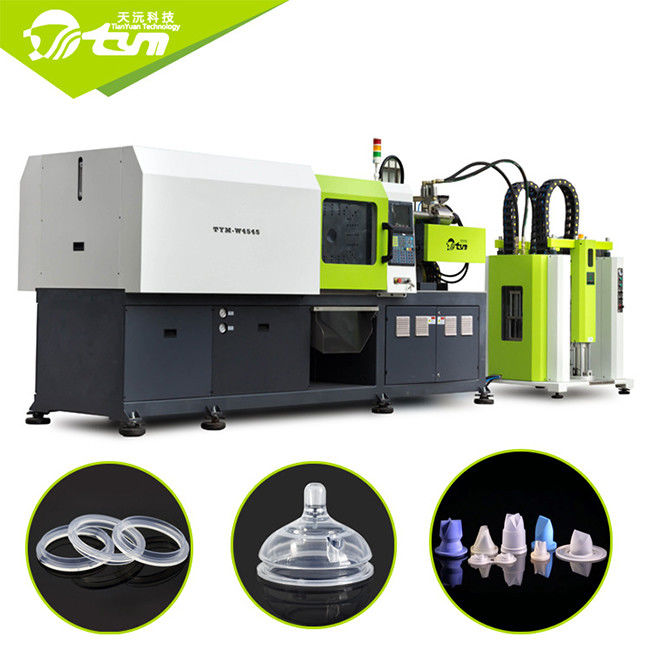

Automated Silicone O Ring Making Machine , 11kw Hydraulic Injection Moulding Machine 1

LSR injection molding industry application

Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.



Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.



Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.



Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.



Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.



Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.

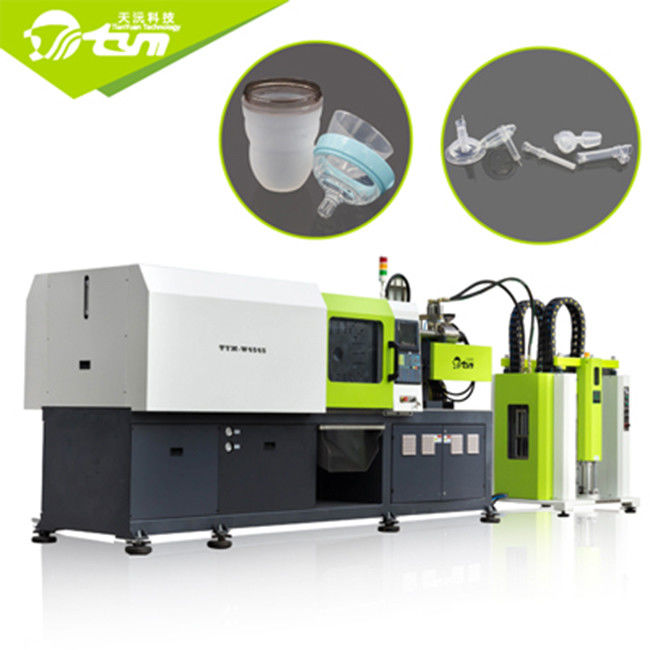

Automated Silicone O Ring Making Machine , 11kw Hydraulic Injection Moulding Machine 2



About TYM Company- LSR injection molding machine manufactuere
