Silicone Menstrual Cup Manufacturing Machine Clamping Force 130 Ton
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
| Minimum Order Quantity : | 1 set | Price : | USD46999-49999/set |
|---|---|---|---|
| Packaging Details : | Film package | Delivery Time : | 30 days |
| Payment Terms : | L/C, D/P, T/T | Supply Ability : | 100 sets/month |
| Place of Origin: | China | Brand Name: | TYM |
|---|---|---|---|
| Certification: | CE | Model Number: | TYM-W4545 |
|
Detail Information |
|||
| Products Name: | 4 Cavities 4.1x1.6x2.0m Menstrual Cup Manufacturing Machine | Shot Volume: | 165g |
|---|---|---|---|
| Clamping Force: | 130T | Openning Stroke: | 200-700mm |
| Tie-bar Space: | 450x450mm | Motor Power: | 12.1KW |
| Machine Weight: | 3.5T | Machine Dimension: | 4.1x1.6x2.0m |
| High Light: | menstrual cup making machine,injection moulding equipment |
||
Product Description

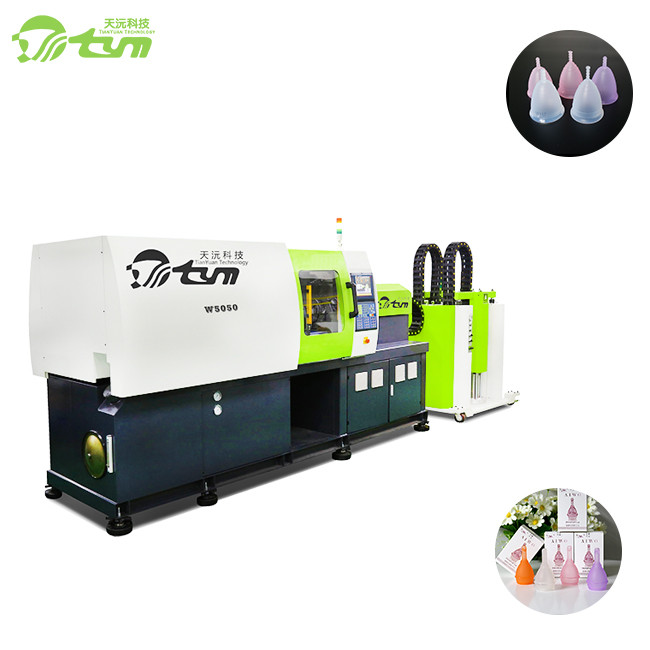

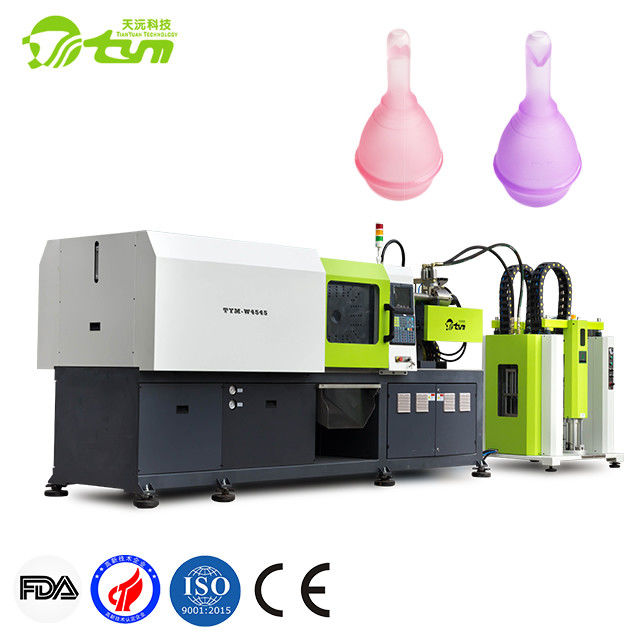

4 Cavities 4.1x1.6x2.0m Menstrual Cup Manufacturing Machine
The other style horizontal lsr machine
| ITEM | DESCRIPTION | UNIT | TYM-W4545 | TYM-W5050 | TYM-W5555 |
| Injection Unit | Shot Volume | g | 165 | 300 | 300 |
| Injection Rate | g/s | 30 | 30 | 30 | |
| Injection Pressure | Kg/cm2 | 700 | 700 | 700 | |
| Clamping Unit | Clamping Force | T | 130 | 150 | 160 |
| Opening Stroke | mm | 200-700 | 200-700 | 200-700 | |
| Tie-Bars Space | mm | 450*450 | 500*500 | 550*550 | |
| Ejection Force | T | 4.3 | 4.3 | 4.3 | |
| Ejection Stroke | mm | 150 | 150 | 150 | |
| Pump Pressure | Mpa | 21 | 21 | 21 | |
| Others | Motor Power | KW | 12.1 | 12.1 | 12.1 |
| Machine Weight | T | 5.2 | 5.3 | 5.6 | |
| Machine Dimension | m | 4.0*1.2*1.9 | 4.2*1.4*1.9 | 4.5*1.6*2.0 |
About LSR
For horizontal lsr injection molding machine is suitable for producing lsr parts which can be blowing out automatically. Such as baby bottle, baby nipple, baby soother and so on. All of them can be produced automatically which improve the production efficiency.
About Service:
|
The professional service from TYM |
|
| Pre -sale service |
* Provide investment budget and plant planning; * Provide a whole set of solutions about machine and mold according to products that customers offered. |
| On-sales service | Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory. |
| After-sales service |
* Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems; * After product upgrading, the upgrading work of previous users shall be given priority as required; |
About Machine.
1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.
2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.
4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.
5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.
6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.
7) Precise cold runner LSR mould, which can make the LSR product producing with higher-quality, higher efficiency, longer life, save more production cost.
The Horizontal LSR machine for the applicable scope:
1) Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
2) Liquid silicone medical part, as like the capsule, protective mast, catheter, balloon, medical belt etc.
3) Silicone high-voltage cable accessories,
4) Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
5) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
6) Silicone baking tool, cake mold, chocolate mold etc.
Welcome to consult and visit us.
