High Speed Liquid Silicone Injection Molding Machine For Double Color Watch Strap
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
|Minimum Order Quantity :||1 set||Price :||Negotiation|
|Packaging Details :||Plywood box||Delivery Time :||60 work days|
|Supply Ability :||10 sets / month|
|Place of Origin:||CHINA||Brand Name:||TYM|
|Certification:||CE, ISO||Model Number:||TYM-L3140|
|Double Colour Injection Moulding Machine:||Engine Of Double Colour Injection Moulding Machine For Double Color Spoon||Clamping Force:||240T|
|Shot Volume:||165*2 G||Opening Stroke:||200-500MM|
|Injection Rate:||30g/s||Injection Pressure:||700kg/c㎡|
|Ejection Force:||4.3T||Motor Power:||12.1KW|
two color injection molding machine,
double shot injection molding
Engine of Double Colour Injection Moulding Machine for Double Color Spoon

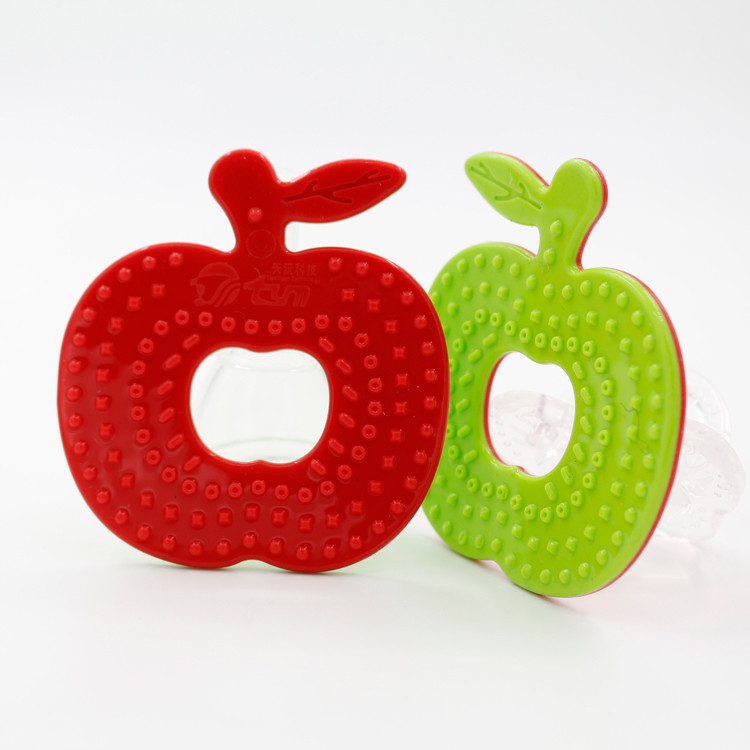

TYM Double Colour Injection Moulding Machine with two injection unit, two separate feed systems, our Double Colour Injection Moulding Machine can manufacture many kinds of double color products, such as double color spoon, double color teether and so on.
TYM was established in 2002, 33000㎡ manufacture base, two wholly owned subsidiaries.
TYM is the earliest manufacturer of liquid silicone injection molding solutions in China.
TYM has more than 50 patents and had rated as a national high-tech enterprise in 2013.
TYM has a complete set of solutions from mold design, machine supply and training for the machine.
TYM has cooperated with the four major organic silicon manufacturers in the world for many years and has rich experience for liquid silicone application in various industries.
TYM is a well-known domestic factory which specialized in researching and developing LSR injection molding machine, LSR mold as well as the LSR products.
Our LSR injection machines have been widely used in medical industry, food industry, auto industry, infant industry, electronics industry, diving industry and so on, we had sold the machines as well as the products to more than 30 countries all over the world.
According to our professional skills and abundant production experiences in the LSR industry, we’re confident that we can start the LSR project for you smoothly.
TYM Show room:
TYM LSR mold workshop:
TYM company has an independent mold workshop since 2008, which owns engraving and milling machines, EDM, CNC , mirror sparking machines for manufacturing the LSR mold, which will ensure the mold production levels can meet customers' requirements.
LSR double color injection molding machine of model TYM-L3140:
The vertical double color 240T direct pressure LSR injection molding machine
|Shot Volume||165*2 g (can be adjusted)|
|Injection Rate||30 g/s|
|Opening Stroke||200-500 mm|
|Tie-Bars Pace||500*500mm * Φ 1400mm|
|Ejection Force||4.3 T|
|Ejection Stroke||150 mm|
|Motor Power||12.1 KW|
|Pump Pressure||21 Mpa|
|Machine Weight||9.7 T|
|Machine Dimension||3.2*2.1*4.0 M|
According to the customer’s investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving, will provide matched mold and select suitable machine according to customer’s requirement.
Enable to be familiar with the operation and maintenance of the TYM's machine.
1) Installation of LSR machine and new machine debugging service.
2) Machine operator training.
3) Training of technicians.
1) Free training for the operation and maintenance independently.
2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for the instruction and will provide the technical guidance for free.
3) TYM will give priority to customer when the system on the LSR machine need to be upgraded.
