150T 2.5x1.6x3.6m LSR Injection Molding Machine

Minimum Order Quantity : 1 set Price : USD48999-51999/set
Packaging Details : Film package Delivery Time : 30 days
Payment Terms : L/C, D/P, T/T Supply Ability : 100 sets/month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: TYM-L5058

Detail Information

Products Name: Automatic Producting LSR Injection Molding Machine Shot Volume: 300g
Clamping Force: 150T Openning Stroke: 250-550mm
Tie-bar Space: 500x580mm Motor Power: 12.1KW
Machine Weight: 3.9T Machine Dimension: 2.5x1.6x3.6m
High Light:

rotary table injection molding machine

,

low pressure molding machine

Product Description

Automatic Producting LSR Injection Molding Machine

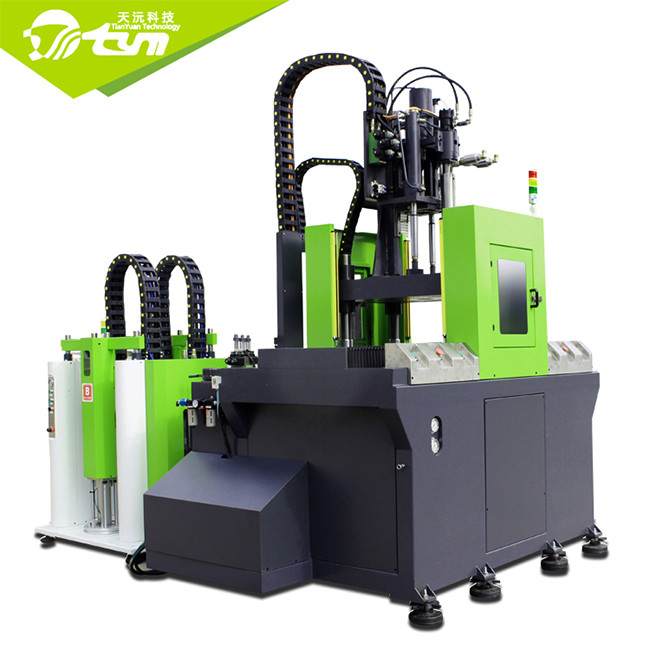

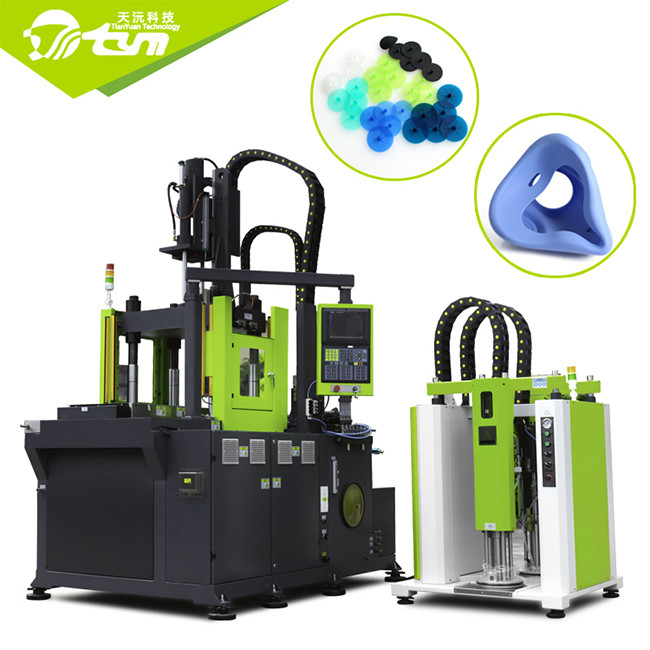

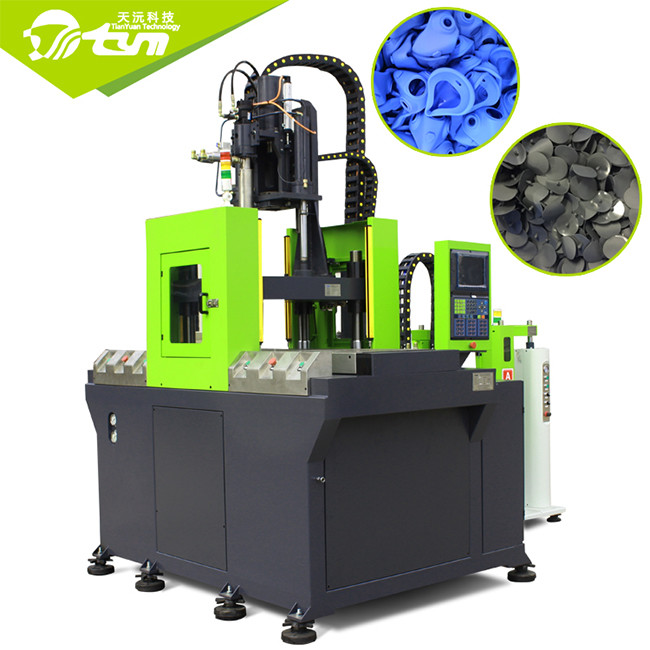

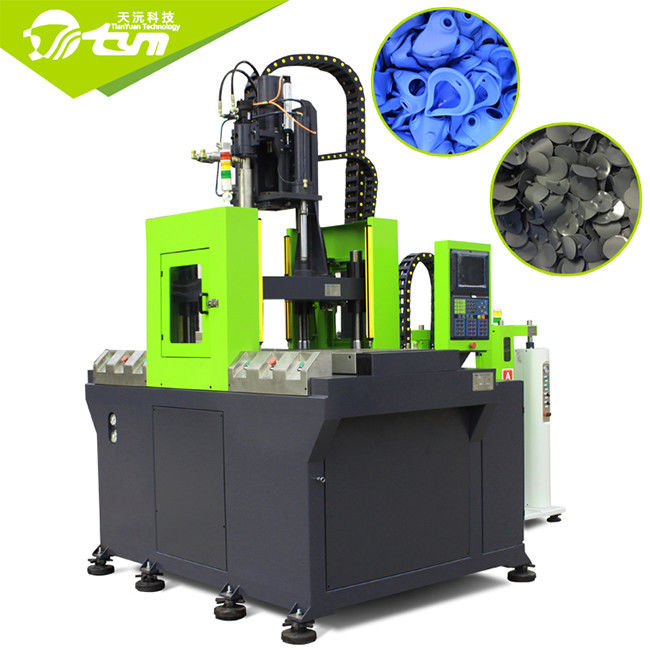

Vertical Liquid Silicone Rubber (LSR) injection molding machine

Vertical lsr injection molding machine is suitable for produce LSR parts which has inserts. So when we put the insert on the bottom moldboard, it won’t drop down.

Closing the mould downward, two kinds of models can be chose – single sliding board and double sliding board. For double sliding board LSR machine, one upper moldboard and two lower moldboards are installed, which improves the production efficiency.

The sliding out structure on the machine makes the production more conveniently and more safely.

150T 2.5x1.6x3.6m LSR Injection Molding Machine 0
About TYM
TYM LSR injection molding machine has exported Europe and USD and more than 30 countries in the world. And we give the professional service for over 18 years. Our business scope includes lsr material supplier recommend and lsr mold and lsr machine. And TYM machine has passed CE test and our factory has got ISO9001 certification.
150T 2.5x1.6x3.6m LSR Injection Molding Machine 1



About Machine advantages:
1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.
2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.
4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.
5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.
6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.

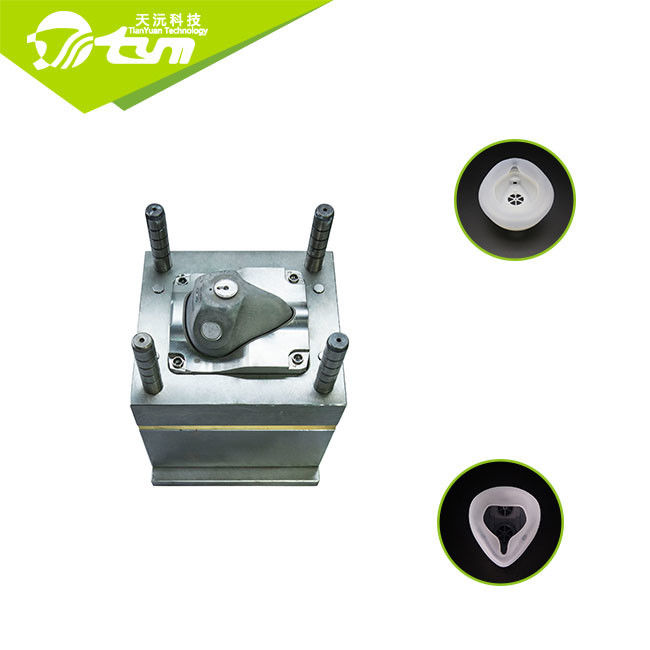

7) Precise cold runner LSR mould, which can make the LSR product producing with higher-quality, higher efficiency, longer life, save more production cost.



About Service:

Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the
production process!



The professional service from TYM

Pre -sale service

* Provide investment budget and plant planning;

* Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service

* Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;

* After product upgrading, the upgrading work of previous users shall be given priority as required;






Welcome to consult and visit us.
