Chinese Supplier LSR Injection Molding Machine For Medical Catheter
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
|Minimum Order Quantity :||1SET||Price :||USD35888~45888/SET|
|Packaging Details :||Packing in wooden cases||Delivery Time :||30~60 work days|
|Payment Terms :||T/T, L/C||Supply Ability :||1000SETS/Month|
|Place of Origin:||China||Brand Name:||TYM|
|Motor:||Servo Motor||Clamping Force:||130T|
|Motor Power:||12.1KW||Injection Pressure:||700KG/CM2|
|Color:||Green||DT:||30~60 Work Days|
rotary table injection molding machine,
low pressure molding machine

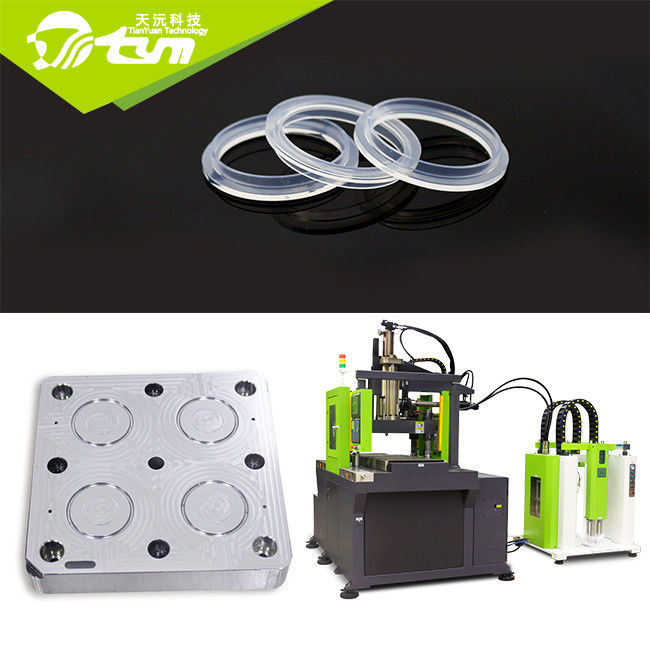

12kw Servo Motor Automatic Silicone Injection Molding Machine And Mold For Medical O Ring Medical Seal Parts Accessorie
Silicone has found widespread use for medical products ,such as medical O ring , seal parts , medical accessories , medical catheter , medical oxygen mask , medical laryngeal airway mask ,negetive pressure balloon ...
Among the most tested biomaterials, silicones are increasingly desired based on their unique combination of biocompatibility and performance properties:
TYM Horizontal injection molding machine w4545 was designed for silicone O ring automatic production .TYM Horizontal Liquid Silicone Rubber (LSR) injection molding machine can meet the automatic production without robot arm which can reduce your cost .
Direct pressure mould opening and closing system, horizontal injection structure on horizontal machine , it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.
Also vertical injection molding machine L5058 can meet your needs too. Want to know choose which machine , show the picture or drawing to me to advise.
The main feature of the horizontal LSR molding machine:
1. Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.
2. Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
3. Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.
4. Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.
5. Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.
6. Self- research pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.
7. Pecise cold runner LSR mould, which can make the LSR product producing with higher-quality, higher efficiency, longer life, save more production cost.
With TYM digital control color pump , it can meet multi color production of baby teether and pacifier .
Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
Mechanical Characteristics for TYM-W4545
|TYM-W4545 Horizontal LSR injection molding machine|
|Shot Volume||165 g|
|Injection Rate||30 g/s|
|Injection Pressure||19.6 T|
|Clamping Force||130 T|
|Opening Stroke||200-700 mm|
|Ejection Force||7.8 T|
|Ejection Stroke||150 mm|
|Pump Pressure||21 Mpa|
|Heater Power||9 KW|
|Mould Orientation Ring Diameter||Φ 100 mm|
The Horizontal LSR machine for the applicable scope:
* Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
* Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
* Silicone high-voltage cable accessories,
* Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
* Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
* Silicone baking tool, cake mold, chocolate mold etc.
According to customer's investment budget, plant planning and other forms of pre-sales services to ensure customer's planning is reasonable, standardized and cost-saving and provide matched mold scheme and recommend suitable machine according to customer's product.
Enable the relevant personnel to be familiar with the operation of the TYM's machinery and understanding the machine maintenance.
1) Installation of LSR machine and new machine commissioning service
2) Machine operator training
3) Training of relevant technicians
1) Free training till relevant personnel is able to operate and maintain independently
2) Help to solve and reply technical problem and question timely, TYM will arrange professional engineer for site instruction
3) TYM will provide technical guidance for free if customer need new equipment or expand(rebuild)
4) TYM will give priority to customer according to customer's upgraded demand when TYM's equipment is upgraded.
