12kw Servo Motor Automatic Silicone Injection Molding Machine For Baby Feeder Bottle

Minimum Order Quantity : 1SET Price : USD35888~45888/SET
Packaging Details : Packing in wooden cases Delivery Time : 30~60 work days
Payment Terms : T/T, L/C Supply Ability : 1000SETS/Month
Place of Origin: China Brand Name: TYM
Certification: CE Model Number: W4545

Detail Information

Motor: Servo Motor Clamping Force: 130T
Motor Power: 12.1KW Injection Pressure: 700KG/CM2
Color: Green DT: 30~60 Work Days
High Light:

rotary table injection molding machine

,

low pressure molding machine

Product Description

12kw Servo Motor High Efficiency Automatic Silicone Injection Molding Machine For Baby Feeder Bottle Baby Nipple



Silicone has found widespread use in baby feeding products ,medical, automotive, aerospace, electrical, construction, and industrial applications.



Among the most tested biomaterials, silicones are increasingly desired based on their unique combination of biocompatibility and performance properties:

  • Chemically inert, odorless, tasteless, and stainless
  • Bacterial resistant and easy to clean and sterilize
  • Biocompatible and short/long-term implantable
  • Lubricious for less invasive biological applications
  • Temperature flexible – 180°F to 600°F
  • Fatigue and compression set resistant
  • Chemical resistant
  • Elongatable – 100 – 900%
  • Dielectric with superior insulating characteristics

TYM Horizontal Liquid Silicone Rubber (LSR) injection molding machine was designed for baby feeding products like baby bottle baby nipple , pacifier , teether ,spoon , bowl ...TYM Horizontal Liquid Silicone Rubber (LSR) injection molding machine can meet the automatic production without robot arm which can reduce your cost .


Direct pressure mould opening and closing system, horizontal injection structure on horizontal machine ,  it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.

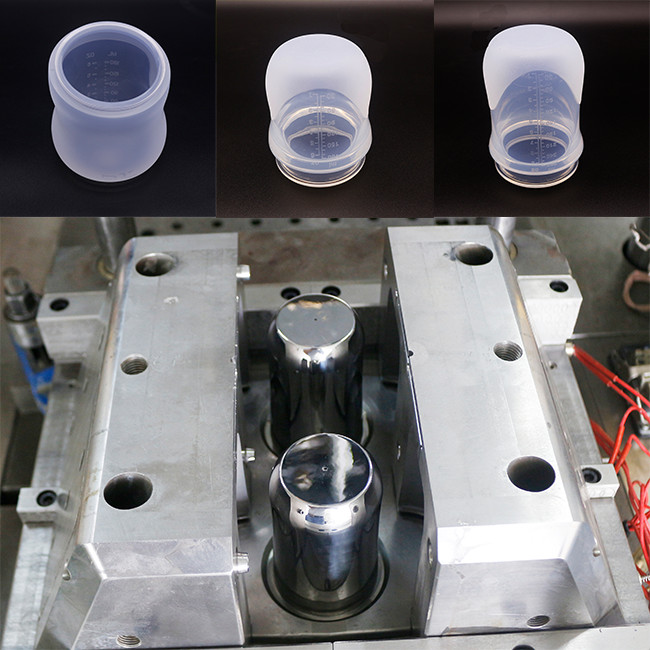

12kw Servo Motor Automatic Silicone Injection Molding Machine For Baby Feeder Bottle 0

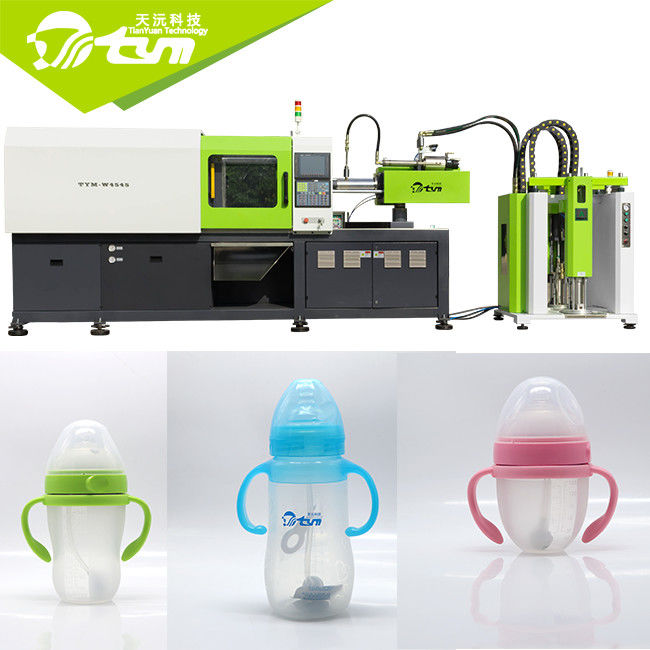

12kw Servo Motor Automatic Silicone Injection Molding Machine For Baby Feeder Bottle 1

The main feature of the horizontal LSR molding machine:

A.Newly-optimized integrated all-in-one design.

B. Meet multiple requirements on the automatic manufacturing technique for LSR products.

C. Shorter the mould closing and opening time, improve the production efficiency.

D. Remote control function.

E. Multi-section mould closing and opening and injection, speed adjusting stepless.

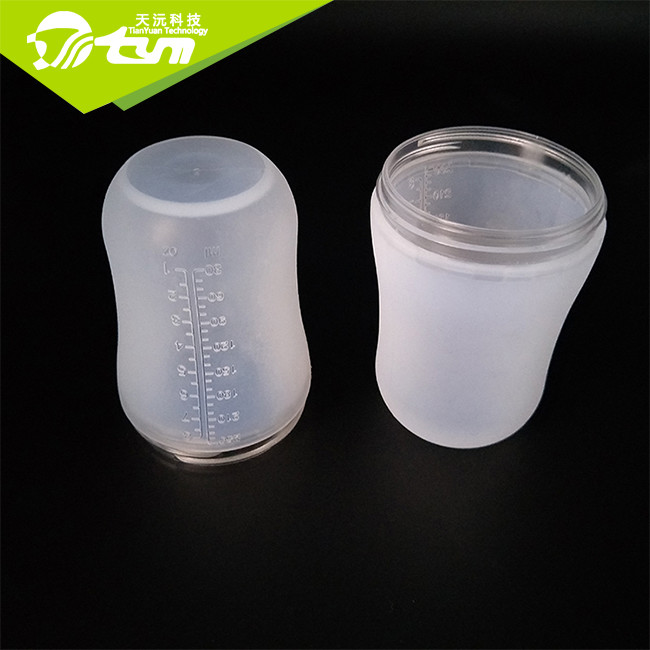

12kw Servo Motor Automatic Silicone Injection Molding Machine For Baby Feeder Bottle 2

With TYM digital control color pump , it can meet multi color production of baby products .

Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.





Mechanical Characteristics for TYM-W4545

TYM-W4545 Horizontal LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 130 T
Opening Stroke 200-700 mm
Tie-Bars Space 450*450mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 11KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 5.2T



The Horizontal LSR machine for the applicable scope:

* Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.

* Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.

* Silicone high-voltage cable accessories,

* Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.

* Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.

* Silicone baking tool, cake mold, chocolate mold etc.

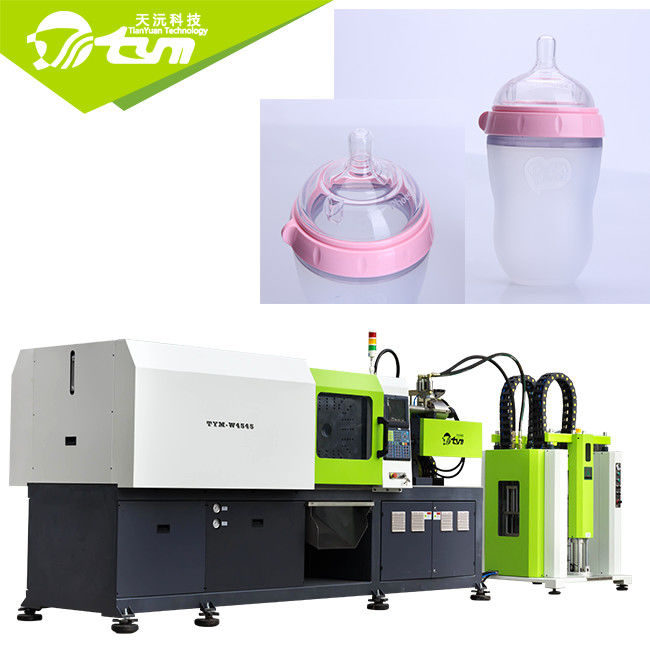

12kw Servo Motor Automatic Silicone Injection Molding Machine For Baby Feeder Bottle 3
